IMX378-190 Fisheye Lens Camera for Raspberry Pi 12.3MP

  • 799 kr

MX378-190 Fisheye Lens Camera For Raspberry Pi, 12.3MP, Wider Field Of ViewIMX378-190 Fisheye Lens Camera12.3MP, Fisheye, 190°FOVCompatible with Raspberry Pi se

I lager.
Lagersaldo: 2
Artikelnummer: 1128
Dela

MX378-190 Fisheye Lens Camera For Raspberry Pi, 12.3MP, Wider Field Of View

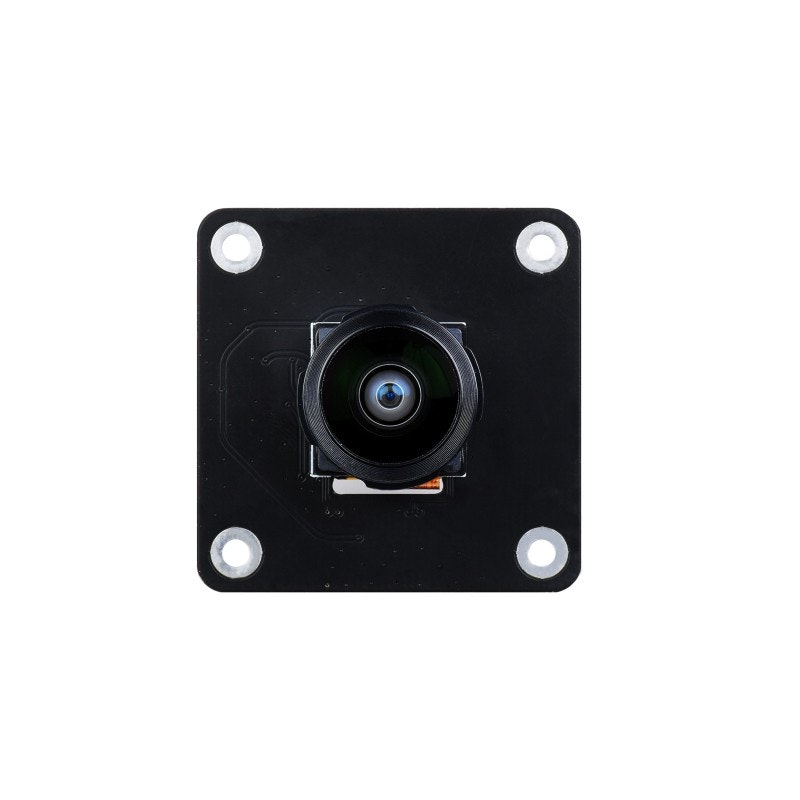

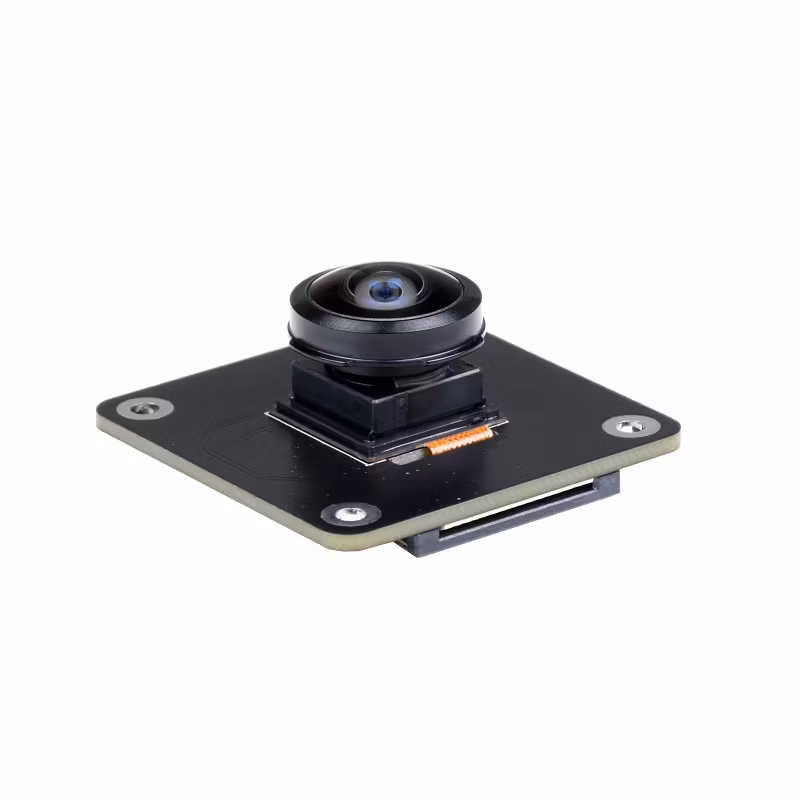

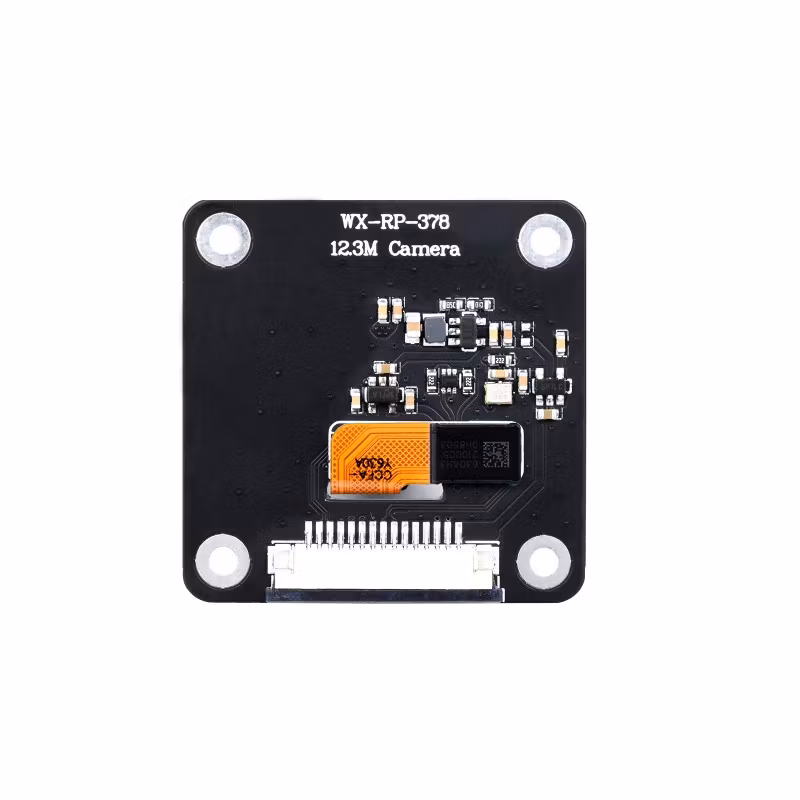

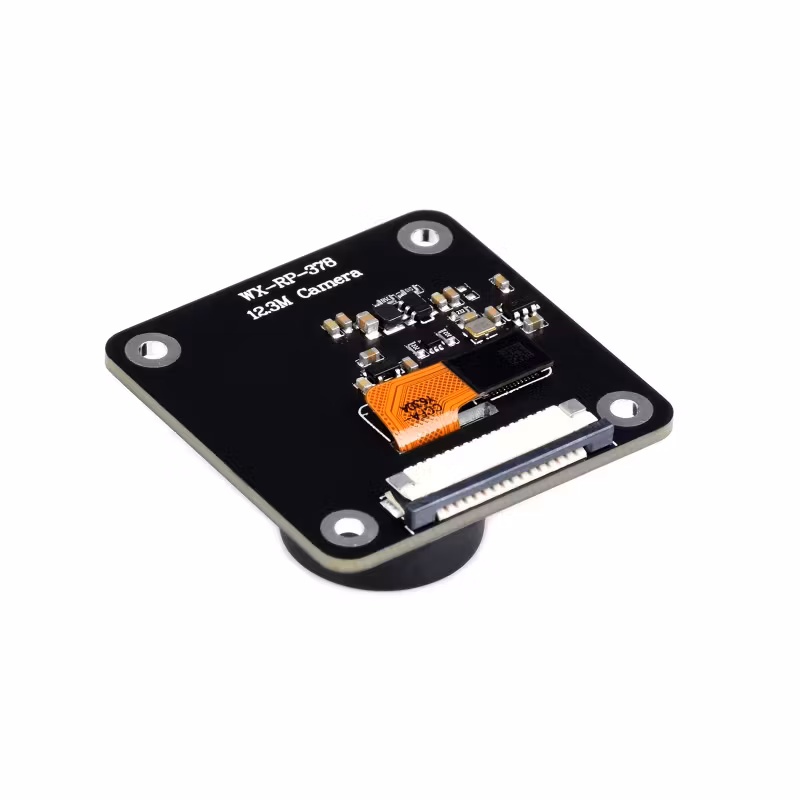

IMX378-190 Fisheye Lens Camera

12.3MP, Fisheye, 190°FOV

Compatible with Raspberry Pi series boards



Device Support



Raspberry Pi series

Supports 4B / 3B+ / 3A+ / Zero / Zero 2 W,
and CM3/3+/4 (extra adapter board required)

Specifications

SENSORIMX378CMOS SIZE1/2.3 inch
CAMERA TYPEcolorPIXELS12.3MP (4056 × 3040)
SHUTTERRolling ShutterAPERTUREF2.4
DISTORTION< 58%FIELD OF VIEW190°
FOCAL LENGTH6.5mmFOCUSINGfixed focus distance

High Definition, Wide Angle

12.3MP HD, More Clear Imaging
190° Wide Angle Fisheye Lens, Cover All In Sight

Working With Raspberry Pi

Direct Connect To Raspberry Pi Different Variants Including 4B/3B+/3A+/3B/2B/B+/A+,
Extra FPC Cable Is Required For Zero / Zero 2 W Series

* for reference only, Raspberry Pi and yellow FPC are NOT included.

Outline Dimensions

Wiki: IMX378-190_12.3MP_Camera

Shipping list

Weight: 0.018 kg

  1. IMX378-190 12.3MP Camera x1
  2. 15-pin FFC (opposite sides contact) x1
