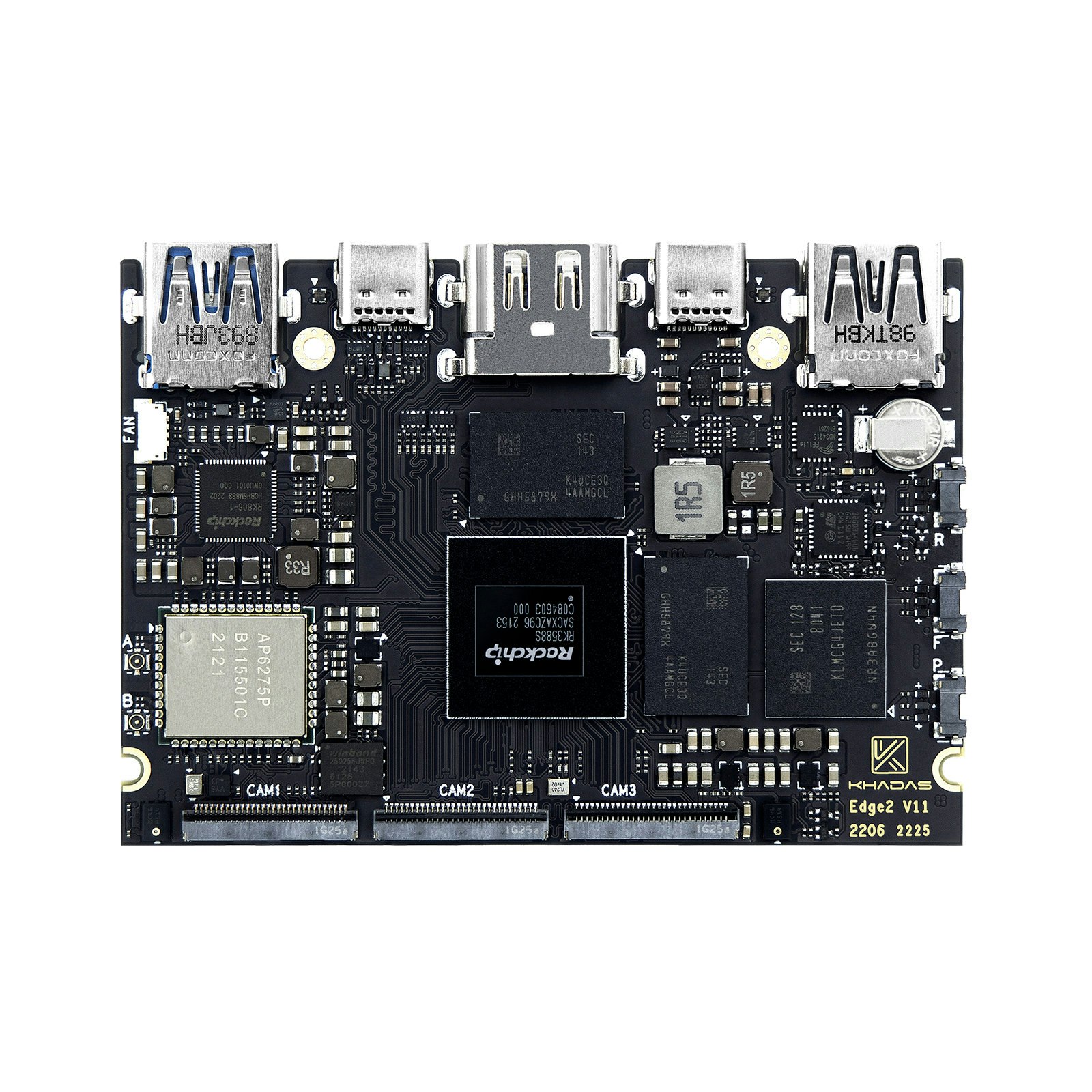

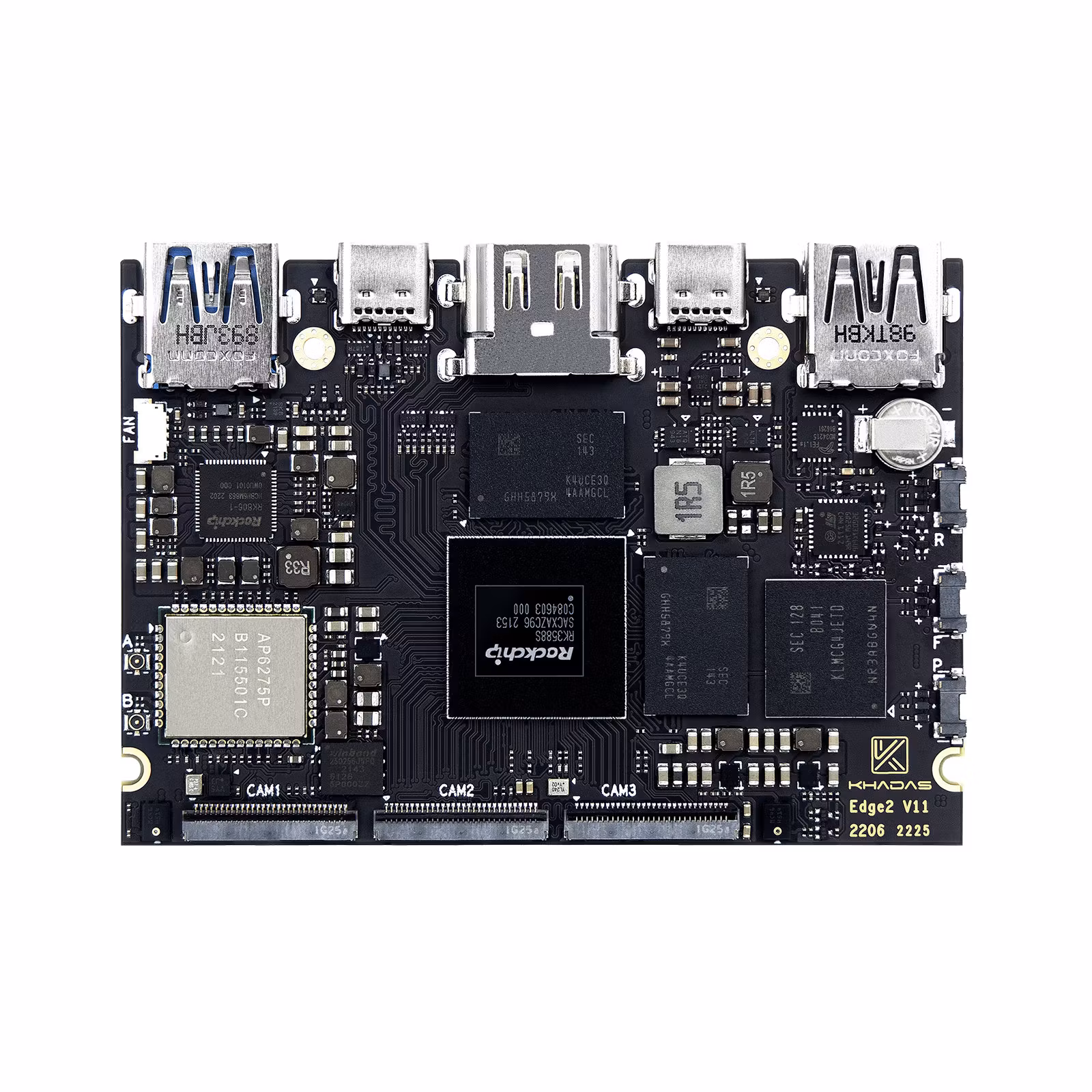

Edge2 Rockchip RK3588S ARM PC with 6 Tops NPU & 8K Display. Edge2 Pro: 16GB LPDDR4X 2112MHz, 64-bit and 64GB eMMC 5.1. Edge2 is powered by the RK3588S, a next generation 8-core 64-bit SoC from Rockchip. The RK3588S is Rockchip's newest flagship IoT SoC utilizing the 8 nanometer lithography process. As a result, power consumption is similar to the RK3399, yet we have achieved an overall performance boost up to 2.5 times.
This is a new product. Please ask us to order..
- High-performance Rockchip RK3588S SoC, 8nm lithography process.
- 2.25GHz Quad Core ARM Cortex-A76 + 1.8GHz Quad Core Cortex-A55.
- Integrated ARM Mali-G610 MP4 quad-core GPU up to 1GHz.
- Built-in 6 TOPS Performance NPU.
- PCI-e Ampak AP6275P 2T2R Wi-Fi 6 module.
- Built-in OOWOW embedded service
- 8K60 display and 8K decoding.
- Maker Friendly
Edge2 Maker Kit includes additional I/O access via FPC/VIN headers integrated into the PCBA
- x1 USB 3.1
- x1 USB 2.0
- x1 USB-C PD (Power Deliver) Only
- x1 USB-C3.1 + PD + DP 1.4
- x1 HDMI2.1 Type-A
- x1 30-pin 0.5mm MIPI-DSI Interface
- x1 40-pin 0.5mm MIPI-DSI Interface
- x3 30-pin 0.5mm MIPI-CSI Interface
- x2 30-pin 0.5mm FPC Connector
- x1 7-pin Pogo Pads(USB, UART, 5V)
- Edge Heatsink
- 3705 Cooling Fan
- Edge2 Active Cooling Kit
- Edge2 DIY Case (coming soon)
- USB-C 30W Adapter (White)
- USB-C 24W Adapter (White)
- USB-C Cable (White, Male to male)
- HDMI Cable
- Edge2 IO (coming soon) Edge2 Maker Kit includes additional I/O access via FPC/VIN headers integrated into the PCBA
What's in the Box (Maker Kit):
- 1x Edge2 PCBA Board
- 2x Antenna
- 1x User Manual
- 1x Warranty Card
