Raspberry Pi 5 Kit including pi 5

Raspberry Pi 5 Kit, Options For Kits And 4GB/8GB RAM, BCM2712 Processor, 2.4GHz Quad-Core 64-Bit Arm Cortex-A76 CPU, Built Using RP1 I/O Controller Designed By Raspberry Pi.

Raspberry Pi 5

The latest generation of Raspberry Pi: the everything computer

Built Using RP1 I/O Controller Designed By Raspberry Pi

Memory Options

PI5 Starter Kit

This kit includes Raspberry Pi 5 4GB/8GB (optional), equipped with an active cooler, 27W power supply, 64GB TF card, card reader, HDMI to Micro HDMI cable, Ethernet cable and clear Acrylic case, to get users started with Raspberry Pi 5 quickly.

Board Specifications

Raspberry Pi 5 is the latest generation flagship product in the Raspberry Pi series, following the success of the Raspberry Pi 4. It provides a 2-3x increase in CPU performance over the previous generation. Onboard dual CSI/DSI ports and USB connectors which are provided by the Raspberry Pi RP1 I/O controller. And this is the first Raspberry Pi computer using silicon built in-house at Raspberry Pi.

Key features include:

• 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU, 512KB per-core L2 caches and a 2MB shared L3 cache
• VideoCore VII GPU @800MHz, supporting OpenGL ES 3.1, Vulkan 1.2
• Dual 4Kp60 HDMI® display output
• 4Kp60 HEVC decoder
• LPDDR4X-4267 SDRAM (options for 4GB/8GB)
• 2.4GHz/5GHz dual-band 802.11ac Wi-Fi®
• Bluetooth 5.0 / Bluetooth Low Energy (BLE)
• TF card slot, with support for high-speed SDR104 mode
• 2 × USB 3.0 ports, supporting simultaneous 5Gbps operation
• Gigabit Ethernet, with PoE+ support (requires separate PoE+ HAT)
• 2 × 4-lane MIPI DSI/CSI port
• PCIe 2.0 x1 interface for fast peripherals (requires separate M.2 HAT or other adapter)
• 5V/5A DC power via USB-C, with Power Delivery support
• Raspberry Pi standard 40-pin header
• Real-time clock (RTC), powered from external battery (not included)
• Onboard power button for power on/off without disconnecting power adapter.

RP1 is the I/O controller designed for Raspberry Pi 5, provides two USB 3.0 and two USB 2.0 interfaces; a Gigabit Ethernet controller; two four-lane MIPI transceivers for camera and display; analogue video output; 3.3V general-purpose I/O (GPIO); and the usual collection of GPIO-multiplexed low-speed interfaces (UART, SPI, I2C, I2S, and PWM). A four-lane PCI Express 2.0 interface provides a 16Gb/s link back to BCM2712.

New Chipset

Three New Chips Designed For Raspberry Pi 5 Deliver A Step Change In Performance

BCM2712 is a new quad-core 64-bit Arm Cortex-A76 processor from Broadcom, clocked at 2.4GHz, with 512KB per-core L2 caches, and a 2MB shared L3 cache. Cortex-A76 is three microarchitectural generations beyond Cortex-A72, a better manufacturing process makes a faster Raspberry Pi 5 with lower power consumption.

An updated VideoCore hardware video scaler (HVS) is capable of driving two simultaneous 4Kp60 HDMI displays, up from single 4Kp60 or dual 4Kp30 on Raspberry Pi 4.

Updated Layout

2 × 4-lane MIPI DSI/CSI port, compatible with CSI-2 camera and DSI display

Adapting PCIe 2.0 interface via FPC connector, supports high-speed peripherals

Onboard power button for power on/off without disconnecting power adapter

Onboard RTC battery header for connecting external battery (the battery is not included)

Onboard fan header, compatible with Active Cooler for Raspberry Pi 5

Onboard UART header designed for Raspberry Pi Debug probe

Memory indication markers for easy board RAM identification

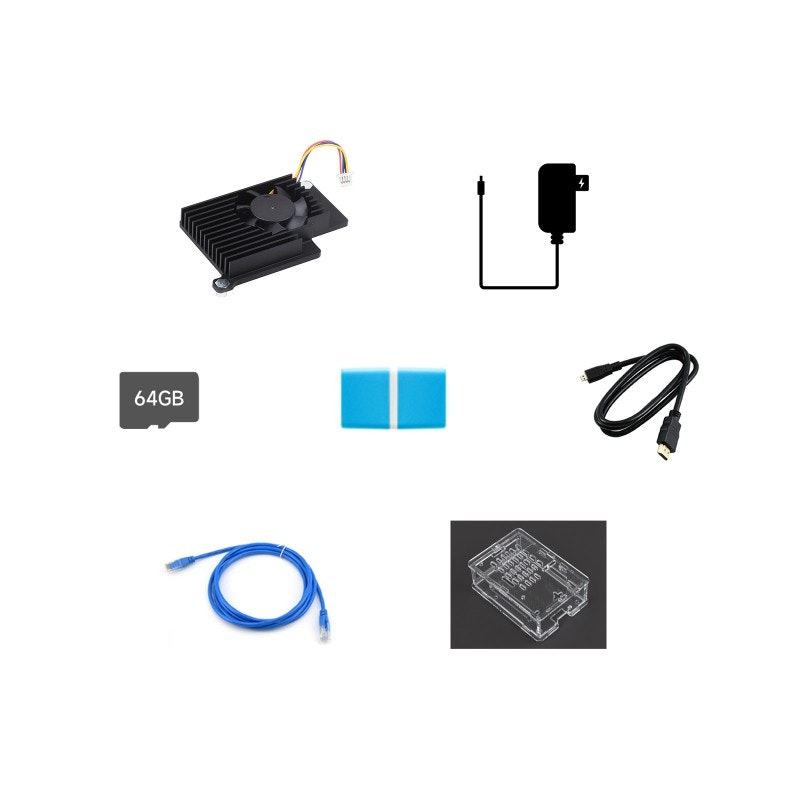

Shippings list

Weight: 0.181 kg

PI5 4GB/8GB Starter Kit

1. OPTIONS Raspberry Pi 5 ×1

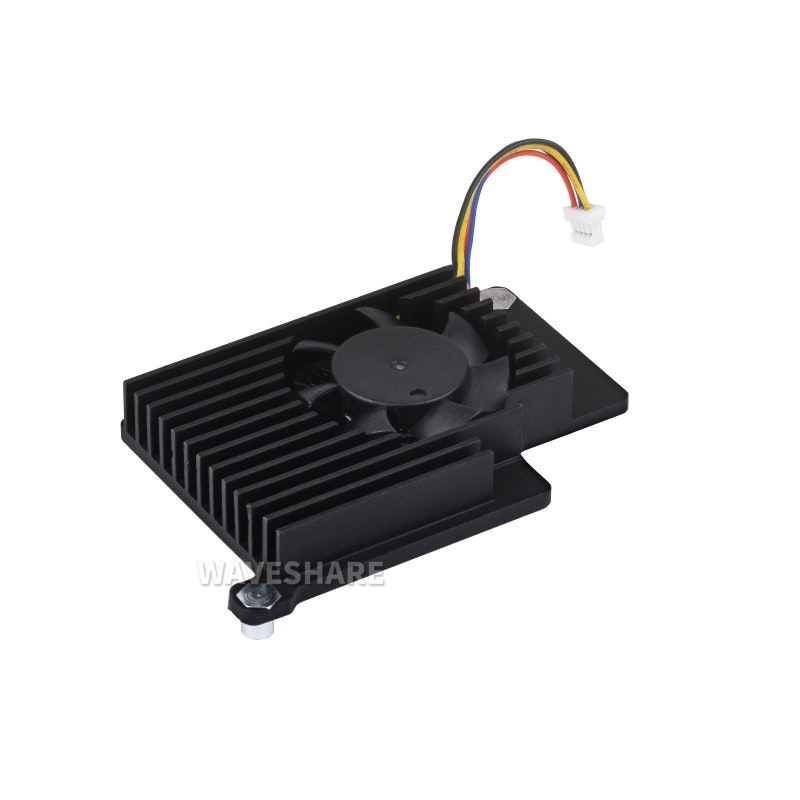

2. Pi5-Active-Cooler-A ×1
3. OPTIONS 27W power supply x1
4. TF card 64GB ×1
5. TF card reader ×1
6. HDMI to Micro HDMI cable ~1m ×1
7. Ethernet cable ~1.5m ×1

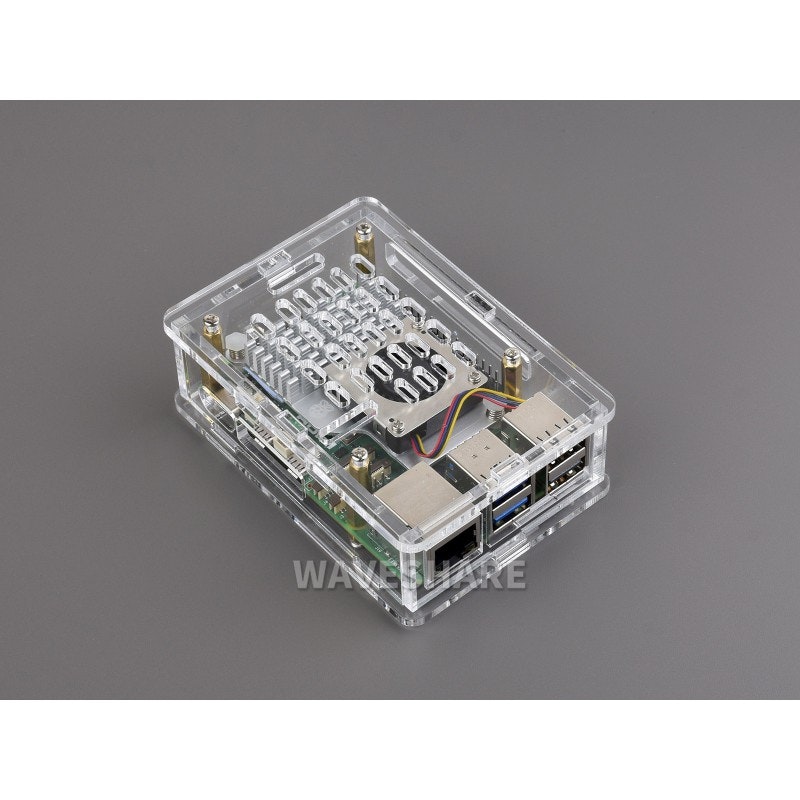

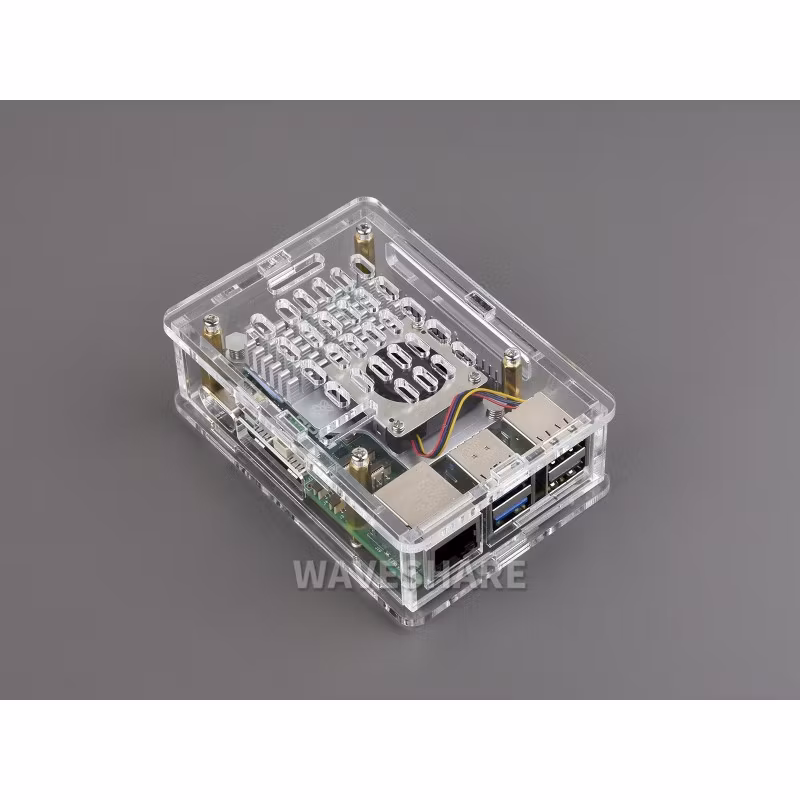

8. PI5-CASE-F ×1
