Khadas VIM4

  • 2 999 kr

8GB LPDDR4X 2016MHz, 64bit RAM for memory intensive software applications. 2.2GHz Quad core ARM Cortex-A73 and 2.0GHz Quad core Cortex-A53 CPU, with 32-bit

I lager.
Lagersaldo: 2
Artikelnummer: 1158VIM4
Dela

8GB LPDDR4X 2016MHz, 64bit RAM for memory intensive software applications. 2.2GHz Quad core ARM Cortex-A73 and 2.0GHz Quad core Cortex-A53 CPU, with 32-bit STM32G031K6 microprocessor.  Mali G52MP8(8EE) 800Mhz GPU, supports 4K UI, 8K 24fps decoder, H.264 and H.265 encoding at 4K 50fps,

multi-video decoder up to [email protected] + [email protected]

OOWOW is a standalone embedded service for seamless online OS delivery, device maintenance, and much more! OOWOW is developed and maintained by Khadas Team. VIM4 is the first Khadas single board computer to have OOWOW embedded inside.

Make system installation much easier with OOWOW. You can download and install your preferred OS directly from the Cloud. OOWOW will start automatically if the device storage is empty. With OOWOW you will always be in control of your VIM4.

More information: https://docs.khadas.com/oowow

Key Features:

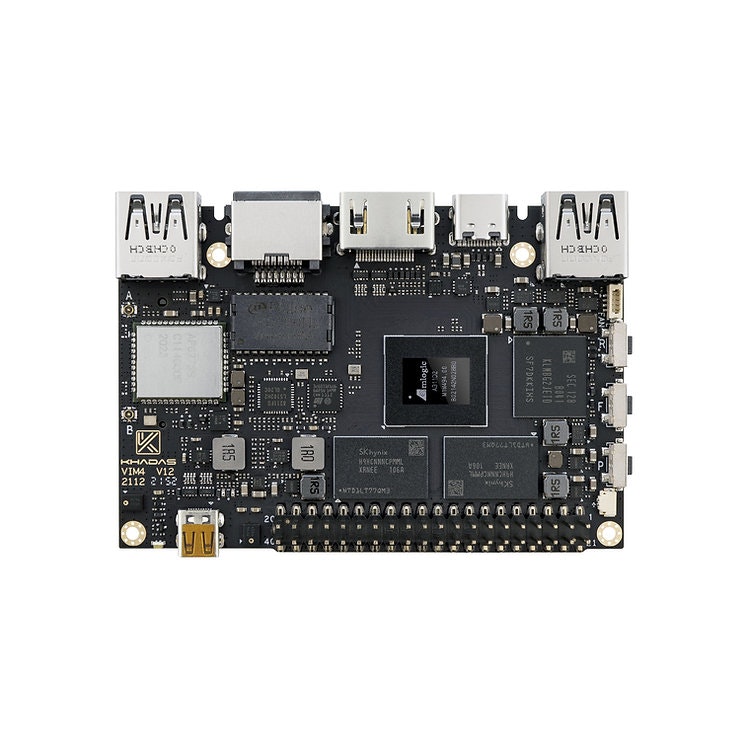

  • Amlogic A311D2 - 2.2GHz Quad core ARM Cortex-A73 and 2.0GHz Quad core Cortex-A53
  • ARM Mali-G52 MP8(8EE) GPU up to 800MHz
  • AP6275S Wi-Fi 6 Module (802.11a/b/g/n/ac/ax, 2T2R MIMO with RSDB)
  • Bluetooth 5.1
  • USB 3.0 Available
  • Gigabit Ethernet with WOL support
  • 8GB 64bit LPDDR4X frequency up to 2016MHz
  • USB-C PD for heavy applications
  • M.2 Connector (for NVMe SSD, 5G etc)

OOWOW Embedded System

  • Install / reinstall OS
  • Download online OS images
  • Remote access control via HTTP/SSH
  • Backup and restore system
  • Display full device information
  • Configure device
  • Online script collection
  • Rescue shell
  • Developer and advanced features


Maker Friendly:

  • Stackable Design
  • Programmable 32bit MCU
  • 2 Programmable LEDs (Red and White)
  • XPWR for external Power button
  • Onboard SPI Flash
  • Khadas TST
  • Khadas KBI
  • 3D CAD Files

Business Applications

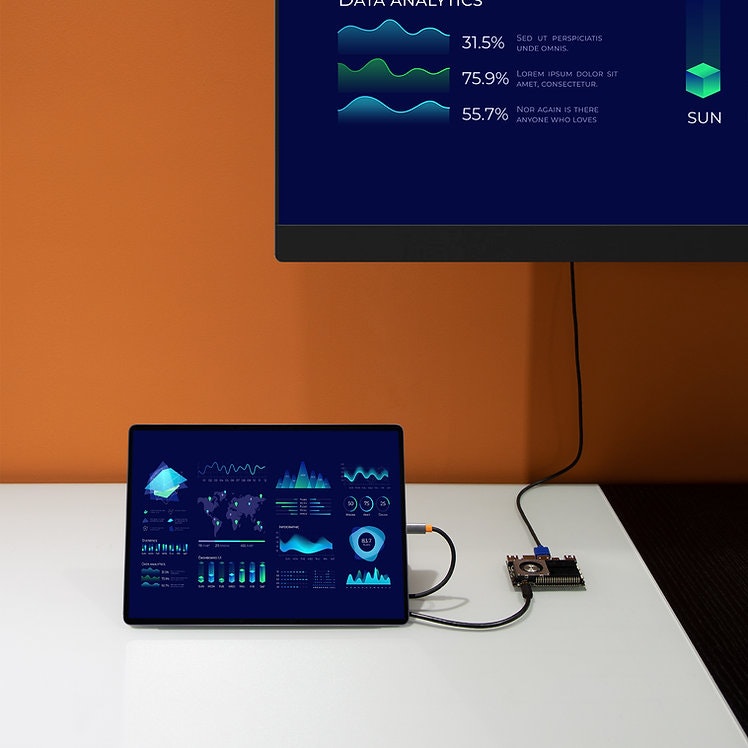

  • Triple independent displays with GSensor
  • Touch panel support (TP)
  • Dual MIPI-CSI inputs, for dual camera support
  • HDMI input, for HDMI passthrough and recording
  • V-by-One interface for machine vision applications
  • H.264 / H.265 Encoding
  • Supports multi-video decoding up to [email protected][email protected]
  • 9-20V VIN Power Input

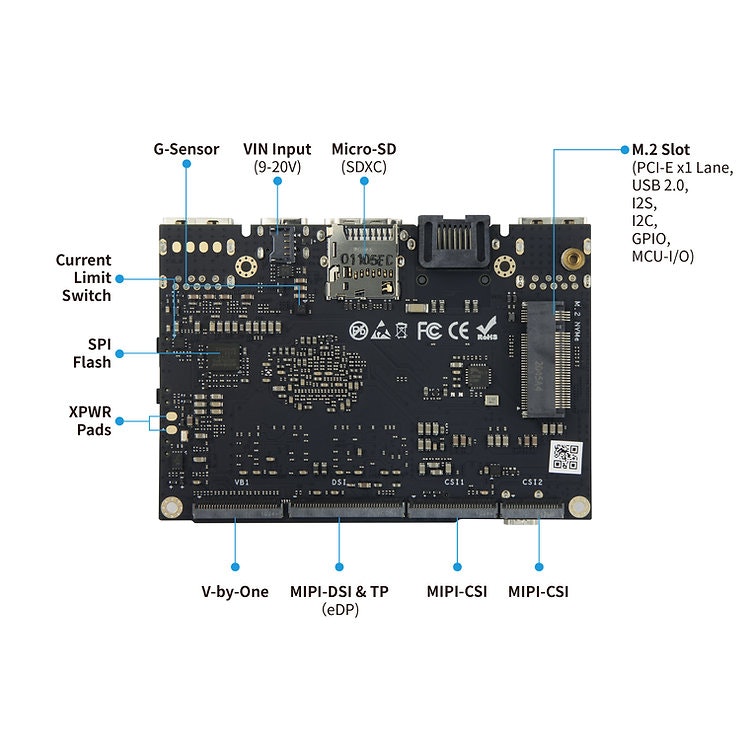

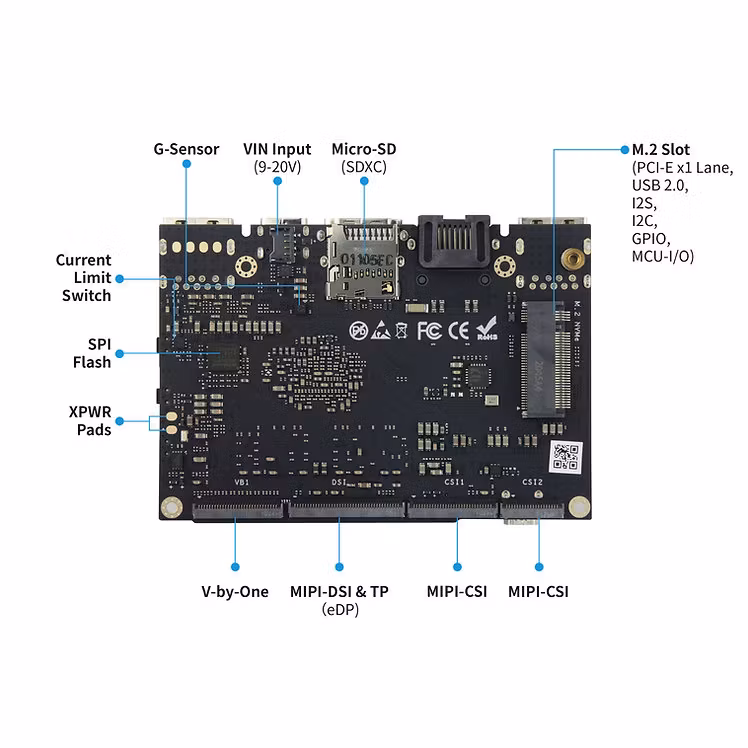

Rich IO:

  • 40 Pin GPIO Header (USB, I2C, I2S, UART, ADC etc)
  • 8-ch I2S for Microphone Array application (over M.2 Connector)
  • MIPI-DSI
  • MIPI-CSI
  • eDP
  • VBO

Compatibility:

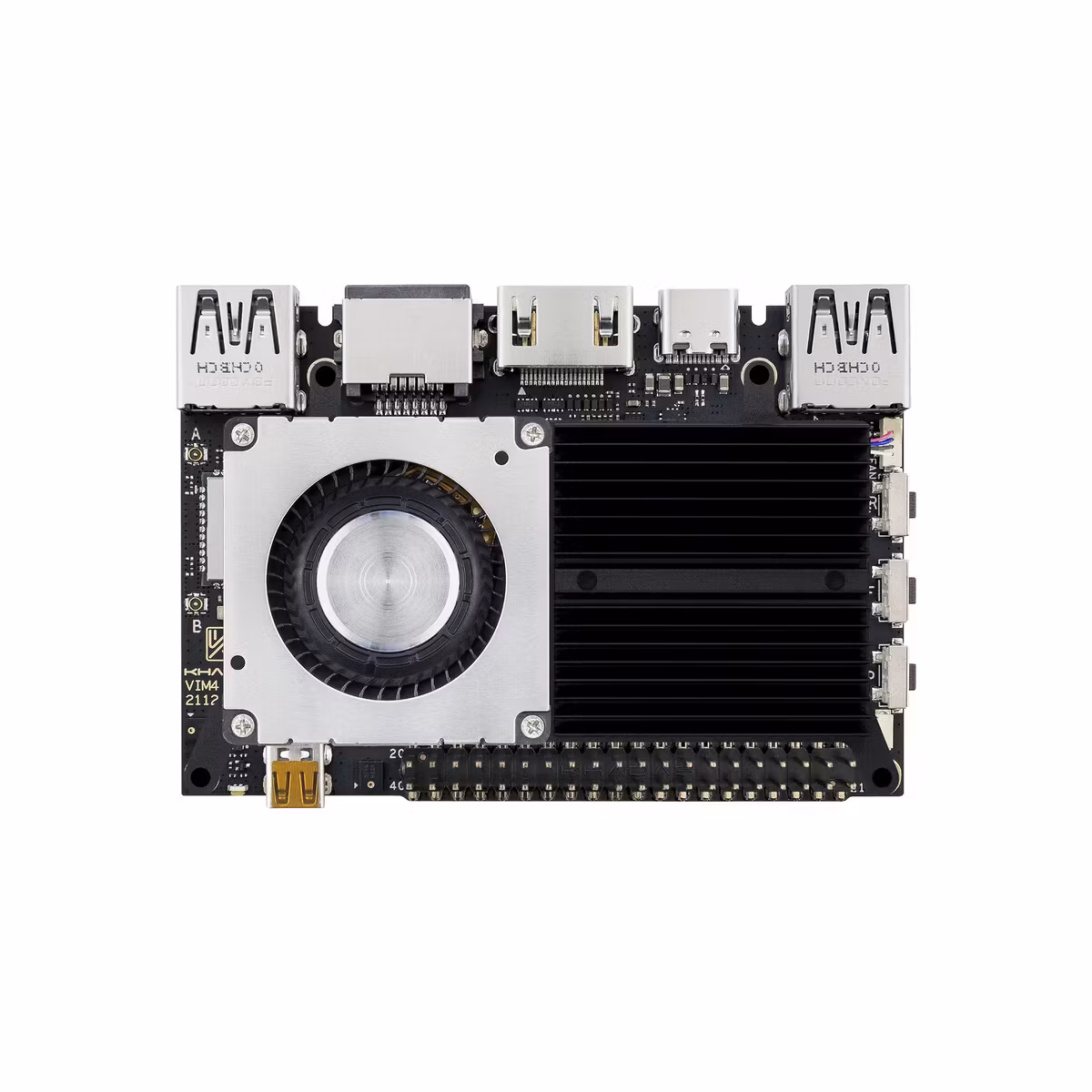

New VIM Heatsink

Passive Heatsink

3705 Cooling Fan

4G LTE Module

5G LTE Module (coming soon)

M2X WWAN Extension Board (coming soon)

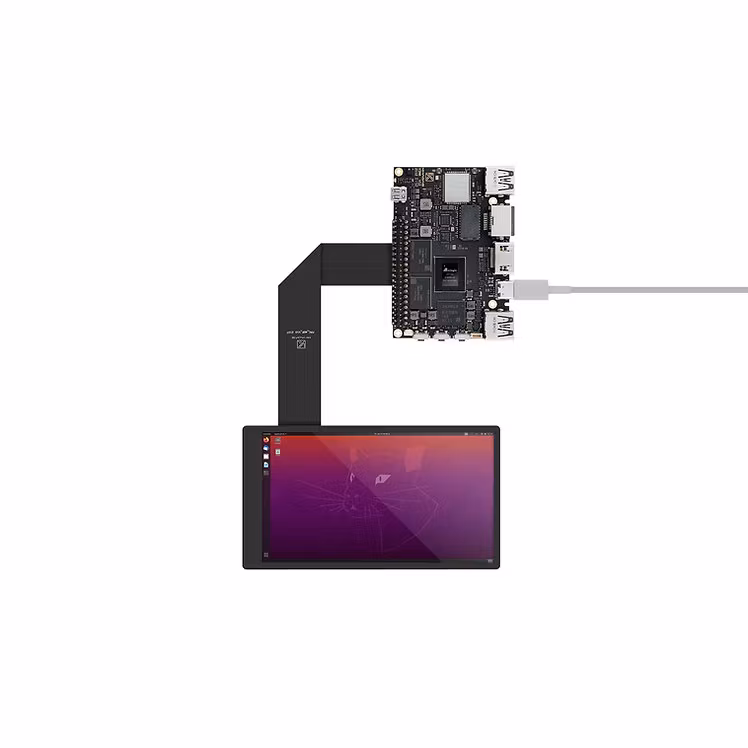

TS050 Touchscreen

Khadas Tone Board

DIY Case 2  (coming soon)

USB-C 30W Adapter (White)

USB-C 24W Adapter (White)

USB-C Cable (White, Male to male)

HDMI Cable (19-Pin)

Note: current TS050 Touchscreen Kit includes an additional FPC cable for VIM4. The original FPC cable is not compatible with VIM4; current DIY Case is not compatible with VIM4 due to the HDMI IN interface. We are working on DIY Case 2 for VIM4.

Incompatible Accessories:

DIY Case (HDMI IN won't work with this case)

IR Remote (VIM4 doesn't have IR Receiver)

M2X Extension (PoE can only supply power. No Ethernet Data Transfer on VIM4)

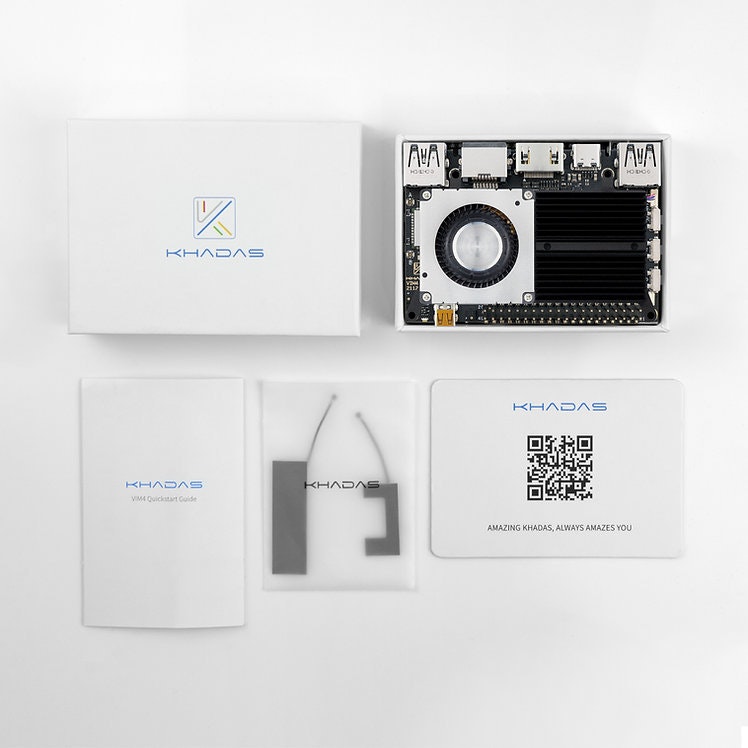

What's in the Box:

  • VIM4
  • Antenna x2
  • New VIM Heatsink (Bareboard version excluded)
  • 3705 Cooling Fan (Bareboard version excluded)
  • User Manual
  • Quickstart Guide
