USB To UART Debugger Module for Raspberry Pi 5

  • 149 kr

USB To UART Debugger Module For Raspberry Pi 5, Type-A Port, Onboard UART Connector, High Baud Rate Transmission, Multi Connection Methods, Multi System Support

I lager.
Lagersaldo: 4
Artikelnummer: 26619
Dela

USB To UART Debugger Module For Raspberry Pi 5, Type-A Port, Onboard UART Connector, High Baud Rate Transmission, Multi Connection Methods, Multi System Support

UART Debugger Module For Raspberry Pi 5

Designed For Raspberry Pi 5

Stable Transmission | Multi-Device Applicable | Multi-System Compatible

Pi5 UART Debugging

Suitable For Raspberry Pi 5, Supports Multiple Connection Methods

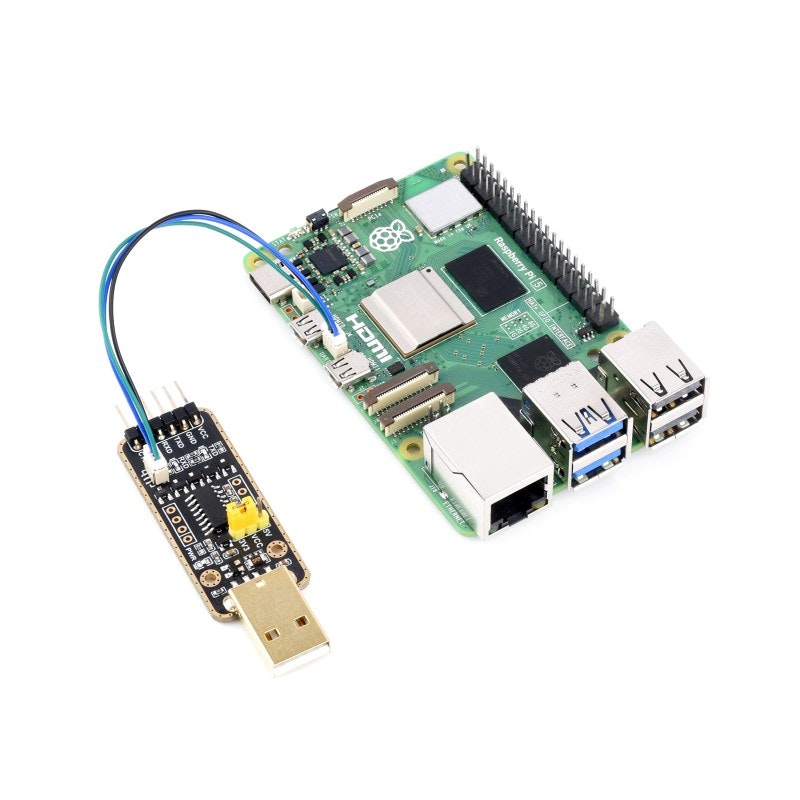

Connect To PI5 UART Debug Connector Via SH1.0 3PIN Cable


Connect Onboard 6PIN Header To PI5 GPIO UART Interface Via 6PIN Cable



Connect Onboard 6PIN Header To PI5 UART Debug Connector Via SH1.0 To 3PIN Cable

Features At A Glance

  • Supports Mac, Linux, Android, Windows 7/8/8.1/10/11
  • Onboard self-recovery fuse and Transient Voltage Suppressor, anti-overcurrent and anti-overvoltage, anti-surge, anti-static, improves shock proof performance, stable and safe communication performance
  • Onboard IO protection circuits, anti-surge, anti-static, stable and safe communication performance

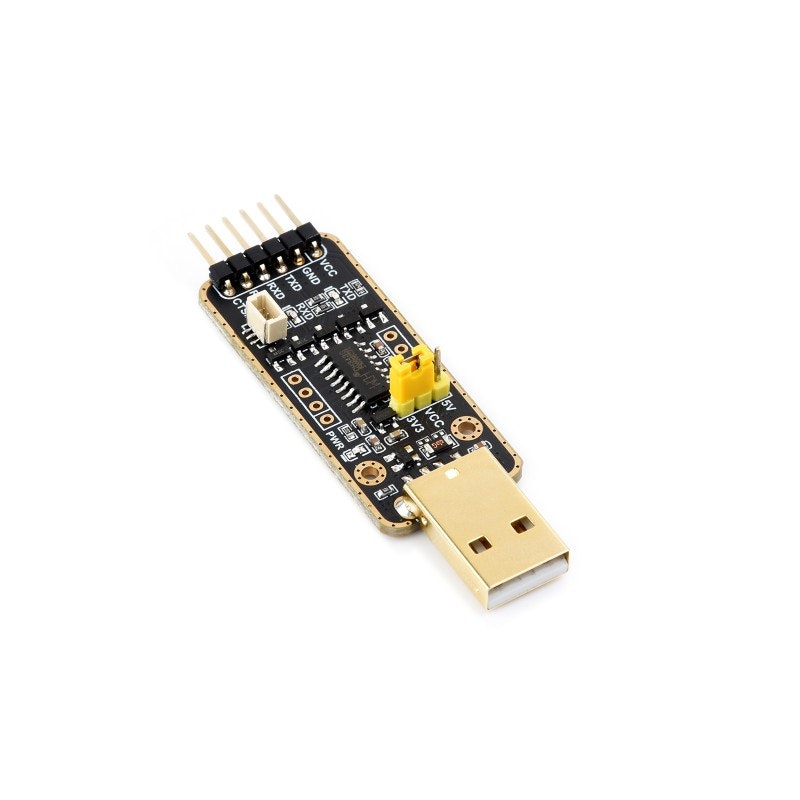

  • Onboard 3.3V and 5V TTL level switch pins for selecting TTL communication level
  • Supports 3.3V/5V output (the module is powered by USB, and the onboard jumper should be shorted to 3.3V or 5V accordingly)
  • Adopts double-sided black immersion gold process, which is durable and has a good look

Specifications

HOST INTERFACEUSB
DEVICE INTERFACEUART
COMMUNICATION RANGE50bps ~ 6Mbps
USB DEVICE INTERFACEconnector: USB Type-A;
protection: self-recovery fuse, ESD protection
UART INTERFACEconnector: 6pin right-angle pinheader; 3pin connector
protection: IO protection diode

Multiple Protection Circuit, Safe And Stable

Onboard Self-Recovery Fuse And Transient Voltage Suppressor, Prevents Overcurrent And Overvoltage, Improves Shock Proof Performance; Onboard IO Protection Circuit, Anti Surge, Anti-Static, Stable And Safe Communication Performance

Multiple Systems Support

Compatible With Popular Systems Like Win7/8/8.1/10/11, Mac, Linux, Android...

Interface Introduction

INDICATOR DESCRIPTION
PWRPower indicator, turns on when voltage is detected from USB interface
RXDReceiving indicator, turns on when data is sent back from the device interface
TXDSending indicator, turns on when data is sent from USB

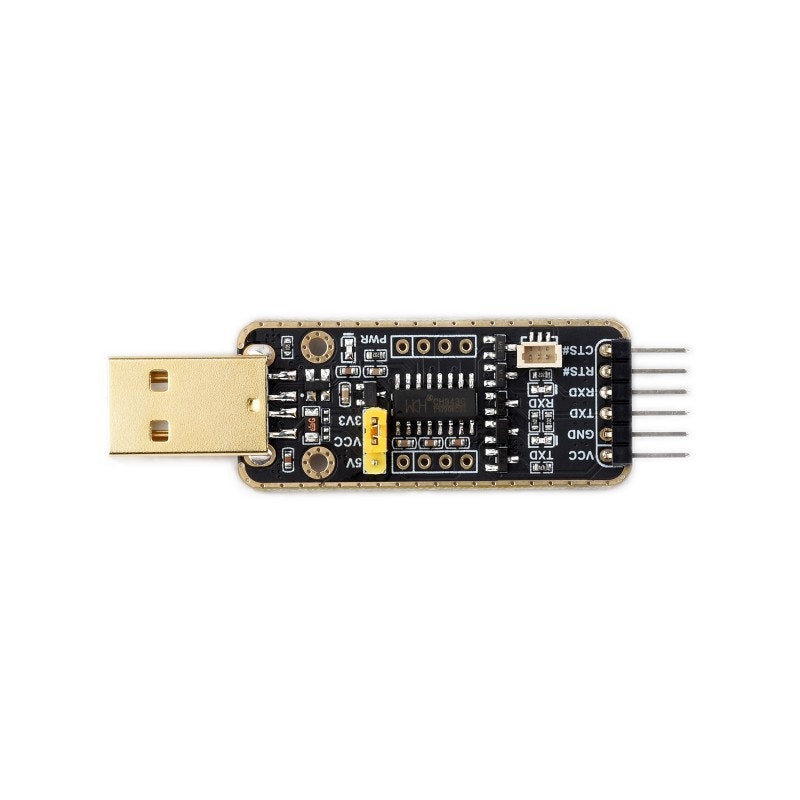

Pinouts Definition

VCC5V or 3.3V output for external device (configured by jumper)
GNDGround
TXDConnects to MCU.RXD
RXDConnects to MCU.TXD
RTS#Connects to MCU.CTS
CTS#Connects to MCU.RTS

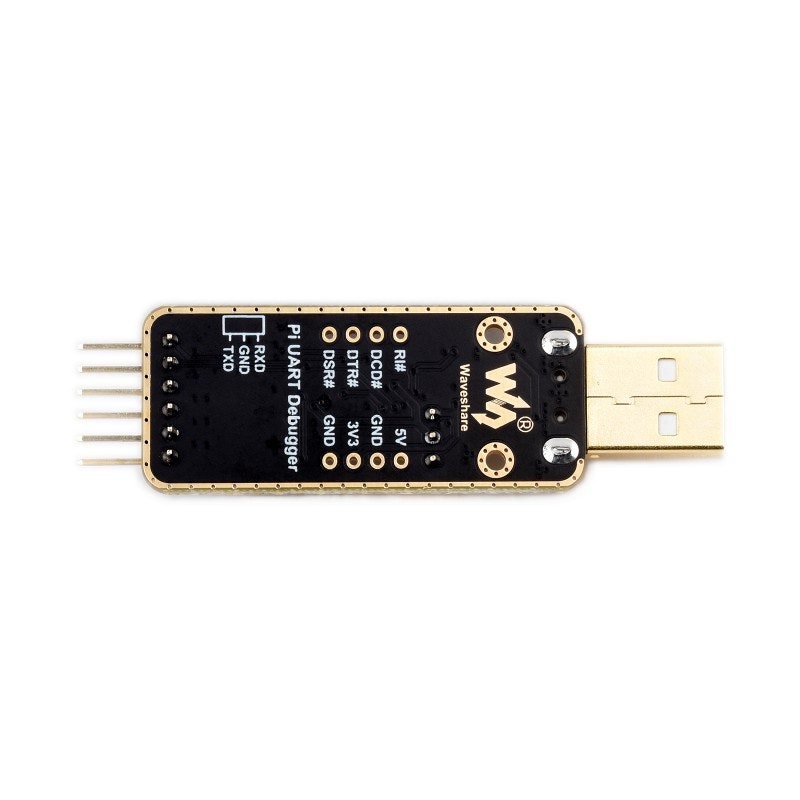

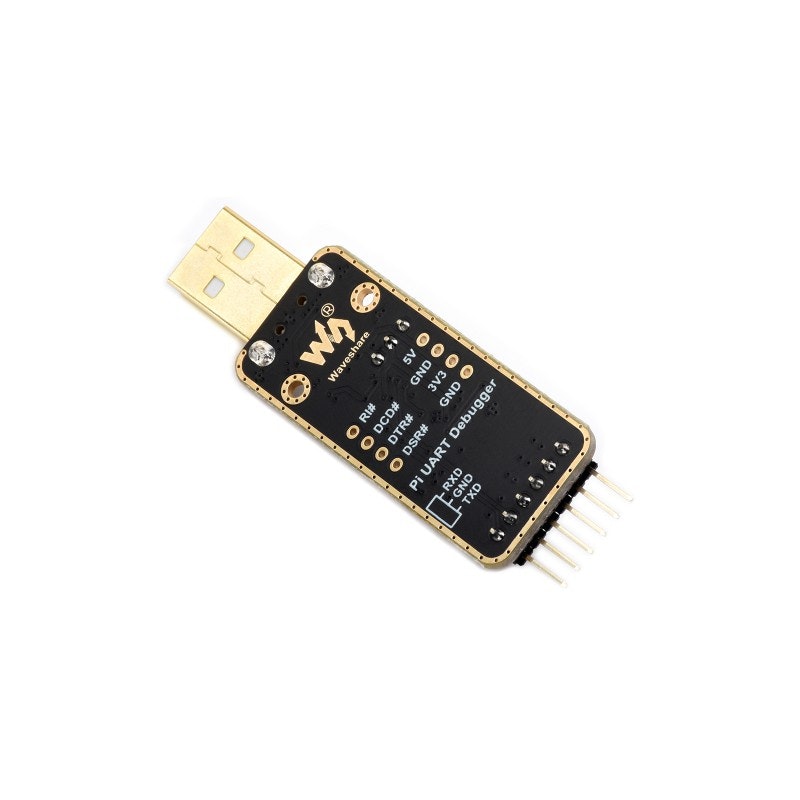

Adopts Double-Sided Black Immersion Gold Process

Outline Dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/Pi_UART_Debugger


Shipping list

Weight: 0.014 kg

  1. Pi UART Debugger x1
  2. 6-pin squid cable x1
  3. SH1.0 connector to 3PIN cable ~100mm x1
  4. Dual SH1.0 connector 3PIN cable ~100mm x1
