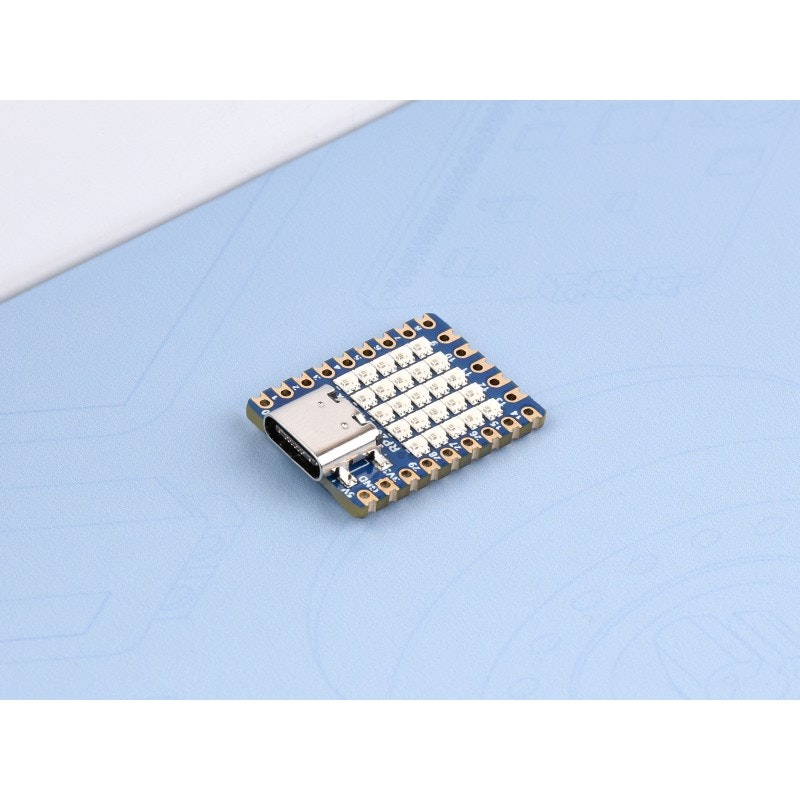

Waveshare RP2040-Matrix Development Board

  • 199 kr

Waveshare RP2040-Matrix Development Board, Onboard 5×5 RGB LED Matrix, Based On Official RP2040 Dual Core Processor. RP2040 RGB LED Matrix Board , a Pico-like M

I lager.
Lagersaldo: 2
Artikelnummer: 1285
Dela

Waveshare RP2040-Matrix Development Board, Onboard 5×5 RGB LED Matrix, Based On Official RP2040 Dual Core Processor. RP2040 RGB LED Matrix Board , a Pico-like MCU board based on Raspberry Pi RP2040 . Castellated Module, Suitable For SMD Applications

Board Specifications

  • RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
  • Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
  • 264KB of SRAM, and 2MB of on-board Flash memory
  • Onboard 5 × 5 RGB LED matrix for colorful lighting display
  • Castellated module allows soldering direct to carrier boards
  • USB 1.1 with device and host support
  • Low-power sleep and dormant modes
  • Drag-and-drop programming using mass storage over USB
  • 20 × multi-function GPIO pins
  • 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
  • Accurate clock and timer on-chip
  • Temperature sensor
  • Accelerated floating-point libraries on-chip
  • 8 × Programmable I/O (PIO) state machines for custom peripheral support

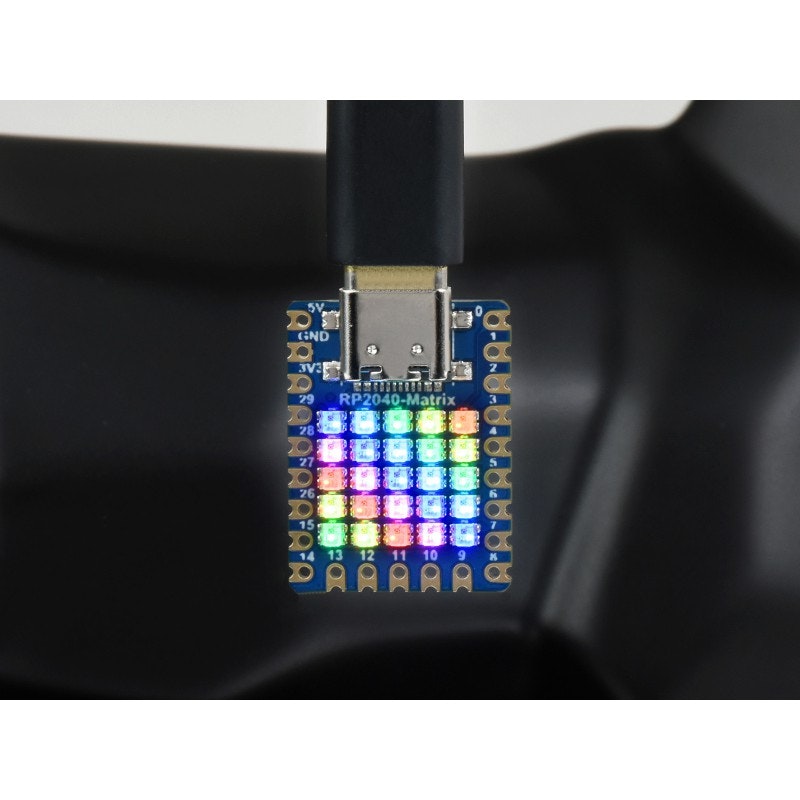

Onboard 5×5 RGB LED Matrix

For Colorful Lighting Display



Dual-Core Arm Processor

Dual-Core Arm Cortex M0+ Processor, Flexible Clock Running Up To 133 MHz

Supports C/C++, MicroPython, Arduino

Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

20 × Multi-Function GPIO Pins

Configurable Pin Function, Allows Flexible Development And Integration

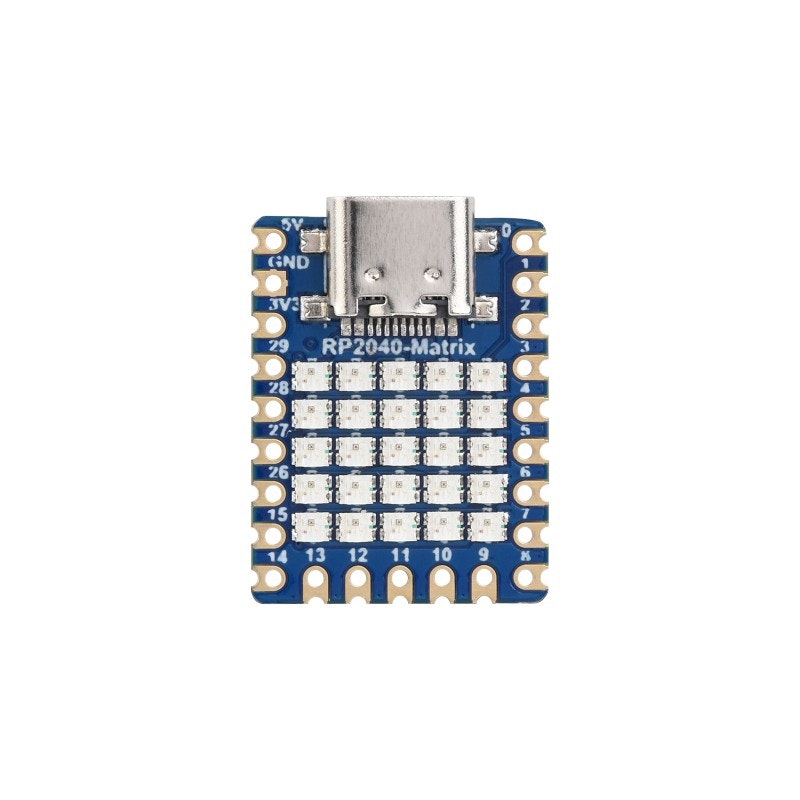

What's On Board

  1. USB Type-C connector
  2. 5×5 RGB LED Matrix
  3. BOOT button
    press it when resetting to enter download mode
  4. RESET button

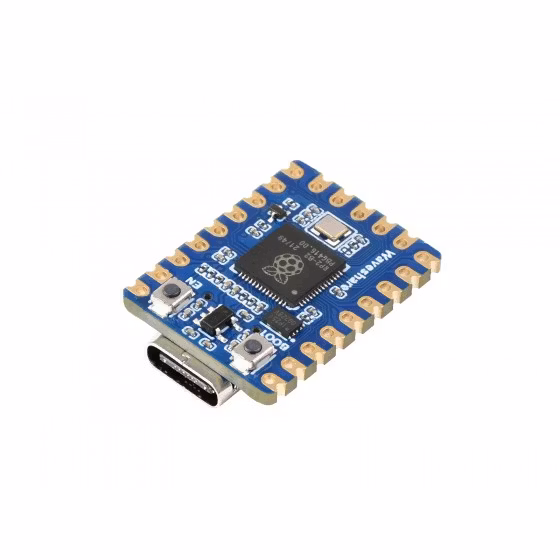

  1. RT9013-33GB
    500mA low dropout, low noise, ultra-fast LDO
  2. W25Q16JVUXIQ
    2MB NOR-Flash
  3. RP2040
    dual-core processor, up to 133MHz operating frequency

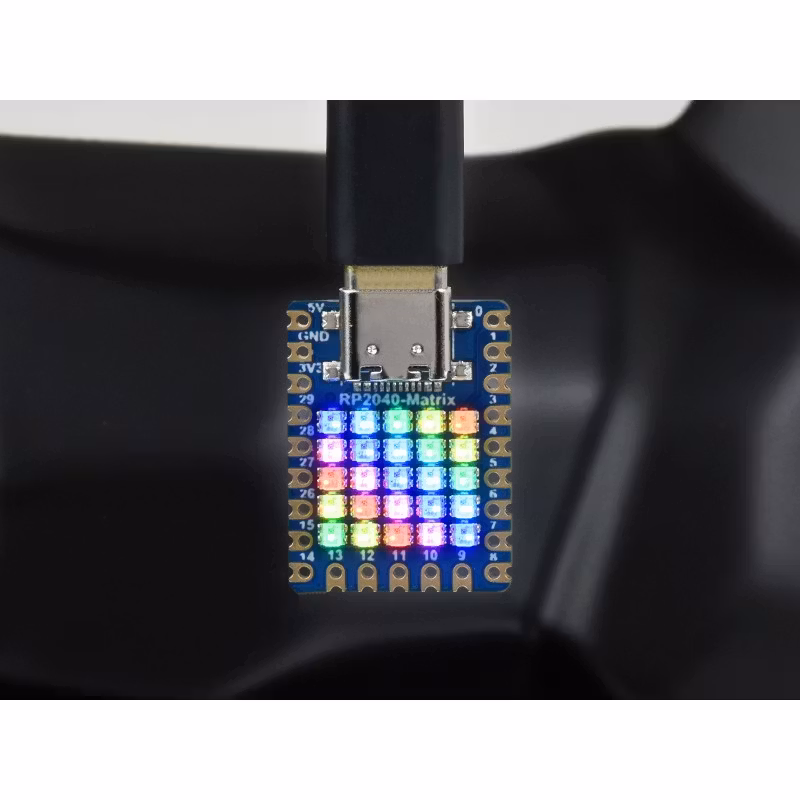

Product Show

Outline Dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/RP2040-Matrix


Shipping

Weight: 0.002 kg

RP2040-Matrix x1

RP2040-Matrix
