Waveshare RP2040-Tiny Development Board, Based On Official RP2040 Dual Core Processor

  • 225 kr

Waveshare RP2040-Tiny Development Board, Raspberry Pi Microcontroller Development Board, Based On Official RP2040 Dual Core Processor, USB Port Adapter Board Op

I lager.
Artikelnummer: 1266
Dela

Waveshare RP2040-Tiny Development Board, Raspberry Pi Microcontroller Development Board, Based On Official RP2040 Dual Core Processor, USB Port Adapter Board Optional

RP2040-Tiny Development Board with USB Port Adapter Board.

Based On RP2040, USB Port Adapter Board Optional



Board Specifications

  • RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
  • Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
  • 264KB of SRAM, and 2MB of onboard Flash memory
  • Onboard FPC 8PIN connector, adapting USB Type-C port via adapter board
  • Castellated module allows soldering direct to carrier boards
  • USB 1.1 with device and host support
  • Low-power sleep and dormant modes
  • Drag-and-drop programming using mass storage over USB
  • 20 × multi-function GPIO pins
  • 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
  • Accurate clock and timer on-chip
  • Temperature sensor
  • Accelerated floating-point libraries on-chip
  • 8 × Programmable I/O (PIO) state machines for custom peripheral support

Version Options

RP2040-Tiny-Kit
Development board + RP2040-Tiny-Adapter + FPC cable



RP2040-Tiny
The development board only

Support C/C++, MicroPython, Arduino

Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

Compact Size, Separate Adapter Board Design

Castellated Holes With Immersion Gold Design, Highly Integrated Packaging, Easy To Embed Into Various Product Applications

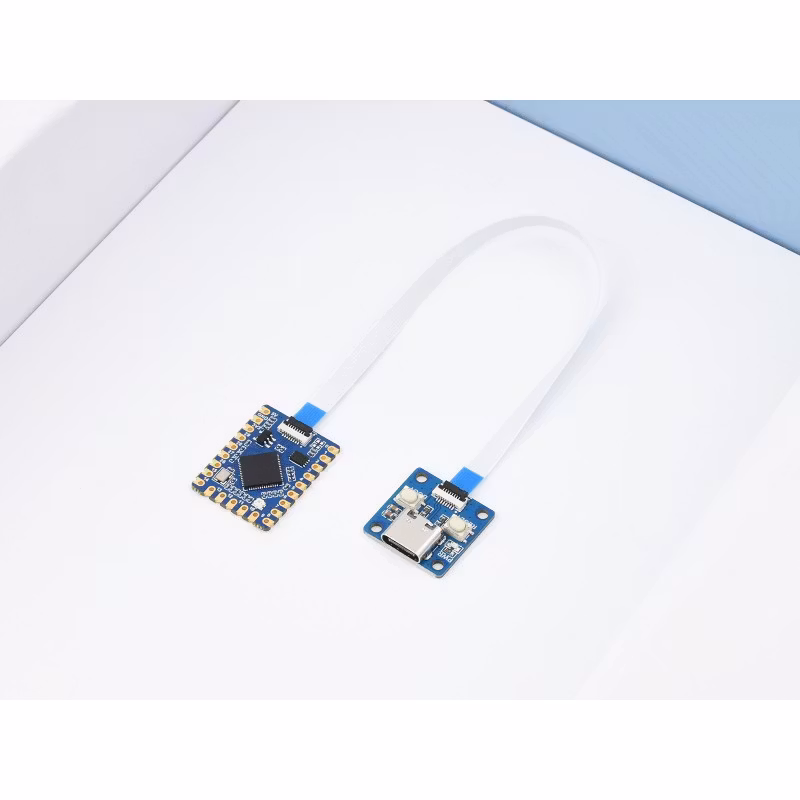

Adapting USB Type-C Port Via Adapter Board

Dual-Core Arm Processor

Dual-Core Arm Cortex M0+ Processor, Flexible Clock Running Up To 133 MHz

20 × Multi-Function GPIO Pins

Configurable Pin Function, Allows Flexible Development And Integration

* Reserved two 0402 resistor pads for user mode selection, you need solder the corresponding resistors or short the pads and complete the corresponding programming.

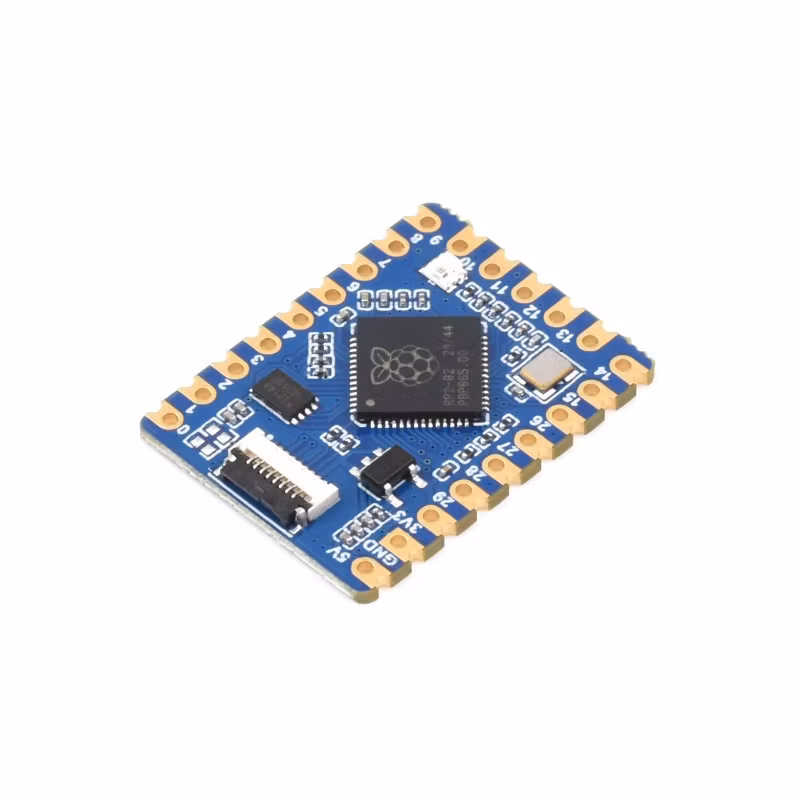

What's On Board

  1. FPC connector
    0.5mm pitch 8PIN
  2. RT9193-33
    500mA low dropout, low noise, ultra-fast LDO
  3. W25Q16JVUXIQ
    2MB NOR-Flash
  1. RP2040
    dual-core processor, up to 133MHz operating frequency
  2. WS2812
    RGB LED Indicator

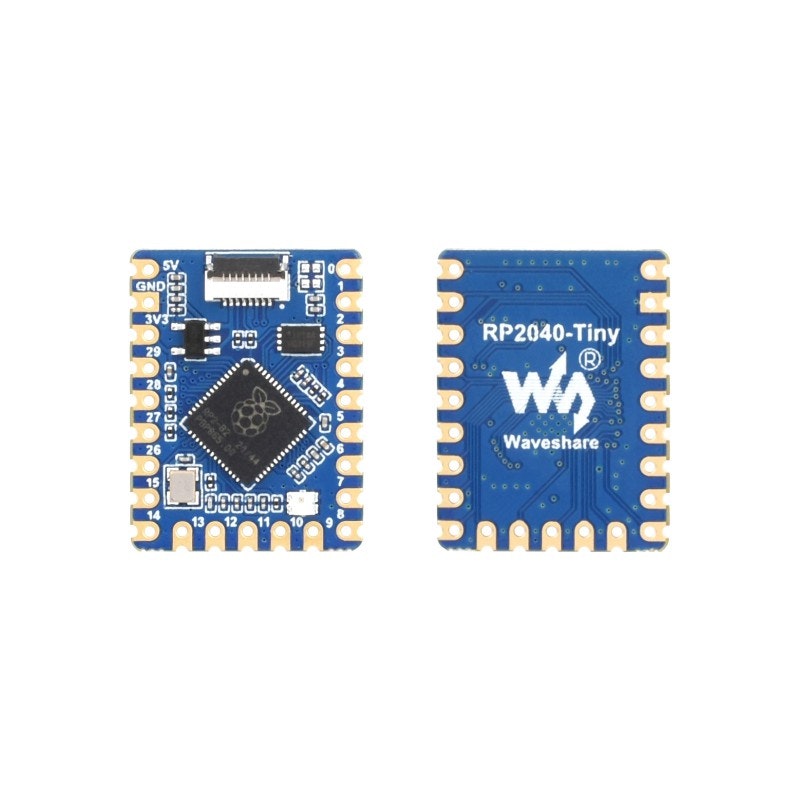

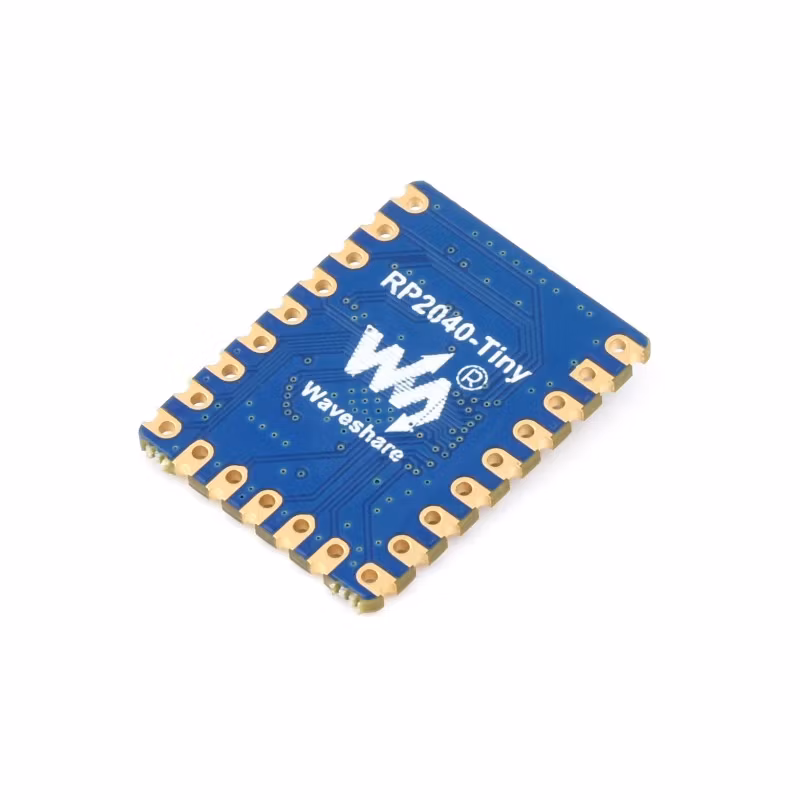

Product Show

Outline Dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/RP2040-Tiny

Shipping list

Weight: 0.008 kg

  1. RP2040-Tiny x1
  2. RP2040-Tiny-Adapter x1
  3. 8PIN FPC cable ~15cm x1
