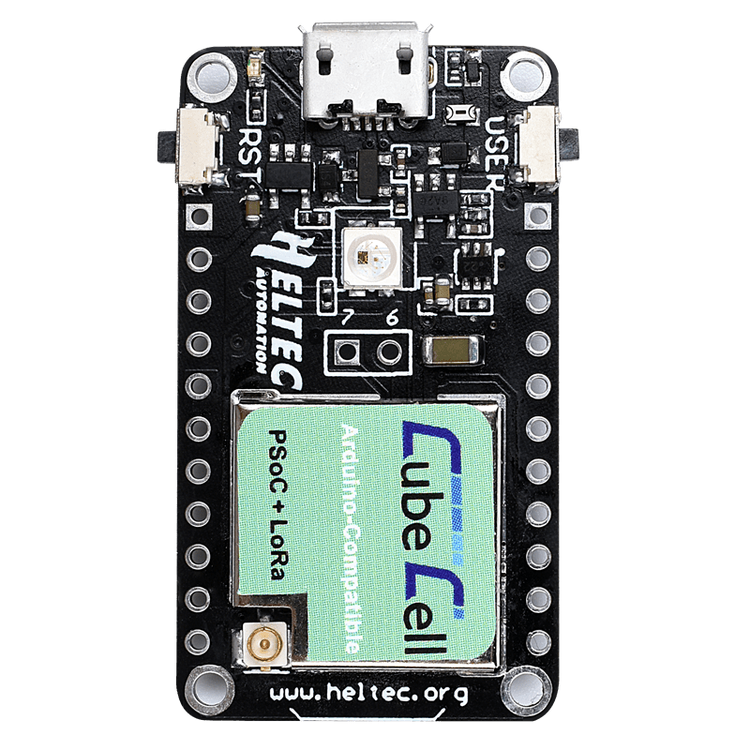

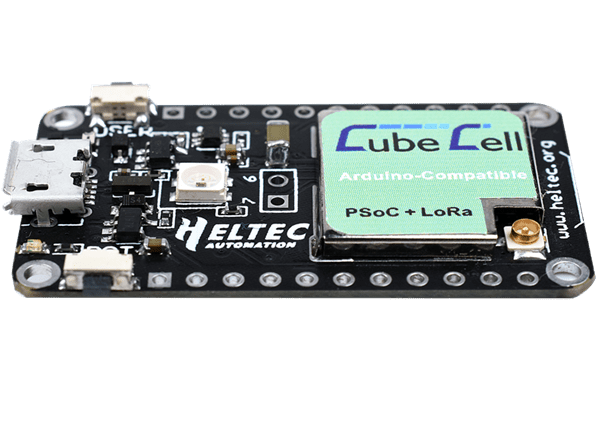

CubeCell – Dev-Board 868 MHz

  • 21.64 EUR

HTCC-AB01 is a part of the “CubeCell“ series, with the following features:Perfect Arduino-Compatible!CE and FCC certification;Based on ASR605x (ASR6501, AS

Produkten är tyvärr slut i lager. :(

Article Number: SKUCubeCell569
Share
  • Information

HTCC-AB01 is a part of the “CubeCell“ series, with the following features:

  • Perfect Arduino-Compatible!
  • CE and FCC certification;
  • Based on ASR605x (ASR6501, ASR6502), those chips are already integrated the PSoC® 4000 series MCU (ARM® Cortex® M0+ Core) and SX1262;
  • LoRaWAN 1.0.3 support;
  • Ultra low power design, 3.5uA in deep sleep;
  • Onboard solar energy management system, can directly connect with a 5.5~7V solar panel;
  • Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching);
  • Micro USB interface with complete ESD protection, short circuit protection, RF shielding, and other protection measures;
  • Integrated CP2102 USB to serial port chip, convenient for program downloading, debugging information printing;
  • Good impendence matching and long communication distance.

Technical Parameters

SourceParameter
MCUASR6501 (48 MHz ARM® Cortex® M0+ MCU, 128KB FLASH, 16KB SRAM )
LoRa ChipASR6501 (Internal assembled Semtech® LoRa® Transceiver SX1262)
LoRa working bandEU_433, CN_470_510, EU_863_870, US_902_928
LoRa maximum output power22 ± 1dB
Hardware resourcesUART x 1; SPI x 1; I2C x 1; SWD x 1; PWM x 3
12 – bits ADC; 8 – channel DMA engine
6 x GPIO
FLASH128KB internal FLASH
InterfaceMicro USB x 1; LoRa (IPEX) x 1
Size41.5 x 24.1 x 7.2 mm
USB-UART bridgeCP2102
Battery Type3.7V Lithium (SH1.25 x 2 socket)
Battery detection circuit√
External device power control（Vext）√
Low power designDeep Sleep 3.5uA

Electrical characteristics

Electrical characteristicsconditionMinimumTypicalMaximum
Power SupplyUSB powered (≥500mA)4.7V5V6V
Lithium powered（≥250mA）3.3V3.7V4.2V
3.3V（pin）powered（≥150mA）2.7V3.3V3.5V
5V（pin）powered（≥500mA）4.7V5V6V
Power consumption(mA)LoRa Rx Mode
10mA
LoRa 10dBm output
70mA
LoRa 14dBm output
90mA
LoRa 17dBm output
100mA
LoRa 20dBm output
105mA
Sleep Mode (USB powered)
9.6mA
Sleep Mode (VBAT/battery powered)
11uA
Sleep Mode (3.3V header powered)
3.5uA
Output3.3V pin output

500mA
5V pin output （USB powered only）
Equal to the input current
External device power control (Vext 3.3V）

350mA


How to install

Heltec CubeCell series Arduino framework (the basic of CubeCell series products Arduino development environment): https://github.com/HelTecAutomation/ASR650x-Arduino
