RGB Full-Color LED Matrix Panel, 3mm Pitch, 64×64 Pixels, Adjustable Brightness
- 43.01 EUR
RGB Full-Color LED Matrix Panel, 3mm Pitch, 64×64 Pixels, Adjustable Brightness64×64 RGB LED Matrix Panel, 4096 Individual RGB LEDs, 4mm Pitch Supports Raspberr
Produkten är tyvärr slut i lager. :(
Article Number:
22100
RGB Full-Color LED Matrix Panel, 3mm Pitch, 64×64 Pixels, Adjustable Brightness
64×64 RGB LED Matrix Panel, 4096 Individual RGB LEDs, 4mm Pitch Supports Raspberry Pi And Arduino...
Multi LED Matrix Panel Can Be Chained Together To Build A Larger Panel
Via HUB75 Input/Output Header
Features At A Glance
By nightfall, the dazzling neon lights of the streets and alleys illuminate the whole city making it more dynamic. Obviously, the Full-Color LED Matrix Panel is playing an important role. Maybe be on the doors of shops, maybe be on the bus or the taxi, you can always see animations or advertisement videos. Does it look cool? Why not have a try?
- 4096 individual RGB LEDs, full-color display, adjustable brightness

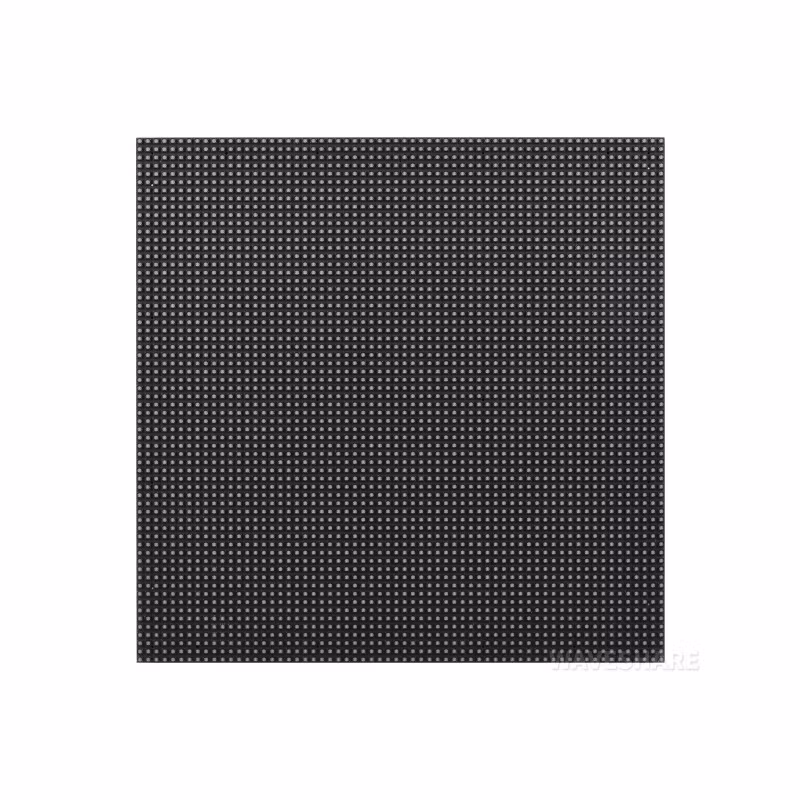

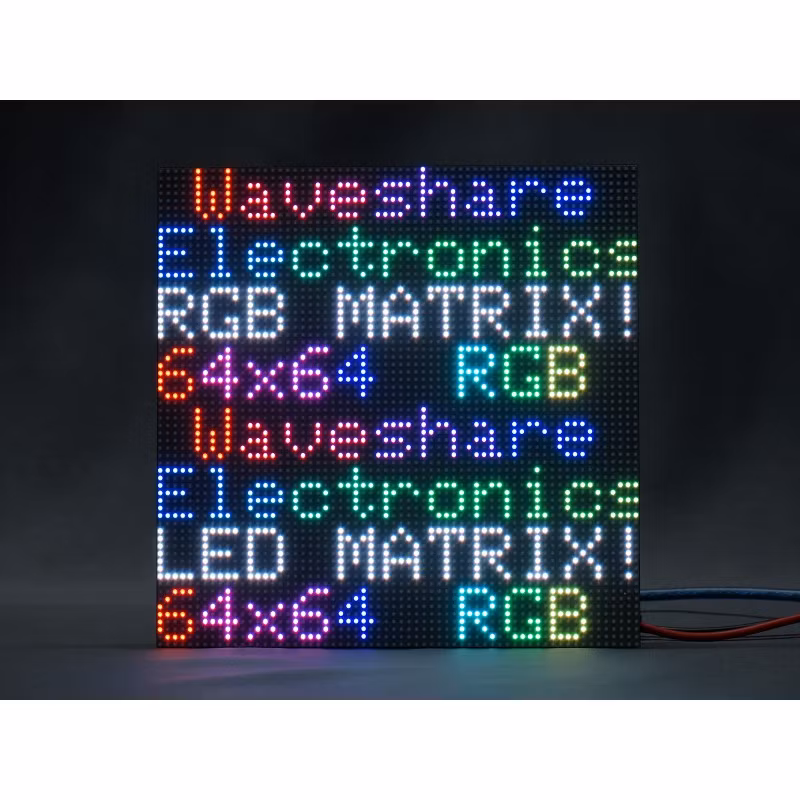

- 64×64 pixels, 3mm pitch, allows displaying text, colorful image, or animation
- 192×192mm dimensions, moderate size, suitable for DIY desktop display or wall mount display

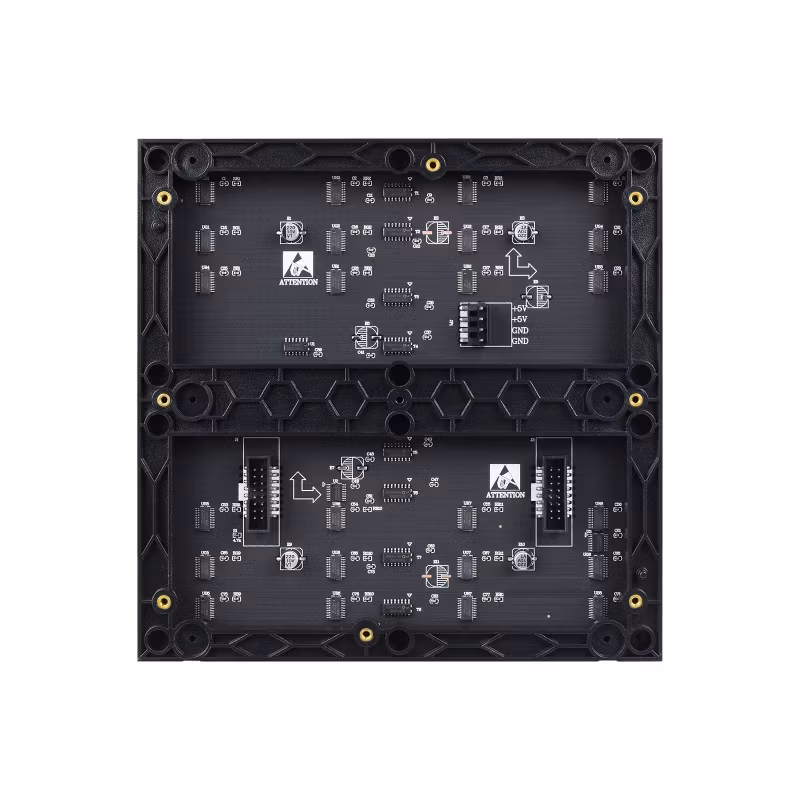

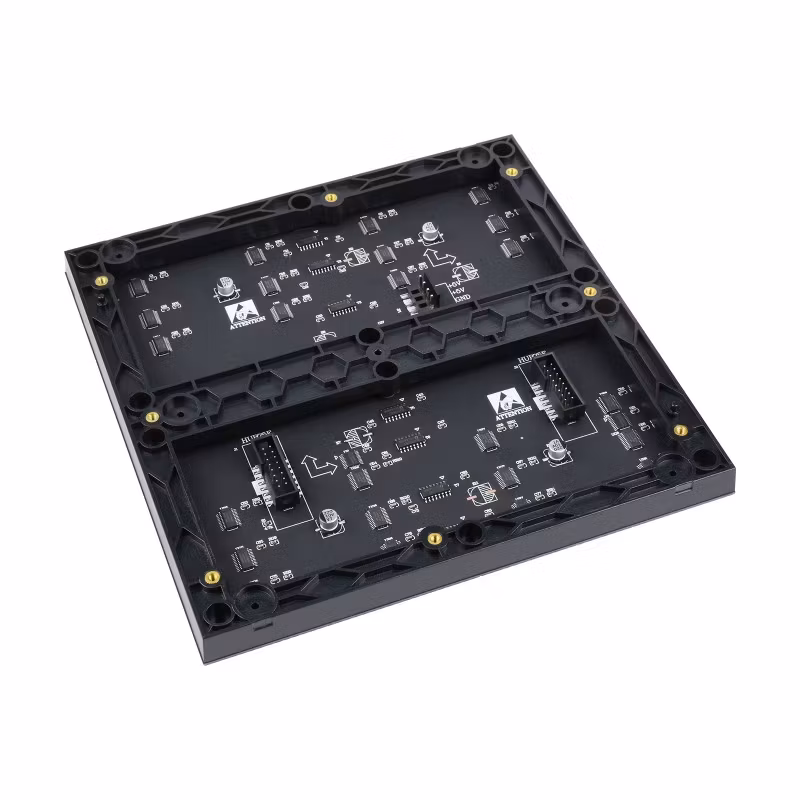

- Onboard two HUB75 header, one for controller data input, one for output, chain support
- Provides open source development resources and tutorials, for use with Raspberry Pi, Arduino, and so on
Specifications
| DIMENSIONS | 192mm × 192mm |
|---|---|
| PIXELS | 64×64=4096 DOTS |
| PITCH | 3mm |
| PIXEL FORM | 1R1G1B |
| VIEWING ANGLE | ≥160° |
| CONTROL TYPE | synchronization |
| DRIVING | 1/32 scan |
| HEADER | HUB75 |
| POWER SUPPLY | 5V / 4A (VH4 header input) |
| POWER | ≤20W |
Header Definition
| PIN | DESCRIPTION | PIN | DESCRIPTION |
|---|---|---|---|
| +5V | 5V power input | GND | Ground |
| R1 | R higher bit data | R2 | R lower bit data |
| G1 | G higher bit data | G2 | G lower bit data |
| B1 | B higher bit data | B2 | B lower bit data |
| A | A line selection | B | B line selection |
| C | C line selection | D | D line selection |
| E | E line selection | CLK | clock input |
| LAT/STB | latch pin | OE | output enable |
Chainable Design
Multi LED Matrix Panel Can Be Chained Together To Build A Larger Panel
Via HUB75 Input/Output Header
Each RGB LED matrix panel requires a standalone 5V/4A or above power supply, when they're chained to display.
Usage Scenarios
DIY Maker Desktop Or Wall Mount Display, Signboard, Environment Monitor...
Dimensions
Resources & Services
WIKI: RGB-Matrix-P3-64x64
Shipping list
Weight: 0.278 kg
- RGB-Matrix-P3-64x64 LED matrix and accessories x1
- Power supply terminal adapter x1
- 16P wire ~30cm x1
It is recommended to used with a 5V 4A power supply
