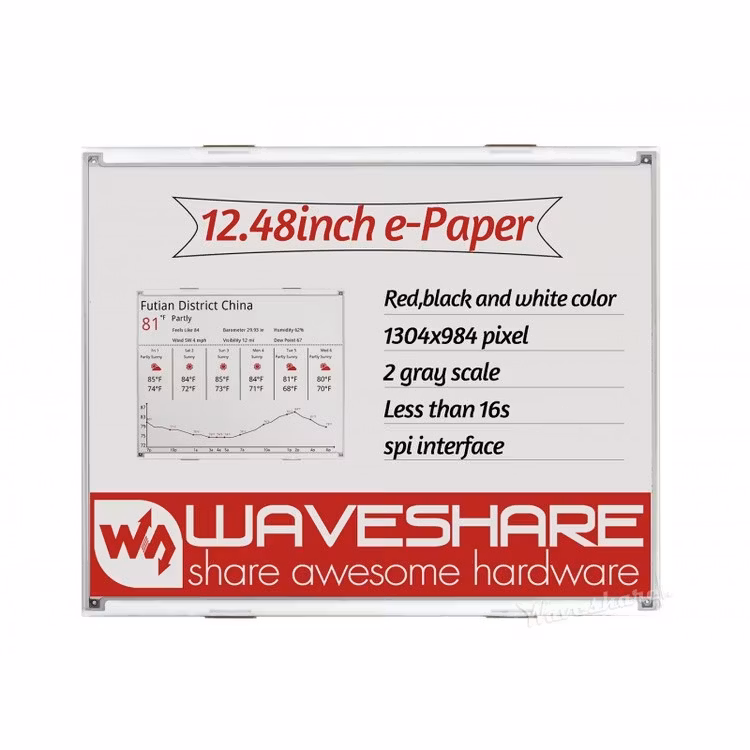

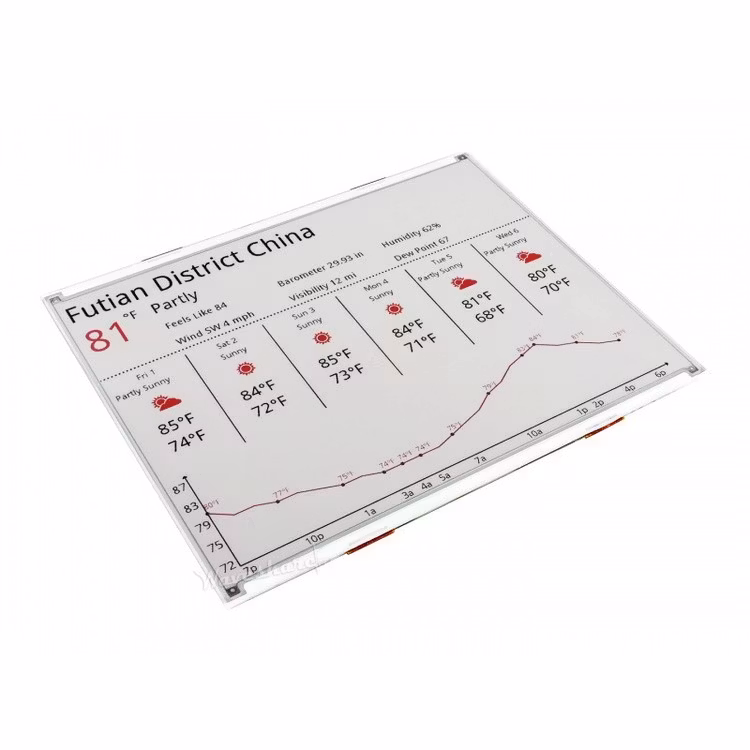

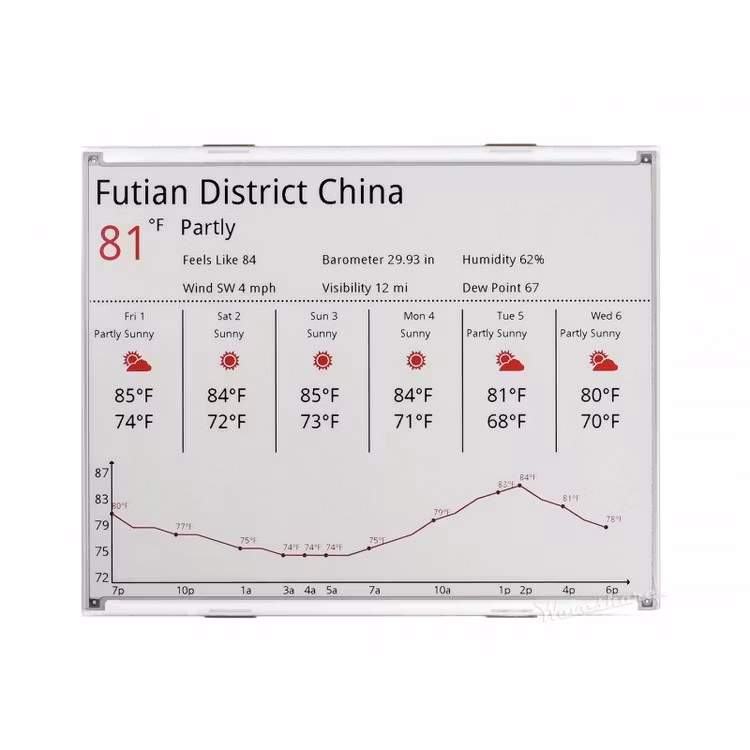

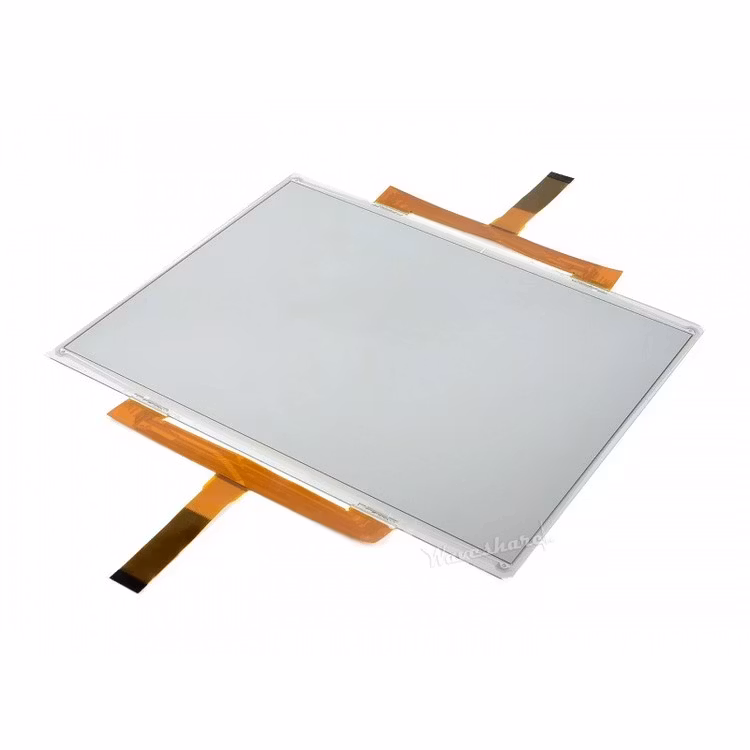

12.48inch E-Ink raw display, red/black/white three-color

I lager.

2 499 kr

Beställningsbar, leverans en vecka

1304×984, 12.48inch E-Ink display module, red/black/white three-color, SPI interface

Overview

This is an E-Ink display module, 12.48inch, 1304×984 resolution, with embedded controller, communicating via SPI interface, supports red, black, and white three-color display.

Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

Features

  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
  • Arduino compatible header, allows directly plugging Arduino boards like UNO / UNO PLUS
  • ESP32 control header, allows directly plugging control boards like e-Paper ESP32 Driver Board / ESP32-DevKitC
  • SPI control interface, for working with STM32 or other MCU host boards
  • Onboard voltage translator, compatible with 3.3V/5V MCUs
  • Acrylic protective case, keeping the screen safe, nice looking
  • Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32/ESP32)

Specifications

  • Operating voltage: 3.3V / 5V
  • Interface: 4-wire SPI
  • Outline dimension: 261.5mm × 211mm
  • Display size: 252.98mm × 190.90mm
  • Dot pitch: 0.194 × 0.194
  • Resolution: 1304 × 984
  • Display color: red, black, white
  • Grey scale: 2
  • Full refresh time: 16s
  • Refresh power: 82.5mW(typ.)
  • Standby power: <0.017mW
  • Viewing angle: >170°

Example

12.48inch e-Paper Module (B) example

12.48inch e-Paper Module (B) example
with Raspberry Pi

12.48inch e-Paper Module (B) example
with UNO PLUS/Arduino board

12.48inch e-Paper Module (B) example
with ESP32 driver board

12.48inch e-Paper Module (B) example
with STM32/other MCU

Note: image for reference ONLY, please check the package content for exact part list.

Dimensions

12.48inch e-Paper Module (B) dimensions

Development Resources

Wiki : www.waveshare.com/wiki/12.48inch_e-Paper_Module_(B)

Package

Weight: 0.789 kg

  1. 12.48inch e-Paper Module (B) x1
  2. 8PIN squid wire x2
  3. Screwdriver x1
