2-Channel RS485 Module for Raspberry Pi Pico, SP3485 Transceiver, UART To RS485

I lager.

199 kr

Artikelnummer: 1029

2-Channel RS485 Module For Raspberry Pi Pico, SP3485 Transceiver, UART To RS485

2-Channel RS485 Module For Pico

Incorporates RS485 Transceiver SP3485, Using UART Bus

Features At A Glance

  • Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series
  • Using UART bus, easily converting UART to RS485, or vice versa
  • Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Specifications

OPERATING VOLTAGE3.3VRS485 TRANSCEIVERSP3485
COMMUNICATION BUSUARTBAUDRATE300~500000bps

Raspberry Pi Pico Header Compatibility

Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico,
Male Pin Header For Stacking Other Modules

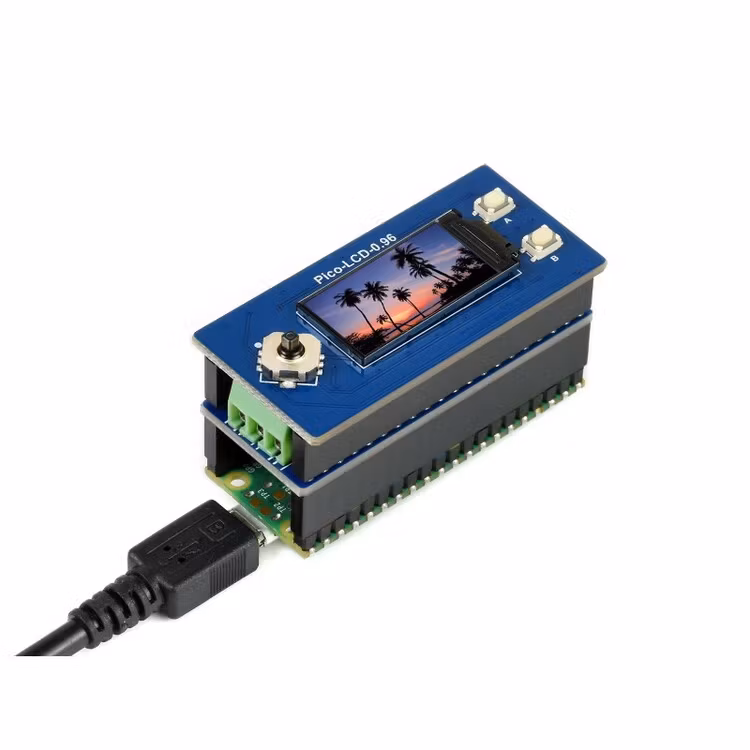

Raspberry Pi Pico and Pico-LCD-0.96 are NOT included.

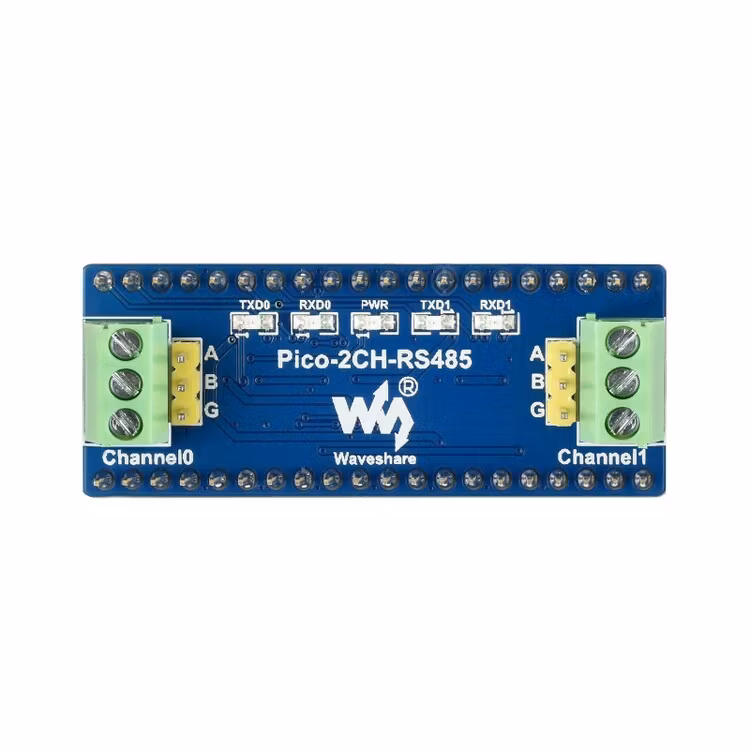

What's On Board

  1. RS485 bus interface
    2-channel RS485
  2. UART status indicators
    RXD0/TXD0: Channel 0 RX/TX indicators
    RXD1/TXD1: Channel 1 RX/TX indicators
  3. Power indicator



  1. SP3485 RS485 transceiver
  2. SMAJ12CA
    transient suppress diode array
  3. Raspberry Pi Pico header

Pinout Definition

Outline Dimensions


WIKI: Pico-2CH-RS485

Shipping list

Weight: 0.013 kg

  1. Pico-2CH-RS485 x1
