7.9inch Capacitive Touch Screen LCD, 400×1280, HDMI, IPS

Leverans v20

7.9inch Capacitive Touch Screen LCD, 400×1280, HDMI, IPS, Toughened Glass Cover

7.9" HDMI Touch Display

• Size7.9"
• Resolution400×1280
• Display PortHDMI
• Display PanelIPS
• Viewing Angle170°
• Touch TypeCapacitive
• Touch Points5-Points
• Touch PortUSB
• Touch PanelToughened Glass
• Audio Output3.5mm Jack

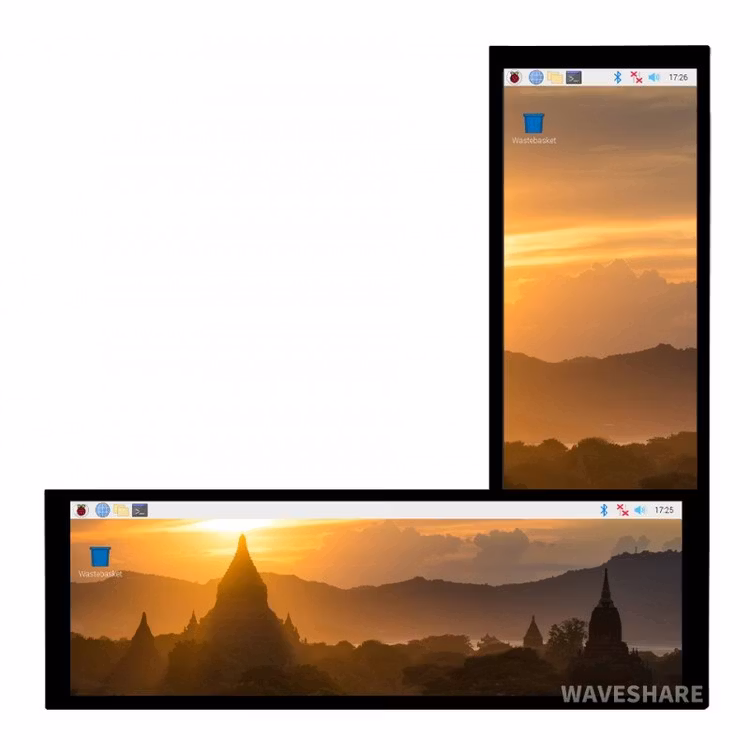

The display orientation is portrait by default, 400×1280 resolution (H×V). Change the software config for landscape display.

Device & System Support

Raspberry Pi

Supports Raspbian, 5-points touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free

Supports all versions of Raspberry Pi

Jetson Nano

Supports Ubuntu, single point touch, driver free

PC

Supports Windows 10 / 8.1 / 8 / 7, 5-points touch, driver free

Hookup Example

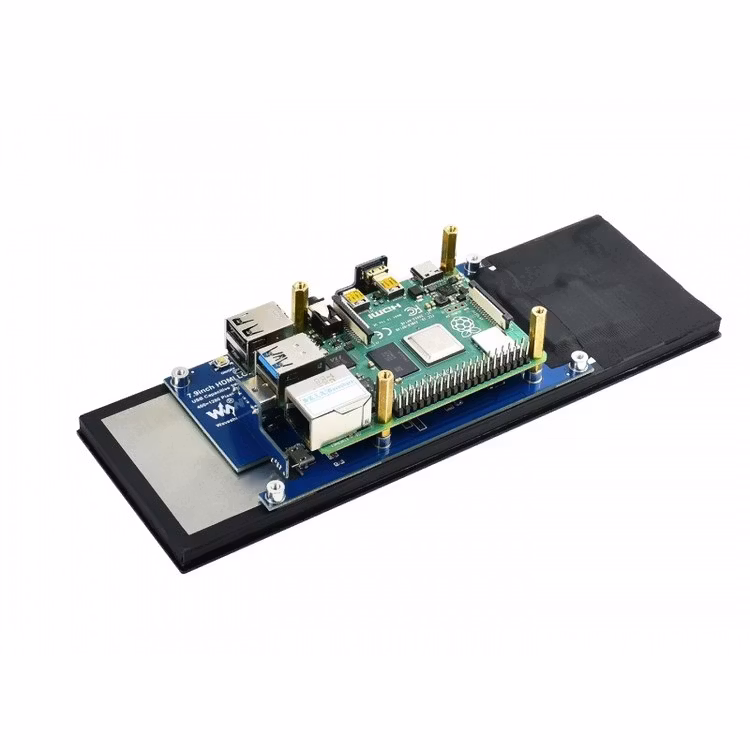

Working With Raspberry Pi 4

Working With Raspberry Pi 3B+

Working With Raspberry Pi Zero W

Working With AI Computer Jetson Nano

Working With Mini PC

Display

IPS Panel

Touch Control

1) up to 5-points touch, depending on the operating system. 2) up to 6H hardness toughened glass panel.

Appearance And Dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/7.9inch_HDMI_LCD

Product Certification

HDMI Certified

* We are an official authorized HDMI Adopter.
