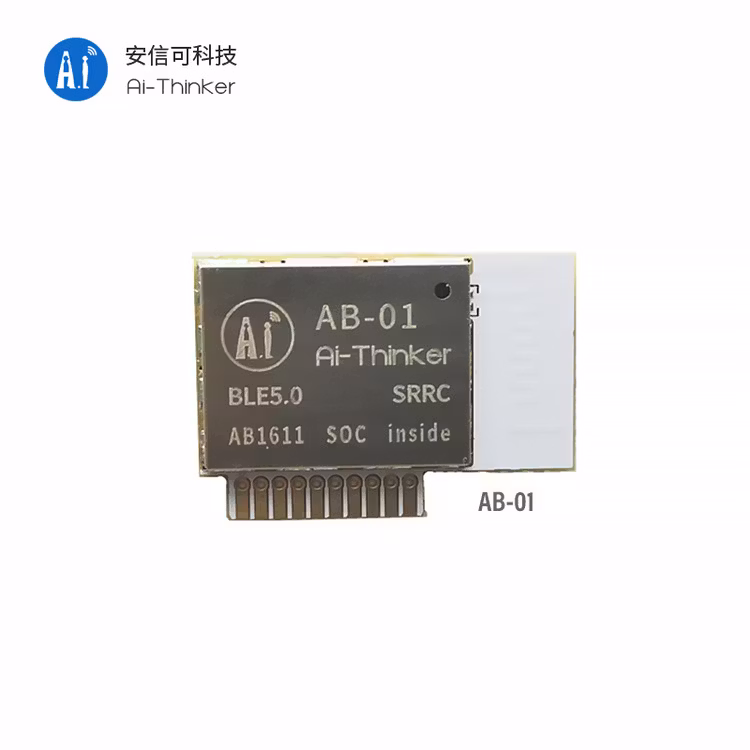

AB-01 Bluetooth Module

I lager.
Antal: 10

99 kr

Artikelnummer: 788

Developed based on the Airoha AB1611 chip, it can be used for smart lights, smart sockets, smart air conditioners and other smart appliances. At the same time, it conforms to BLE5.0 and SIG Mesh specifications. It can directly pass through the Mesh network of smartphone components, and can also be connected to smart speakers such as Tmall Genie and Xiaoai classmates, which is suitable for various smart home application scenarios.

Products Parameter

Model

AB-01

Package

DIP-10

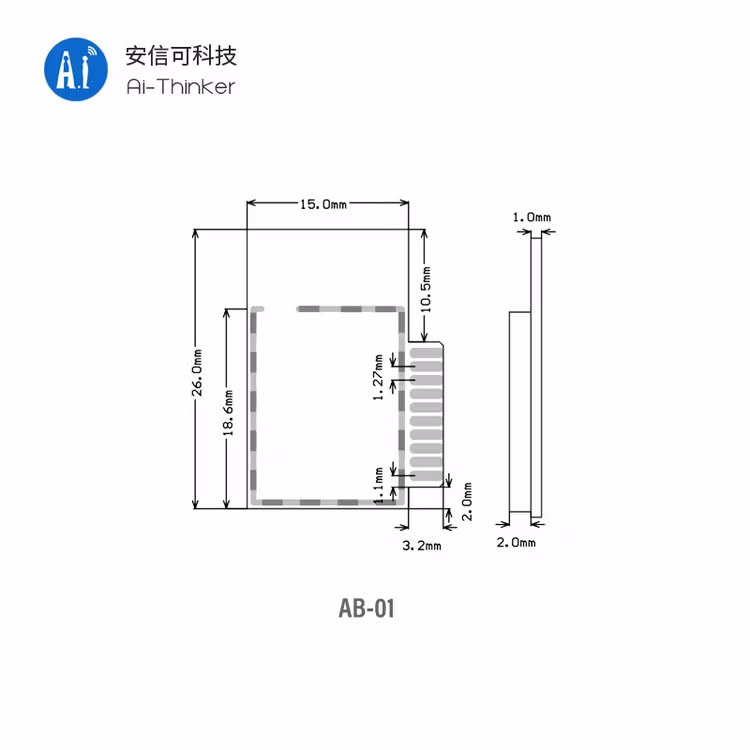

Size

26.0*18*2*2.0(±0.2)mm

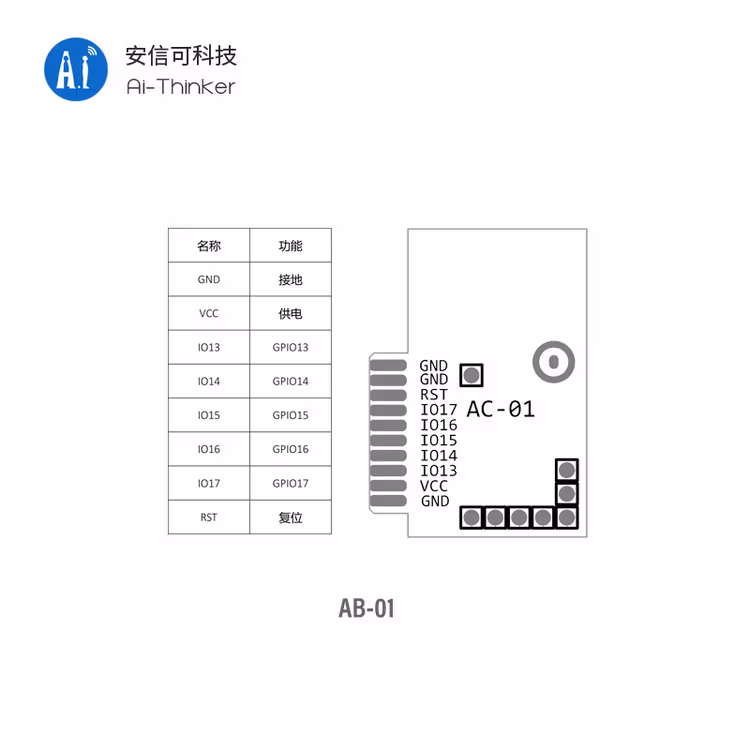

GPIO

5

Transmitted power

10dBm

Receive Sensitivity

-94dBm

Supply Voltage

1.9V~3.6V

Power Consumption

Tx@10dBm: 27.9mA; Tx@0dBm: 11.44mA

Rx@10dBm: 11.8mA; Rx@0dBm: 8.4mA

Operating Temperature

-40℃~85℃

Storage Temperature

-40℃~125℃, <90%RH
