Beetle ESP32 Microcontroller

I lager.

349 kr

This Beetle-ESP32 Microcontroller of 1.38”×1.34”small size is a simplified version of FireBeetle-ESP32 and specially designed for electronic engineering fans and DIY lovers. It is equipped with 4 analog ports, 4 digital ports, UART and I2C interfaces, which would be a perfect replacement of FireBeetle-ESP32.

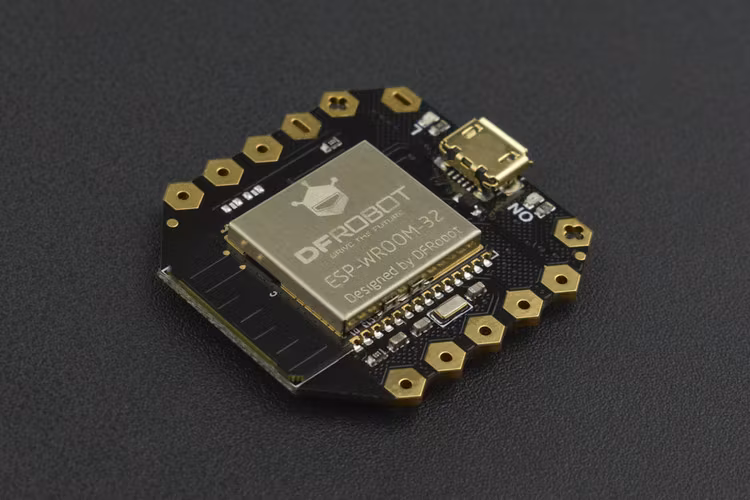

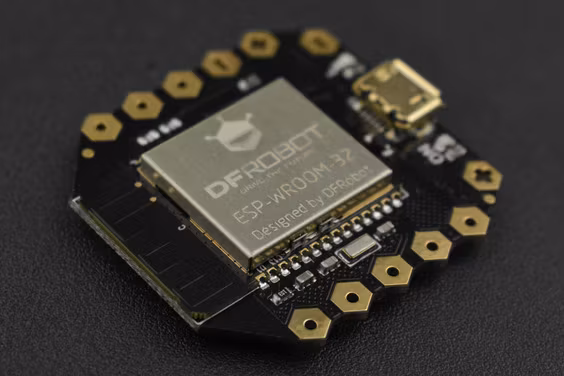

Integrate a Dual-Core ESP-WROOM-32 module. Support MCU and Wi-Fi &Bluetooth dual-mode communication. V shaped gilded I/O interface, can be sewn on clothes directly.

FEATURES

  • A small size of 35mm×34mm
  • Enable users to directly download and debug programs through Micro USB, free from programmer.
  • Large-scale I/O ports with gold plating, easy to screw wire on it or to sew the board on the clothes with wires, no need to solder.
  • A group of gold plating power interfaces of honeycomb type, convenient to use.
  • Integrate WIFI and Bluetooth

SPECIFICATION

  • USB Supply Voltage: 5.0V
  • VIN Supply Voltage: DC 3.5-6.5V
  • Processor: Tensilica LX6 dual-core processor (One for high speed connection; one for independent programing)
  • Frequency: 240MHz
  • SRAM: 520KB
  • Flash: 16Mbit
  • Wi-Fi Standard: FCC/CE/TELEC/KCC
  • Wi-Fi Protocol: 802.11 b/g/n/d/e/i/k/r(802.11n, high speed can reach to 150 Mbps),  converge A-MPDU and A-MSDU, supporting 0.4us protecting interval.
  • Frequency Range: 2.4~2.5GHz
  • Bluetooth Protocol: comply with BR/EDR/BLE standard of Bluetooth v4.2.
  • On-chip Clock: 40MHz crystal and 32.768 KHz crystal

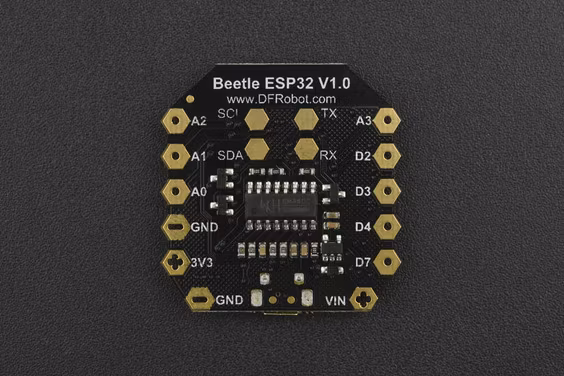

  • Digital Interface: D2, D3, D4, D7
  • Analog Interface: A0, A1, A2, A3
  • I2C: 1
  • Serial Port: 1

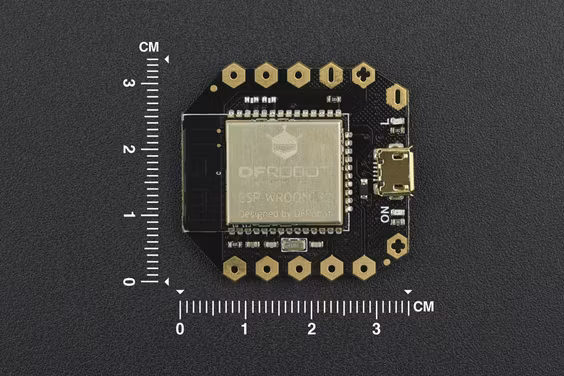

  • Dimension: 35×34mm/1.38×1.34"

DOCUMENTS

SHIPPING LIST

  • Beetle ESP32 Microcontroller               x1
