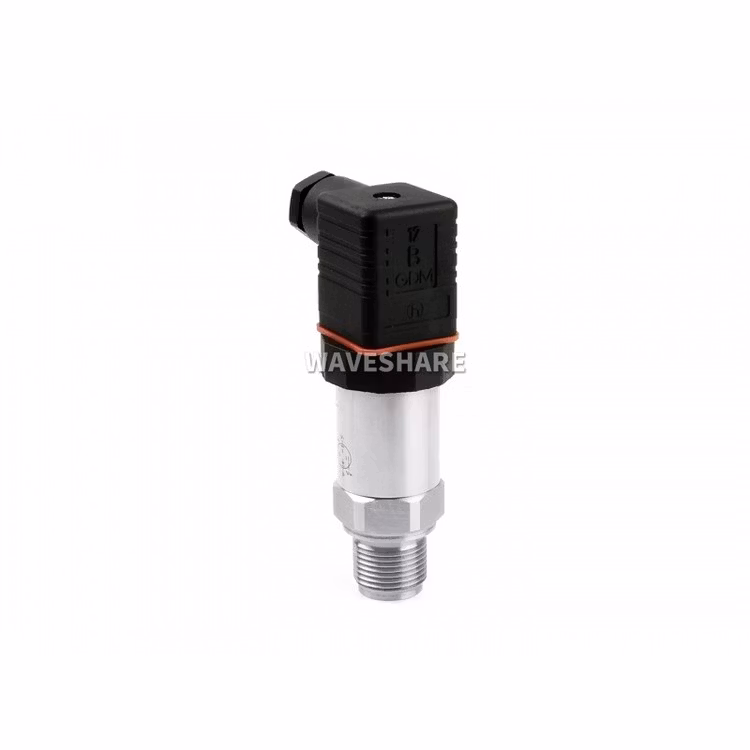

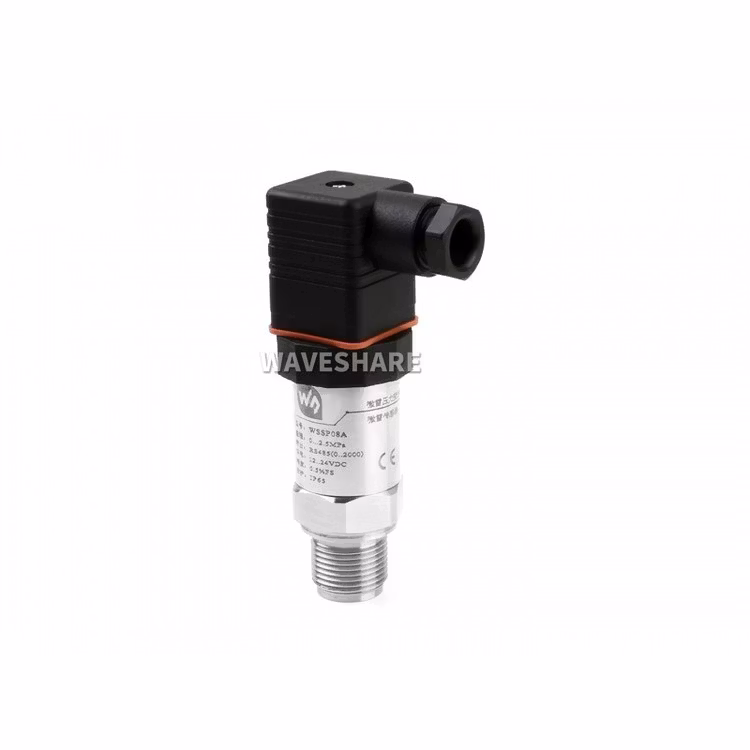

Industrial 2.5MPa Pressure Transmitter, RS485 Bus

  • 499 kr

Industrial 2.5MPa Pressure Transmitter, Grade-A Diffused Silicon Transducer, RS485 Bus, Hydraulic / Barometric / Oil Pressure SensorINDUSTRIAL PRESSURE TRANSMIT

I lager.
Lagersaldo: 1
Artikelnummer: 908
Dela
  • Information

Industrial 2.5MPa Pressure Transmitter, Grade-A Diffused Silicon Transducer, RS485 Bus, Hydraulic / Barometric / Oil Pressure Sensor

INDUSTRIAL PRESSURE TRANSMITTER

Wide Range Input Voltage, Non-Linear Correction, High Accuracy

Small Size, Easy Installation



Features At A Glance

  • Digital output, via RS485 (standard Modbus-RTU protocol)
  • Film isolation technology, features corrosion-resistant and obstruction-proof, effectively extend the instrument lifespan
  • Integrated chip, small size, easy installation, and wide range input voltage
  • IP65 protection rate，cut-off frequency design, strong anti-interference capability
  • Protections including: current limited, voltage limited, reverse proof (limited output current)
  • Measurement accuracy up to 0.5% FS

Specifications

MEASURED MEDIUMLiquid, gas (compatible with contact material)OVERLOAD200% full range
PRESSURE RANGE0~2.5MPa gauge pressureACCURACY0.5% FS
POWER SUPPLY12~24V DCSTABILITY±0.2% FS/year
OUTPUT SIGNALRS485 (standard Modbus-RTU protocol)PROTECTION RATINGIP65
TEMP. COMPENSATION-10~70℃FULL WEIGHT190±5g
TEMP. DRIFT±0.2% FS/℃ (in compensation range)SHOCK RESISTANT10g (20~2000HZ)
OPERATING ENVIRONMENTMedium temperature: -40~85℃
Ambient temperature: -40~85℃
Ambient humidity: 0%~95% RH (non-condensing, non-frosting)
MATERIALFilm: 316L stainless steel (contacted)
Intermediate junction: 304 stainless steel (contacted)
Shell: 304 stainless steel
Sealing: Buna-N rubber (contacted)
Hirschmann connector: ABS engineering plastics

Digital Output

Using RS485 Bus, Standard Modbus-RTU Protocol

The USB TO RS485 in the photo is NOT included.

Accurate Measurement

Up To 0.5％FS Accuracy

High Ingress Protection Rating

IP65 Protection Rating, Protected From Dust And Low Pressure Water Jets From Any Direction

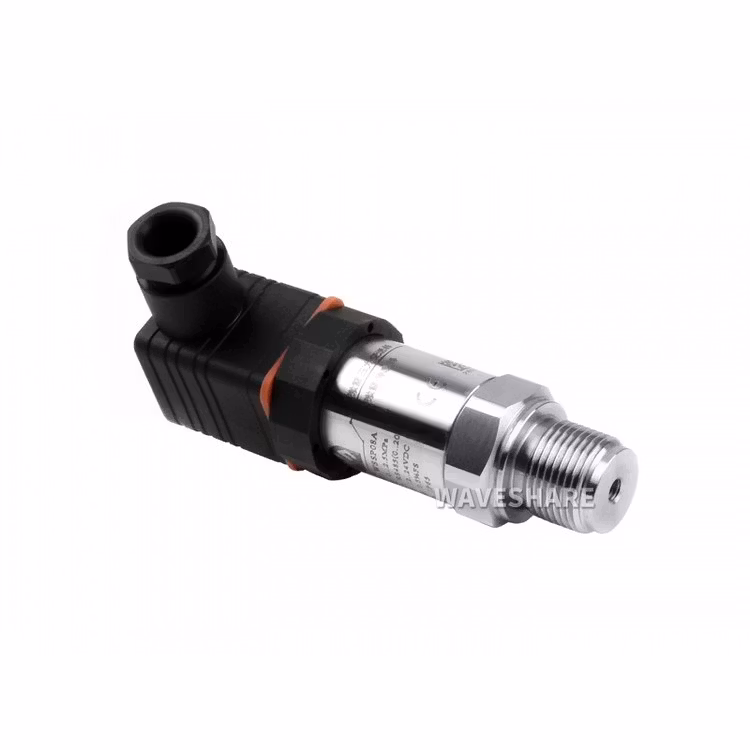

Details Show

Application Examples

Connection Example

The cable in the photo is NOT included.

Outline Dimensions

Resources & Services

Wiki: WSSP08A

Shipping

Weight: 0.224 kg

  1. WSSP08A x1

WSSP08A
