Coral Camera Module

I lager.

449 kr

Artikelnummer: 373

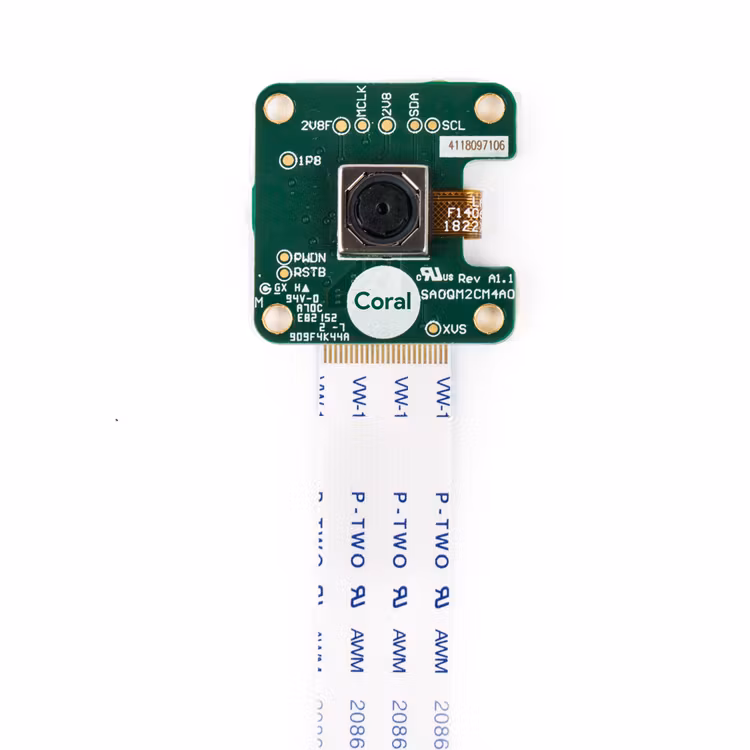

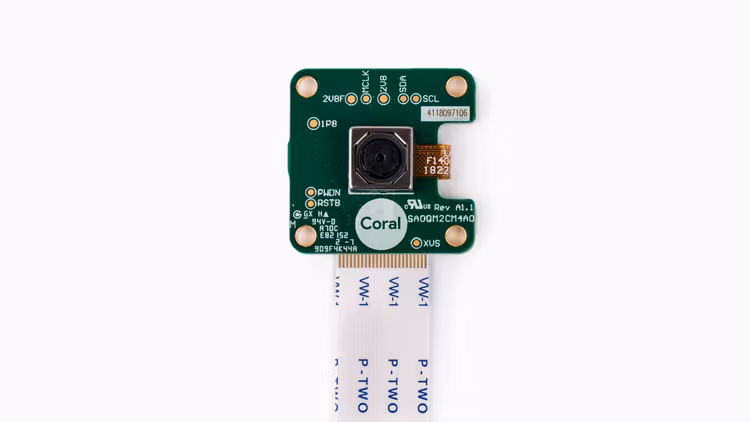

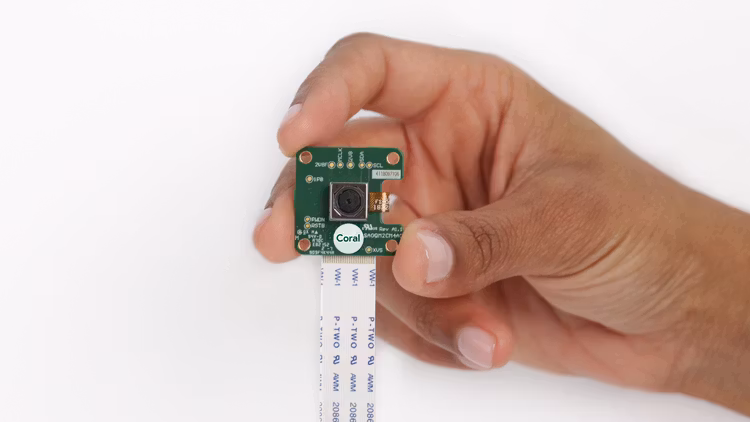

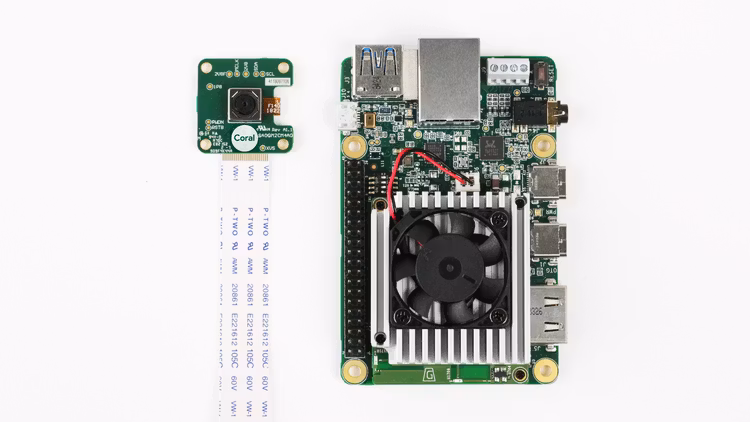

The Coral Camera is a 5MP camera designed for use with the Coral Dev Board, providing input for computer vision use cases.  The camera attaches to the Coral Dev Board’s MIPI CSI interface with a with a 24-pin FFC.

Coral is a division of Google, that helps you build intelligent ideas with our platform for local AI. Our Dev Board features Google’s Edge TPU chip for fast ML inferencing on device.


  • ISP function: Automatic exposure control (AEC), automatic white balance (AWB), automatic band filter (ABF), automatic 50/60 Hz lumination, automatic blacklevel calibration (ABLC).
  • Image quality control: color saturation, hue, gamma, sharpness, lens correction, defective pixel canceling, and noise canceling.
  • Support autofocus control (AFC) with embedded AF VCM Driver.
  • For more information about the sensor, read about the Omnivision SOC.


  • 5-megapixel OmniVision sensor

  ·1.4um x 1.4um pixel

  ·Active array size 2582x1933

  • Optical size: ¼”
  • Field of view: 84.0° / 87.6°
  • F-number: F=2.2 ±5%
  • TV distortion: <1.5%
  • Focal length: 2.5mm
  • Focusing range: 10cm ~ ∞
  • Dual lane MIPI output interface
  • Board dimensions: 25 x 25 mm

Tech specs

SensorOmnivision OV5645 SoC (built in ISP)
Focusauto focus, focal length 2.5mm, range 10cm-infinity
Field of View84.0 degrees / 87.6 degrees
ISP Functionsauto exposure control, Auto white balance, auto band filter, auto 50/60Hz lumination, auto blacklevel calibration
ConnectionsMIPI-CSI, dual lane MIPI interface
Dimensions25mm x 25mm

Part List

1 x Coral Camera Module
