Industrial Gigabit PoE Splitter, Metal Case protection, 5V 2.5A Type-C Out

I lager.

299 kr

Artikelnummer: 20987

Ny produkt förbeställning.

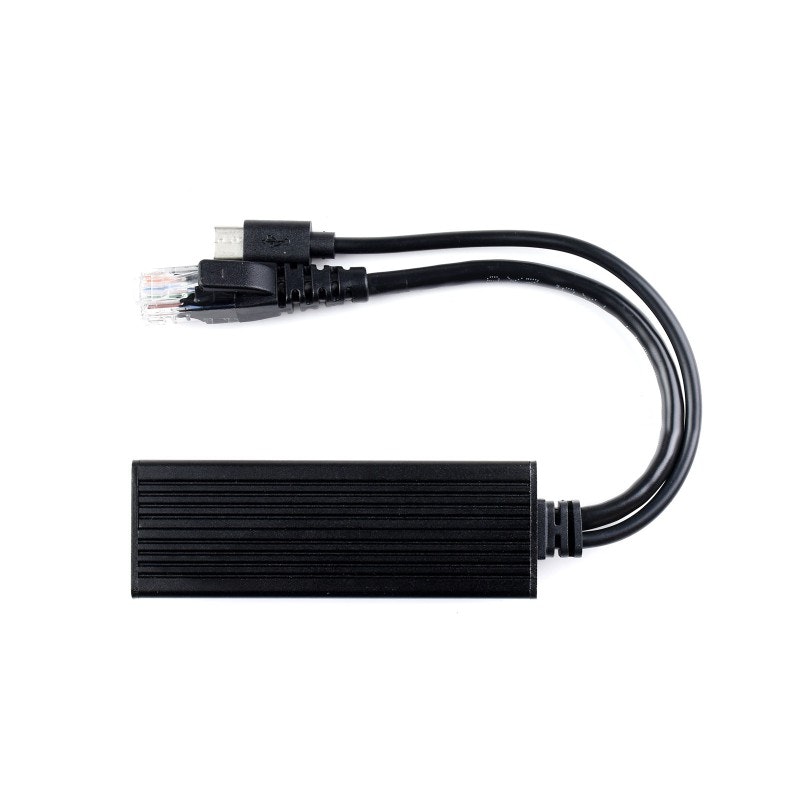

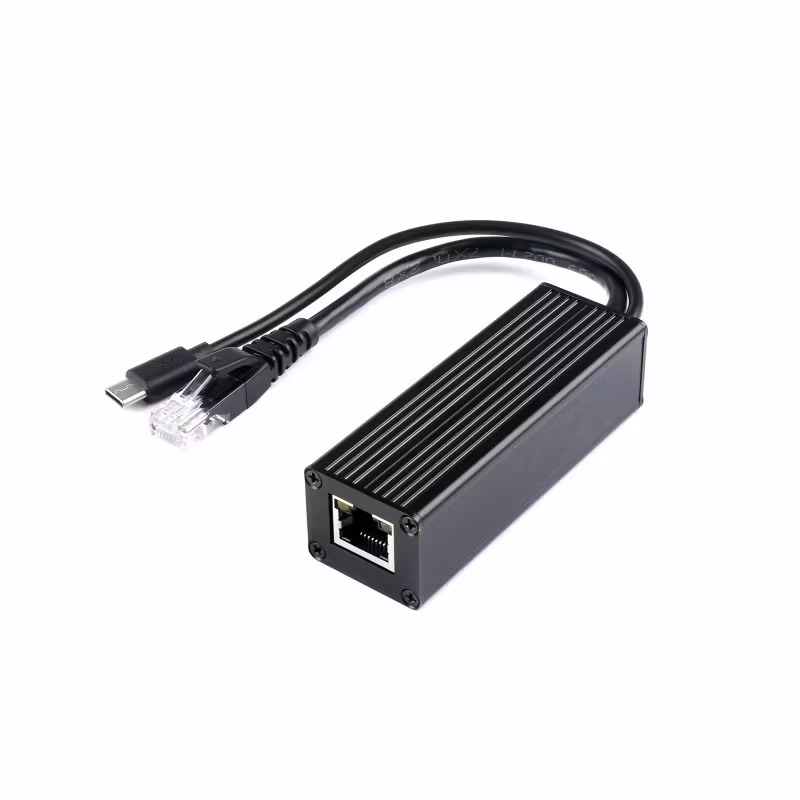

Industrial Gigabit PoE Splitter, Metal Case Protection, 5V 2.5A Type-C Power Output

Industrial Gigabit PoE Splitter

5V 2.5A Type-C power output

IEEE 802.3af/at-compliant Gigabit Ethernet



Features At A Glance

  • Incorporates original chip Si3404, high-efficiency, high-safety, stable-performance
  • 10/100/1000Mbps auto-negotiation Ethernet port
  • 802.3af/at-compliant PoE (Power over Ethernet) standard
  • Isolated SMPS (Switching Mode Power Supply), effectively protecting the powered device
  • 5V DC output, suitable for powering Raspberry Pi and other small-scale network devices
  • Black dull-polish metal case, sturdy and rugged, higher protection level, better heat dissipation

Specifications

POWER SUPPLYsupports 1/2(+); 3/6(-); 4/5(+); 7/8(-) powering
POE INPUT VOLTAGE37V ~ 57V
TYPE-C OUTPUT5V 2.5A (MAX)
CABLECat-5 UTP
STANDARDIEEE 802.3 af/at PoE Ethernet
DATA RATE10/100/1000Mbps
LED INDICATORPoE power input indicator
DIMENSIONS86 × 30 × 25mm (l × w × h)
OPERATING TEMPERATURE-40℃ ~ 85℃

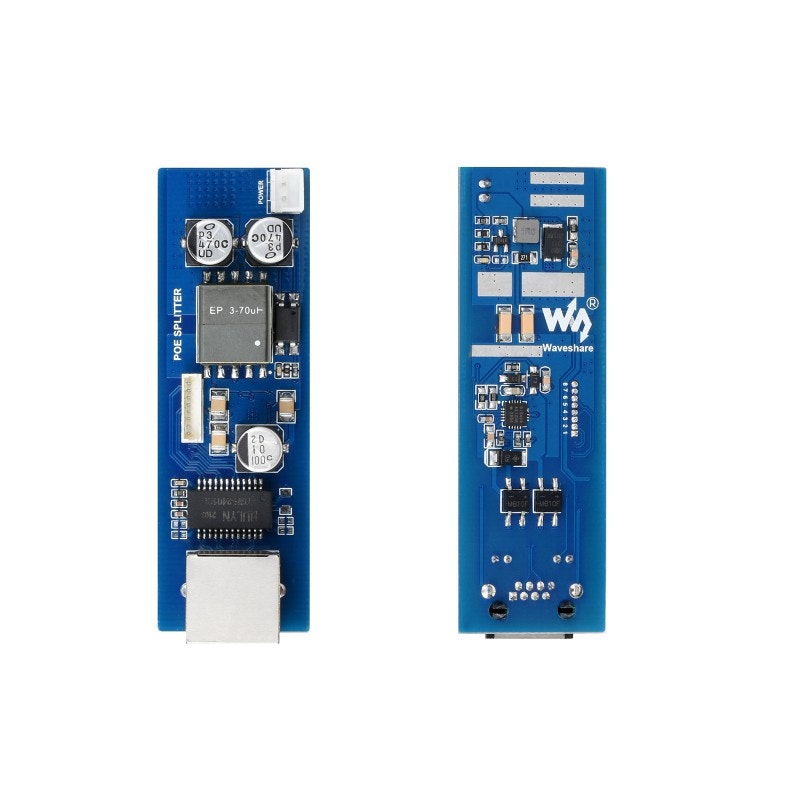

Original Chip Solution

Incorporates Si3404, High-Integration, High-Efficiency, More Safe And Reliable

Switching Mode Power Supply (SMPS)

Isolated Circuit Protection, Effectively Protecting The Powered Device

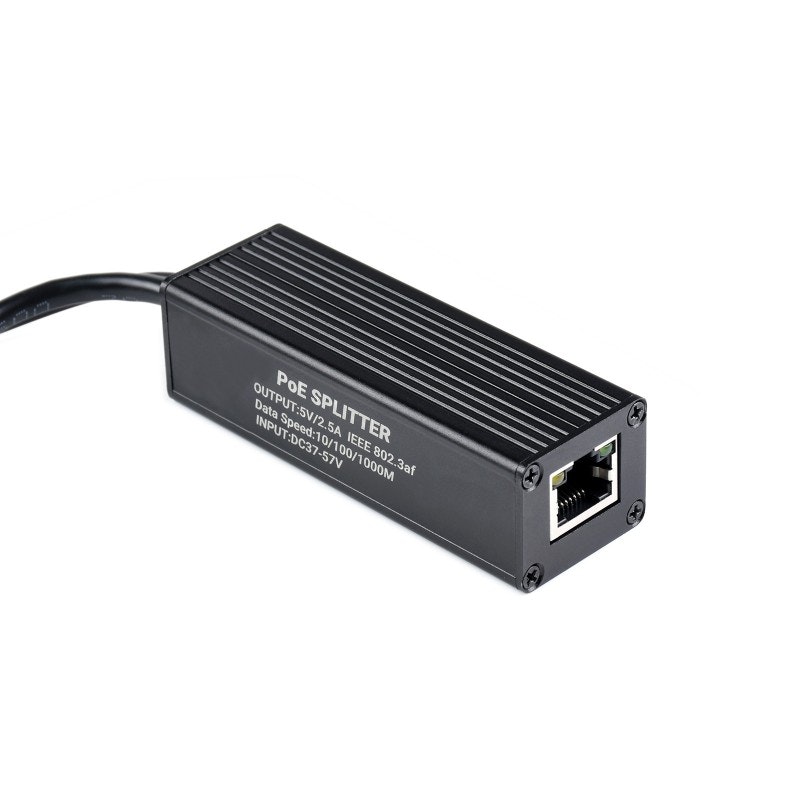

Industrial Grade Protection Case

Aluminum Alloy Case, Sturdy And Rugged, Higher Protection Level, Better Heat Dissipation

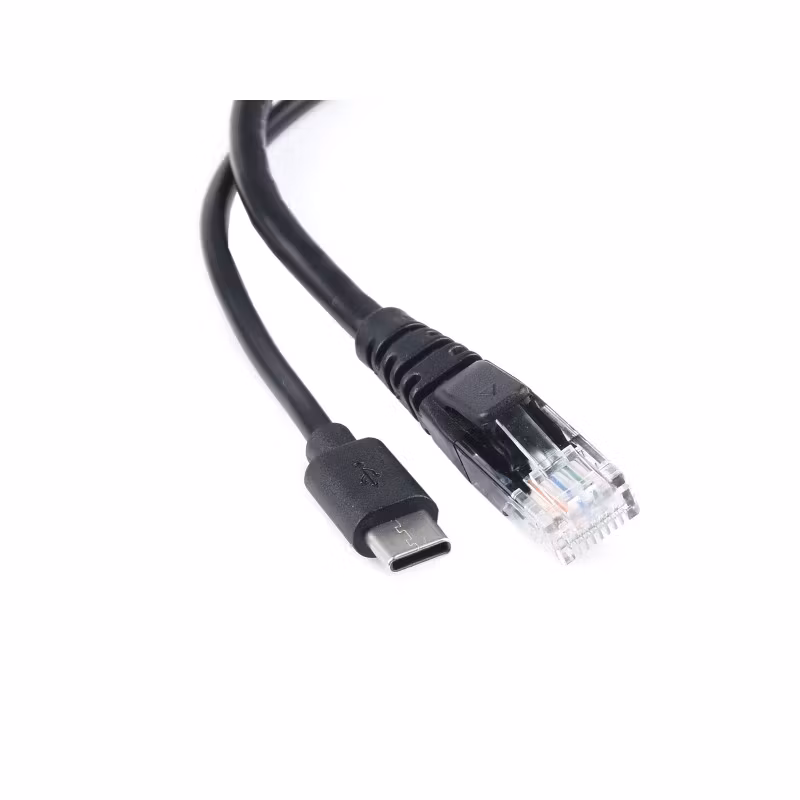

Interface Introduction

Application Examples

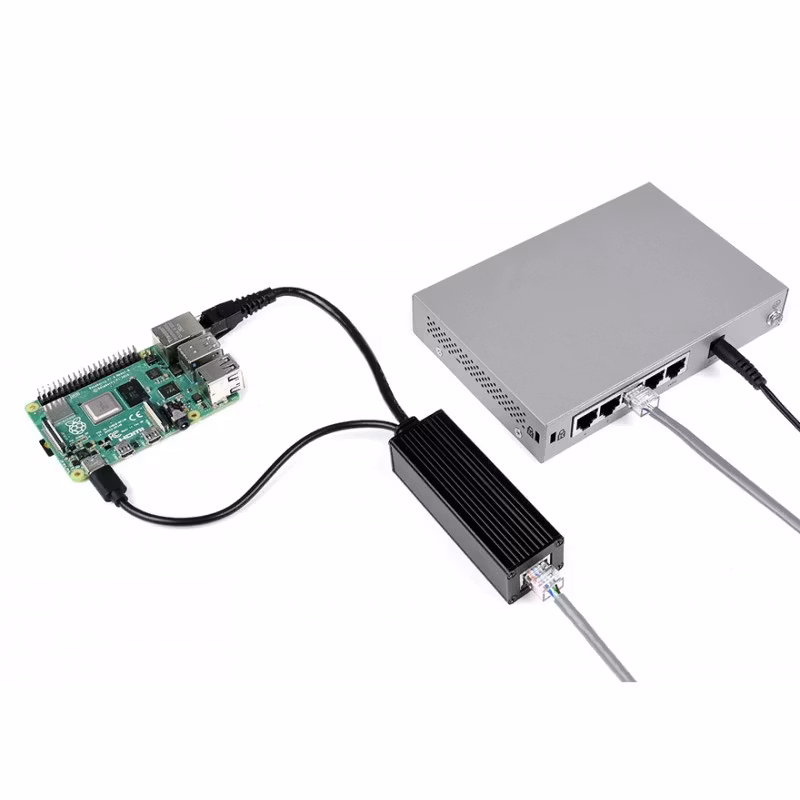

Powering The Raspberry Pi Or Other 5V-Powered Network Devices By PoE Switch



for reference ONLY, Raspberry Pi and switch are NOT included.

Outline Dimensions


Wiki: POE-SPLITTER-TYPE-C

Shipping list

Weight: 0.087 kg

  1. POE-SPLITTER-TYPE-C x1
