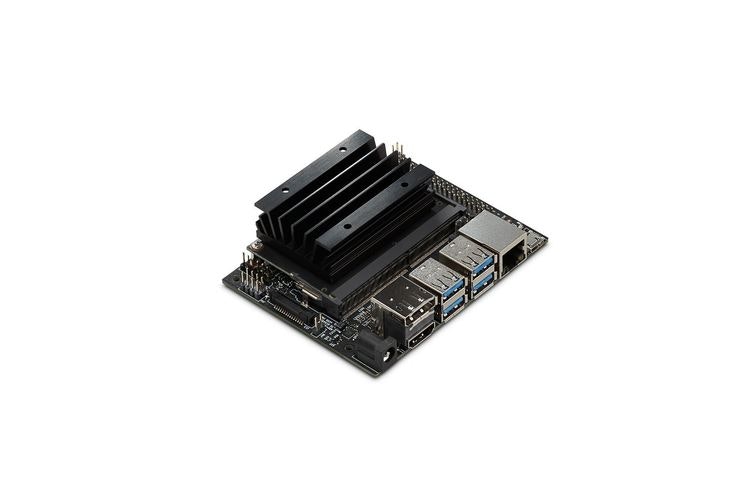

NVIDIA Jetson Nano Developer Kit

1 449 kr

I lager 1 st

NVIDIA Jetson Nano möjliggör utvecklingen av miljontals nya små AI-system med låg effekt. Det öppnar nya världar av inbyggda IoT-applikationer, inklusive nätverksvideooptagare på nätverksnivå (NVR), hemrobotar och intelligenta gateways med fullständiga analysfunktioner.

The NVIDIA® Jetson Nano™ Developer Kit delivers the compute performance to run modern AI workloads at an unprecedented size, power, and cost. Developers, learners, and makers can now run AI frameworks and models for applications like image classification, object detection, segmentation, and speech processing.

The developer kit can be powered by micro-USB and comes with extensive I/Os, ranging from GPIO to CSI. This makes it simple for developers to connect a diverse set of new sensors to enable a variety of AI applications. It’s incredibly power-efficient, consuming as little as 5 watts.

Jetson Nano is also supported by NVIDIA JetPack, which includes a board support package (BSP), Linux OS, NVIDIA CUDA®, cuDNN, and TensorRT™ software libraries for deep learning, computer vision, GPU computing, multimedia processing, and much more. The software is even available using an easy-to-flush SD card image, making it fast and easy to get started.

The same JetPack SDK is used across the entire NVIDIA Jetson™ family of products and is fully compatible with NVIDIA’s world-leading AI platform for training and deploying AI software. This proven software stack reduces complexity and overall effort for developers.

Key Features

 Jetson Nano Module

> 128-core NVIDIA Maxwell™ GPU

> Quad-core ARM® A57 CPU

> 4 GB 64-bit LPDDR4

> 10/100/1000BASE-T Ethernet

 Power Options

> Micro-USB 5V 2A

> DC power adapter 5V 4A

 I/O

> USB 3.0 Type A

> USB 2.0 Micro-B

> HDMI/DisplayPort

> M.2 Key E

> Gigabit Ethernet

> GPIOs, I2 C, I2 S, SPI, UART

> MIPI-CSI camera connector

> Fan connector

> PoE connector

 Kit Contents

> NVIDIA Jetson Nano module and carrier board

> Quick Start Guide and Support Guide

NVIDIA JETSON NANO DEVELOPER KIT
TECHNICAL SPECIFICATIONS

DEVELOPER KIT
GPU
128-core Maxwell
CPU
Quad-core ARM A57 @ 1.43 GHz
Memory
4 GB 64-bit LPDDR4 25.6 GB/s
Storage
microSD (not included)
Video Encoder
4K @ 30 | 4x 1080p @ 30 | 9x 720p @ 30 (H.264/H.265)
Video Decoder
4K @ 60 | 2x 4K @ 30 | 8x 1080p @ 30 | 18x 720p @ 30|
(H.264/H.265)
Camera
1x MIPI CSI-2 DPHY lanes
Connectivity
Gigabit Ethernet, M.2 Key E
Display
HDMI 2.0 and eDP 1.4
USB
4x USB 3.0, USB 2.0 Micro-B
Others
GPIO, I2C, I2S, SPI, UART
Mechanical
100 mm x 80 mm x 29 mm



Documents

NVIDIA JetPack SDK

Development Kit User Guide

FAQ

Technical Blog

NVIDIA Jetson™ family for products

Grove Python Libraries for Nvidia Jetson Nano

Part List:

1 x NVIDIA® Jeston Nano™ Developer Kit

ECCN/HTS


ECCN
3A991.a
HSCODE
8543709990
USHSCODE
85177000
UPC
