UCTRONICS PoE Gigabit Splitter 5V 4A – Active PoE+ to Barrel Jack, IEEE 802.3at
New shipping at the end of dec. 2020

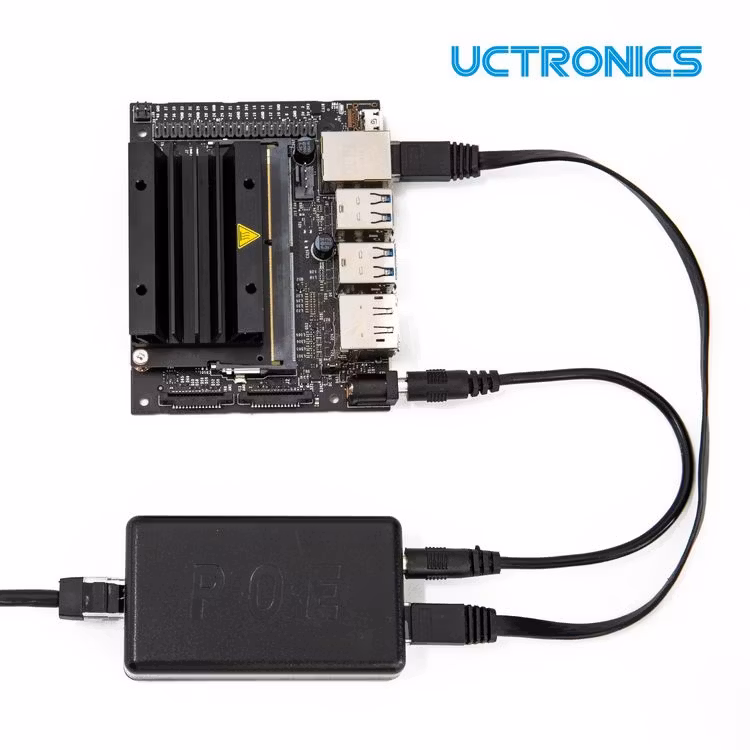

UCTRONICS PoE Splitter 5V 4A – Active PoE+ to Barrel Jack, IEEE 802.3at Compliant for Jetson Nano PoE, Security Camera, and More.
UCTRONICS UC-3AT-DC IEEE 802.3at Gigabit PoE Splitter U6114 is used to split the PoE signal into 5V power supply and Ethernet in RJ45, so that non-PoE devices can be powered over Ethernet.
PoE enables you to deliver power and data with a single Ethernet cable, and thus fewer wall plugs are needed and fewer cables are messed. It also helps you extend powerline to where there are no AC outlets nearby but your Ethernet cable can reach.
- Standards: IEEE 802.3at
- Power Input: IEEE 802.3at PoE / 50-57V 600mA
- PoE Port: 10/100/1000Mbps
- LAN Port: RJ45
- Power Output: 20W Max (5V/4A)
- Safety & Emissions: FC, CE, RoHS
- Operating Temp.: 0℃～40℃(32℉～104℉)
- Storage Temp.: -40℃～70℃(-40℉～158℉)
- Operating Humidity: 10%～90% RH, Noncondensing
- Storage Humidity: 5%～90% RH, Noncondensing

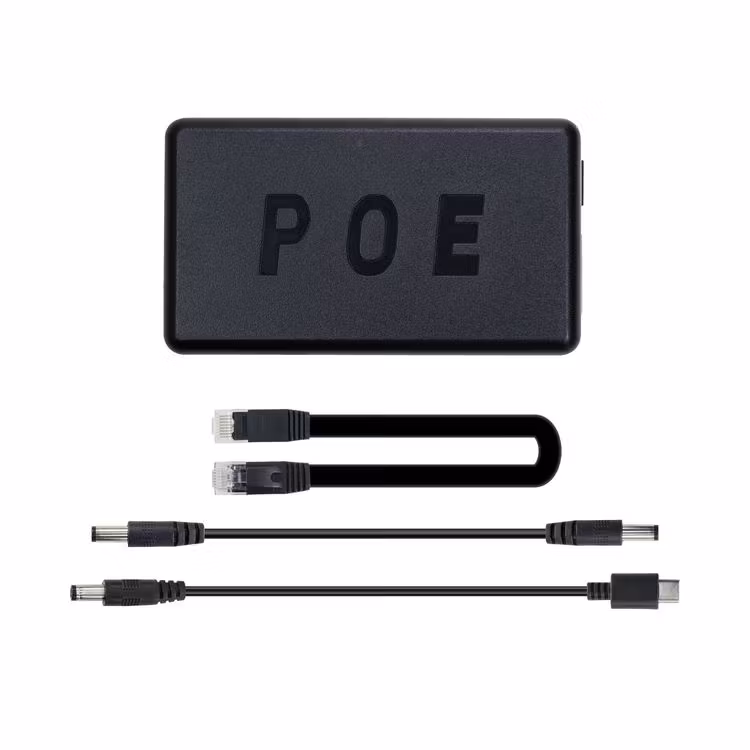

- UCTRONICS UC-3AT-DC IEEE 802.3at Gigabit PoE Splitter

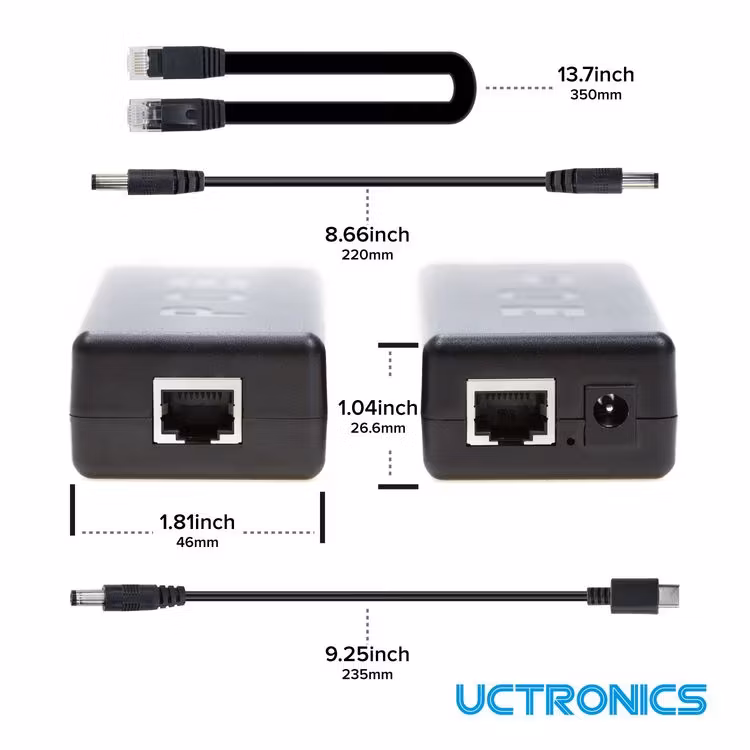

- One 5.5×2.1mm Barrel Male to USB Type C Male Adapter
- One 5.5×2.1mm Barrel Male to 5.5×2.1mm Barrel Male Adapter
- One Ethernet Cable
- User guide
- You need an PoE switch or injector (IEEE 802.3at recommended) to serve as the PSE (Power Source Equipment,) and Ethernet cables to connect to your devices.
