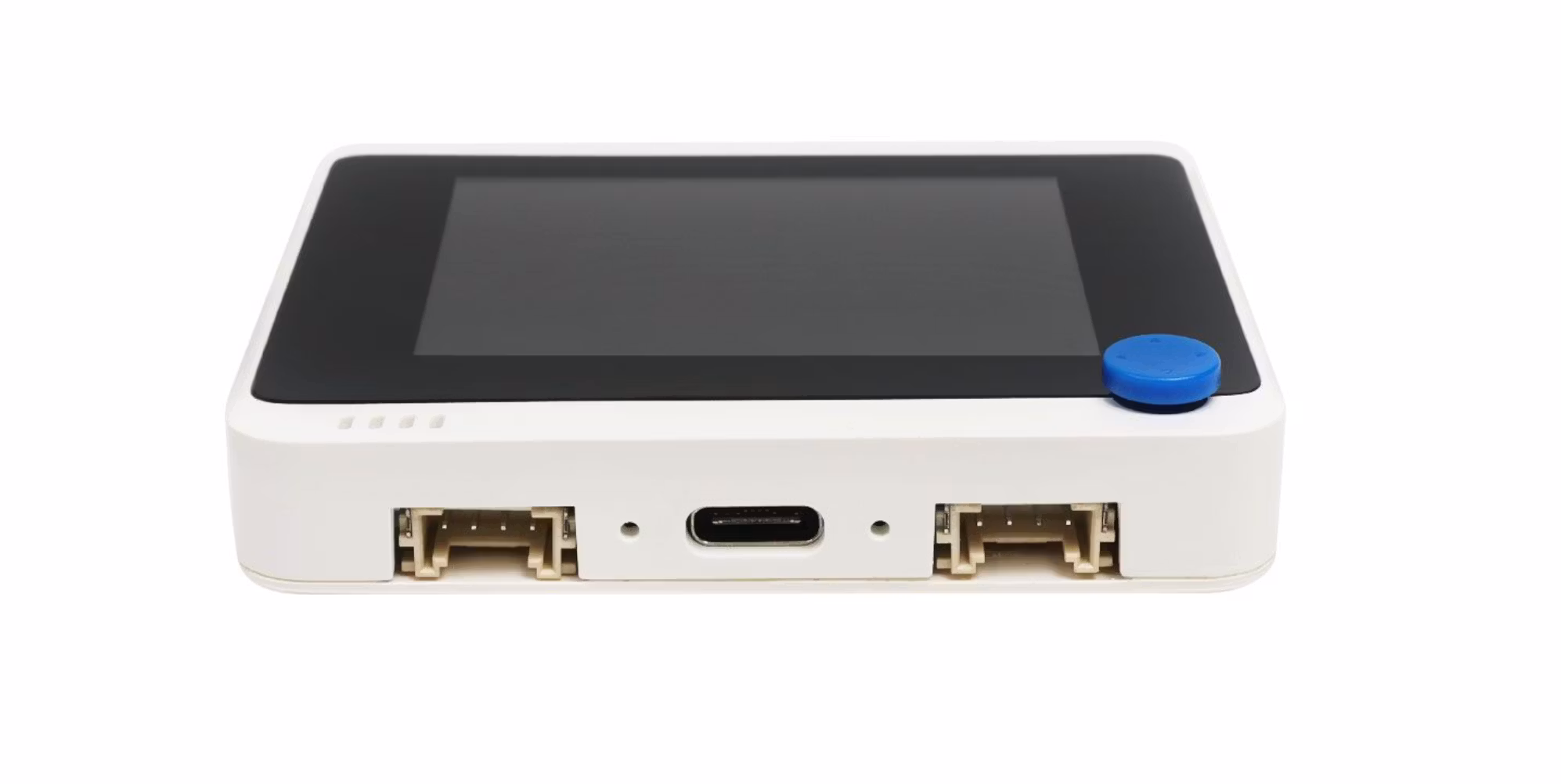

Wio Terminal: ATSAMD51 Core with Realtek RTL8720DN BLE 5.0 & Wi-Fi 2.4G/5G Dev Board

The Wio (Wireless Input and Output) platform (Wio Link, Wio Nodes,etc.) was first introduced to the world at the end of 2015 by Seeed.

Today a new WIO member is joining the family - Wio Terminal. Instead of being a single embedded functional module, Wio Terminal is more of a complete system, equipping with Screen + Development Board + Input/Output Interface + Enclosure. Make it an efficient and Product-Ready Product.

With Raspberry Pi

MicroPython

Gaming Dev

  • Sensing and tagging the Real-World data with over 300 Grove created by Seeed
  • A pythonic way to use a 100% open-source Hardware.
  • Build your program interpreter starting from 90%.

Compatible with Arduino and Micropython, Wio Terminal is an ATSAMD51-based microcontroller with wireless connectivity supported by Realtek RTL8720DN. It runs at 120MHz (Boost up to 200MHz) and supports both Bluetooth and Wi-Fi providing the backbone for IoT projects. The Wio Terminal itself is equipped with a 2.4” LCD Screen, onboard IMU(LIS3DHTR), microphone, buzzer, microSD card slot, light sensor, and infrared emitter(IR 940nm). On top of that, it also has two multifunctional Grove ports for Grove Ecosystem and Raspberry pi 40-pin compatible GPIO for more add-ons.

With Wio Terminal:

  • Wio Terminal + Grove = IoT System
  • Wio Terminal + Raspberry Pi = Edge Computing System
  • Wio Terminal + Customized add-ons = Handheld devices or endless possibilities!

Key Features

Wio-Terminal-KeyFeatures

Highly Integrated Design

  • MCU, LCD, WIFI, BT, IMU, Microphone, Buzzer, microSD Card, Configurable Buttons, Light Sensor, 5-Way Switch, Infrared Emitter (IR 940nm), Crypto-authentication Ready

Powered by Microchip ATSAMD51P19

  • ARM Cortex-M4F core running at 120MHz (Boost up to 200MHz)
  • 4 MB External Flash, 192 KB RAM
  • Comprehensive Protocol Support
  • SPI, I2C, I2S, ADC, DAC, PWM, UART(Serial)

Powerful Wireless Connectivity

  • Powered by Realtek RTL8720DN
  • Dual Band 2.4Ghz / 5Ghz Wi-Fi (802.11 a/b/g/n)
  • BLE / BLE 5.0

USB OTG Support

  • USB-Host
  • Accessible Devices: Mouse, Keyboard, MIDI Devices, Xbox/PS Gaming Controllers, 3D Printers
  • USB-Client
  • Simulated Devices: Mouse, Keyboard, MIDI Devices

Grove Ecosystem

  • 300+ Grove modules to explore with IoT
  • Two onboard multi-functional Grove ports can be used for Digital, Analog, I2C, and PWM

Raspberry Pi 40-pin Compatible

  • Can be mounted to a Raspberry Pi as a slave device
  • Raspberry Pi's HAT can be used with an adapter cable

Software Support

  • Arduino
  • MicroPython
  • ArduPy
  • AT Firmware

Demo

attention icon

Note

If you are interested in our demos, detailed tutorials and Arduino libraries can be found in our wiki.

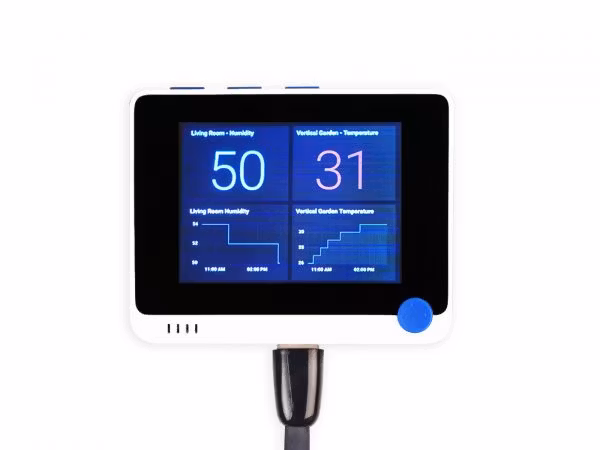

Wio Terminal Displaying onboard IMU data in realtime

Wio-Terminal-Gyro

Wio Terminal Displaying and Storing Light Sensor Data

Wio-Terminal-Light

Applications

  • Python Terminal Device
  • Data Collection Device for Machine Learning
  • Hand-held Device
  • Retro Gaming Device
  • IoT Controller
  • Education
  • Prototyping
  • Slave device / Accessories for Raspberry Pi

Pinout Diagram

Wio-Terminal-Pinout

Hardware Overview

Wio-Terminal-HardwareOverview

Setup, Documentation, and Support

Please visit our wiki for more information about Wio Terminal.

ATSAMD51N19A Datasheet

Wio Terminal Schematics

Learn

Wio Terminal Getting Started

This is the wiki page for this product, which will show you how to use the product, as well as details about the software and hardware.

Wio Terminal running USB-Host

Wio Terminal can run as USB-Host and use USB devices

Technical Specification


Main Chip

Manufacturer Part Number

ATSAMD51P19

Core Processor

ARM® Cortex®-M4F

Maximum Speed

200MHz

External Flash

4M

Operating Temperature

-40°C ~ 85°C (TA)

LCD Screen

Resolution

320x240

Display Size

2.4inch

Drive IC

ILI9341

Wireless Connectivity

Manufacturer Part Number

RTL8720DN

KM4 CPU

ARM® Cortex®-M4F

KM0 CPU

ARM® Cortex®-M0

Wi-Fi

802.11 a/b/g/n 1x1, 2.4GHz & 5GHz

Bluetooth

Support BLE / BLE5.0

Built-in Modules

Accelerometer

LIS3DHTR

Microphone

1.0V-10V -42dB

Speaker

≥78dB @10cm 4000Hz

Light Sensor

400-1050nm

Infrared Emitter

940nm

Interface

MicroSD Card Slot

Maximum 16GB

GPIO

40-PIN (Raspberry Pi Compatible)

Grove

2 (Multifunction)

FPC

20-Pins

USB Type-C

Power & USB-OTG

Operation Interface

5-Way Switch


Power/Reset Switch


User-defined button *3


Enclosure

Dimension

72mm*57mm*12mm

Materials

ABS+PC

Part List

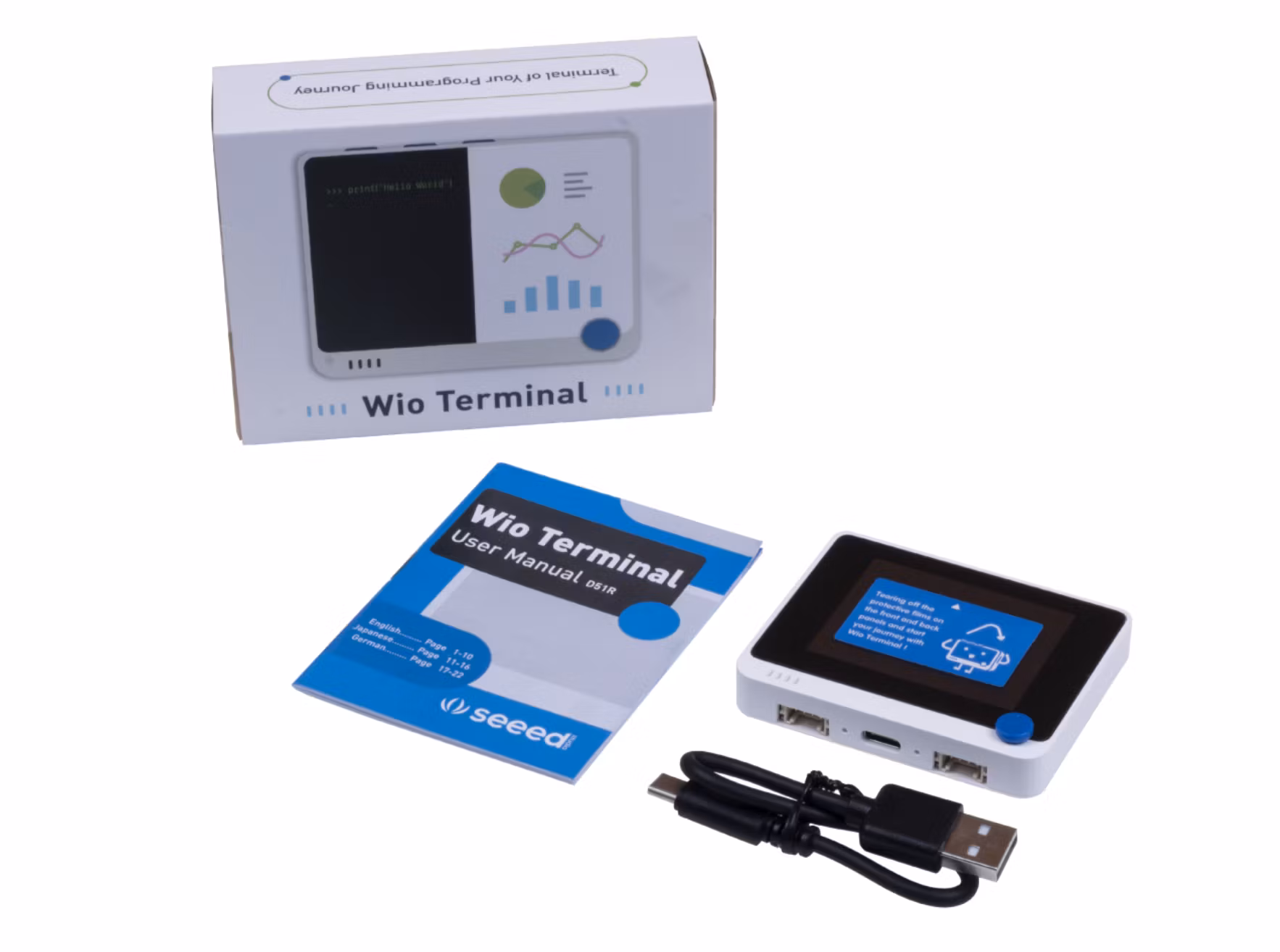

  • Wio Terminal
  • USB Type-C Short Cable
  • User Manual



ECCN/HTS

HSCODE
8543709990
UPC

FCC
1
