10.3inch flexible E-Ink display HAT for Raspberry Pi

I lager.

2 750 kr

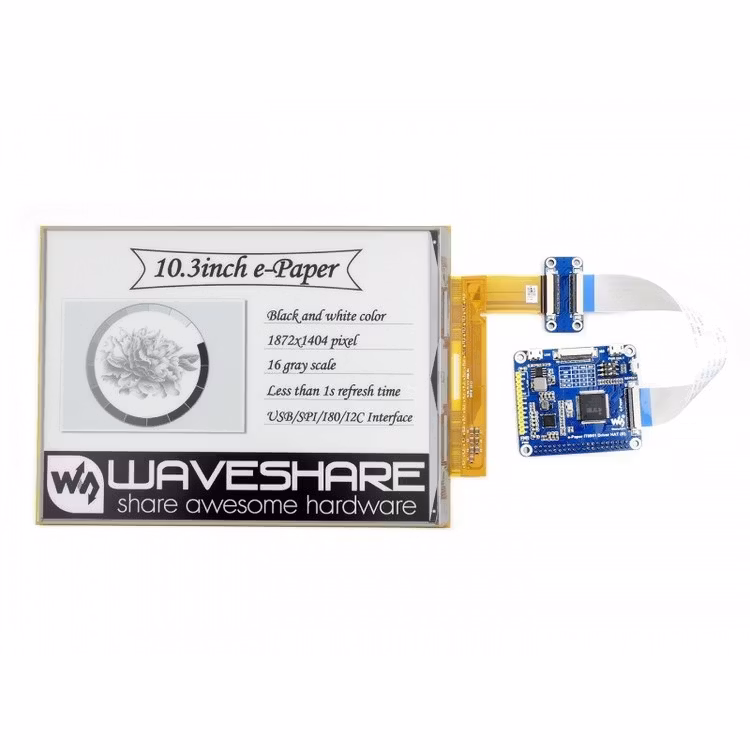

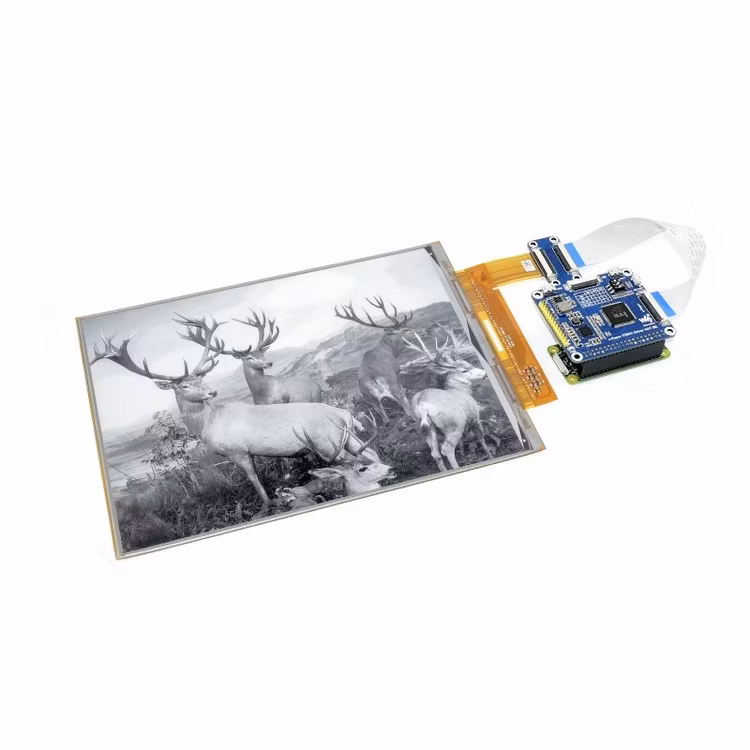

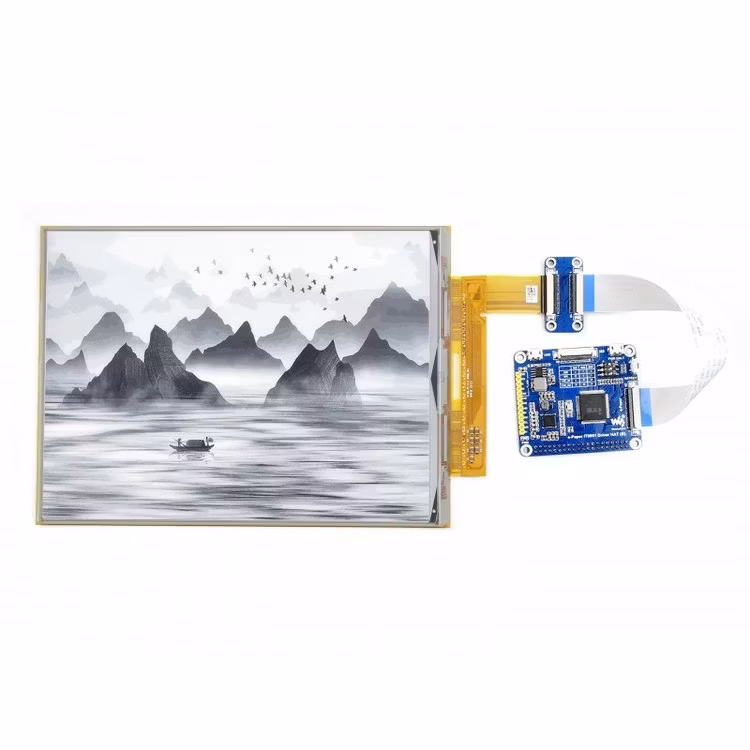

This is a flexible E-Ink display HAT for Raspberry Pi, 10.3inch, 1872×1404 resolution, with embedded controller IT8951, communicating via USB/SPI/I80/I2C interface, supports partial refresh.

Compared with normal e-Paper panels, this flexible panel allows bending without being damaged, and it's thinner and lighter.

Due to the advantages like low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as ebook reader, e-ink display, industrial instruments, and so on.

Features

  • Flexible e-Paper, the display section is bendable (DON'T bend the FPC section)
  • No backlight, keeps displaying last content for a long time even when power down
  • Low power consumption, basically power is only required for refreshing

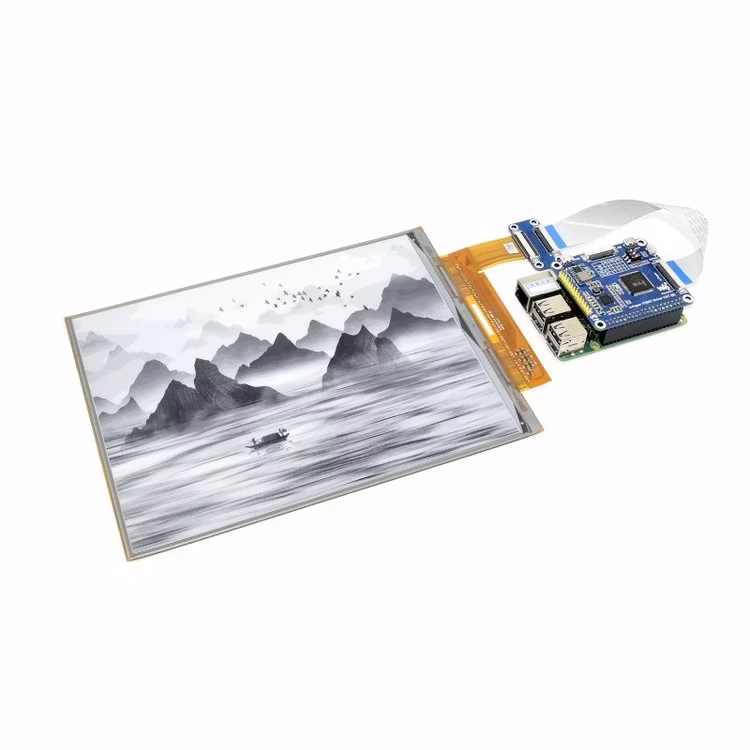

  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
  • USB/SPI/I80/I2C interface, for connecting with host boards like Raspberry Pi/Nucleo, etc.
  • Comes with development resources and manual (examples for Raspberry Pi/STM32)

Specifications

  • Operating voltage: 5V
  • Interface: USB/SPI/I80/I2C
  • Outline dimension: 227.7mm × 165.8mm × 0.647mm
  • Display size: 209.664mm × 157.248mm
  • Dot pitch: 0.112mm × 0.112mm
  • Resolution: 1872 × 1404
  • Display color: black, white
  • Gray scale: 2-16 (1-4 bit)
  • Full refresh time: 450ms
  • Total refresh power: 1.2W(typ.)
  • Total standby power: 0.1W(typ.)
  • Viewing angle: >170°

SPI Pinouts

SYMBOLDESCRIPTION
5VPower input
GNDGround
MISOSPI MISO pin
MOSISPI MOSI pin
SCKSPI SCK pin
CSSPI chip selection, low active
RSTExternal reset, low active
HRDYBusy status output, low active

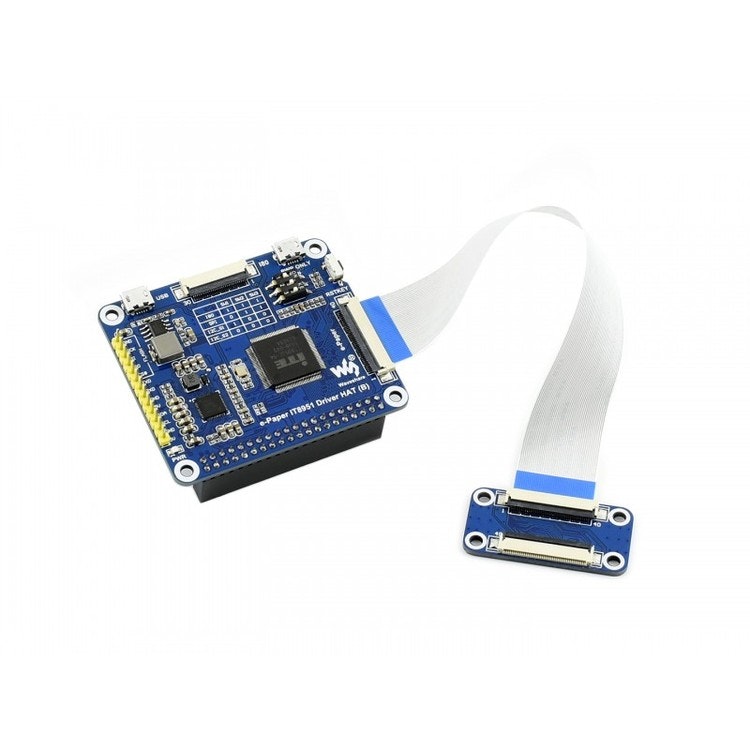

e-Paper IT8951 Driver HAT (B) Dimensions

Development Resources

Wiki : www.waveshare.com/wiki/10.3inch_e-Paper_HAT_(D)
