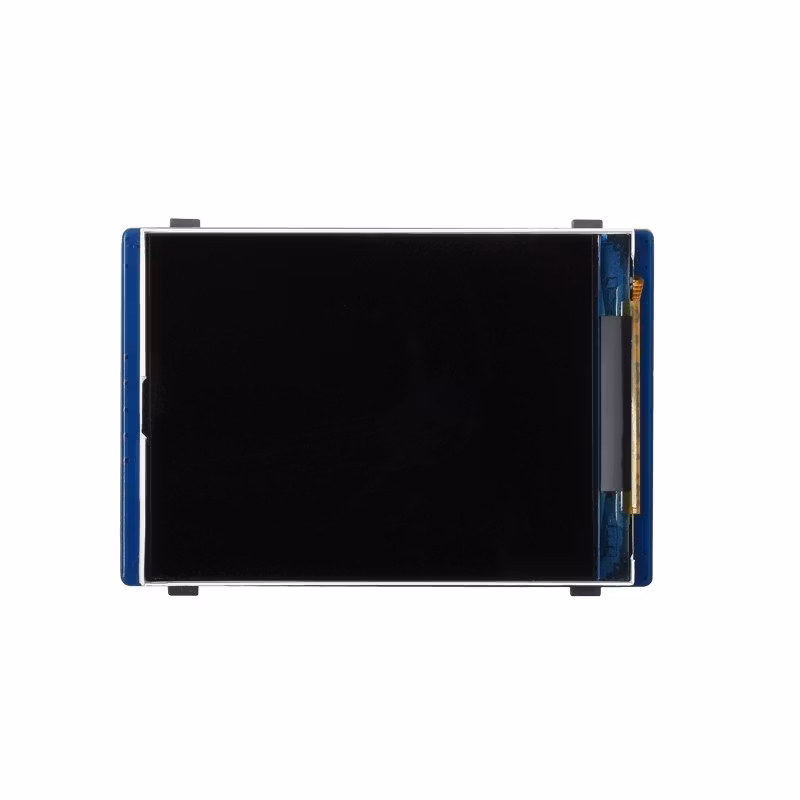

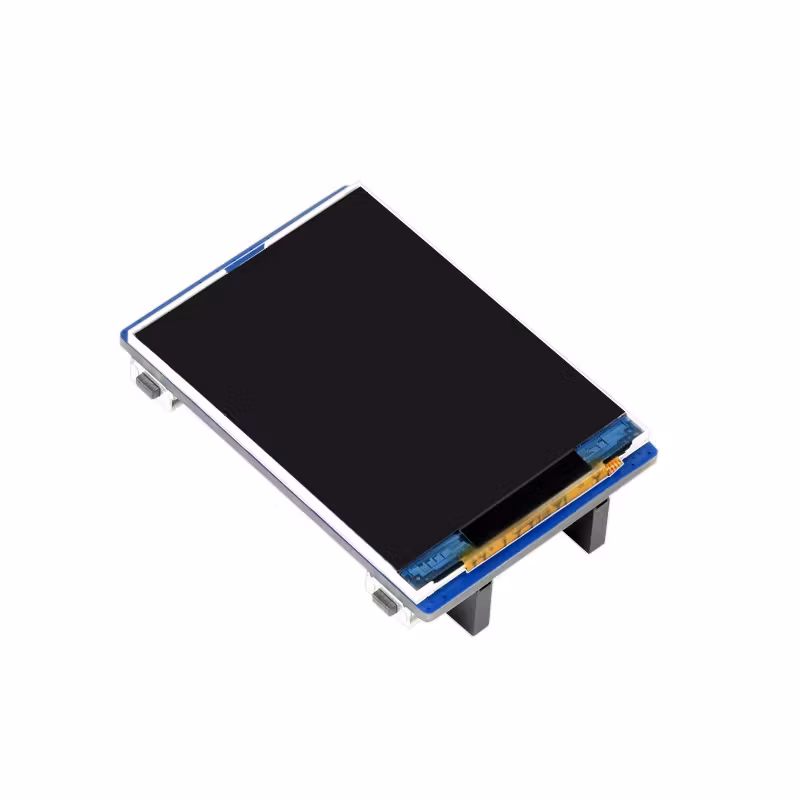

2inch LCD Display Module for Raspberry Pi Pico, 65K Colors, 320×240, SPI

  • 299 kr

2inch LCD Display Module For Raspberry Pi Pico, 65K RGB Colors, 320×240 Pixels, SPI Interface. 2" LCD Display Module For Pico. Embedded ST7789VW Driver, Us

I lager.
Lagersaldo: 2
Artikelnummer: 1164
Dela

2inch LCD Display Module For Raspberry Pi Pico, 65K RGB Colors, 320×240 Pixels, SPI Interface. 2" LCD Display Module For Pico. Embedded ST7789VW Driver, Using SPI Bus, Comes with Raspberry Pi Pico C/C++ and MicroPython Demo



Size 2"



Resolution 320×240

Display Color 65K RGB

Interface SPI

Display Panel  IPS


Driver ST7789VW

Features At A Glance

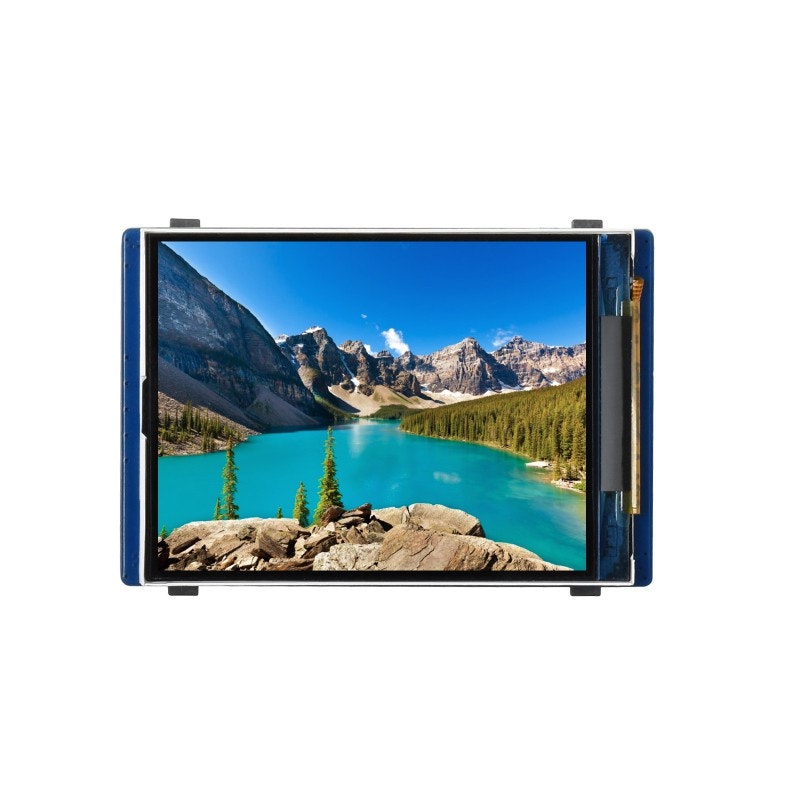

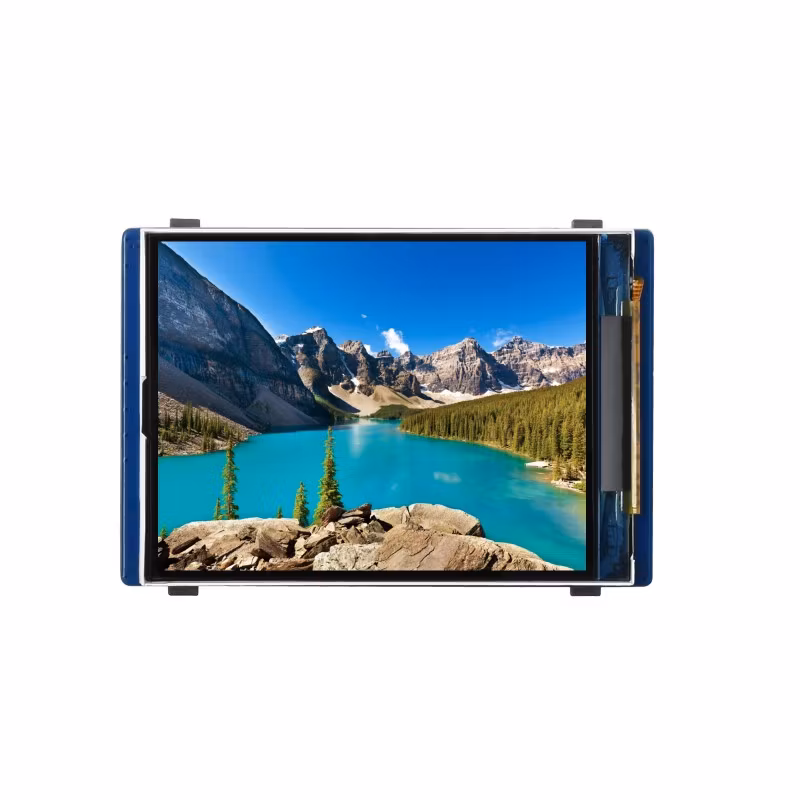

  • 320×240 resolution, IPS screen, 65K RGB colors, clear and colorful displaying effect
  • SPI interface, requires minimal IO pins
  • 4x user buttons for easy interacting
  • Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Specifications

OPERATING VOLTAGE
2.6 ~ 5.5V
RESOLUTION
320×240 pixels
COMMUNICATION INTERFACE
4-wire SPI
DISPLAY SIZE
40.80 × 30.60mm
DISPLAY PANEL
IPS
PIXEL SIZE
0.1275 × 0.1275mm
DRIVER
ST7789VW
DIMENSIONS
52.00 × 35.00mm

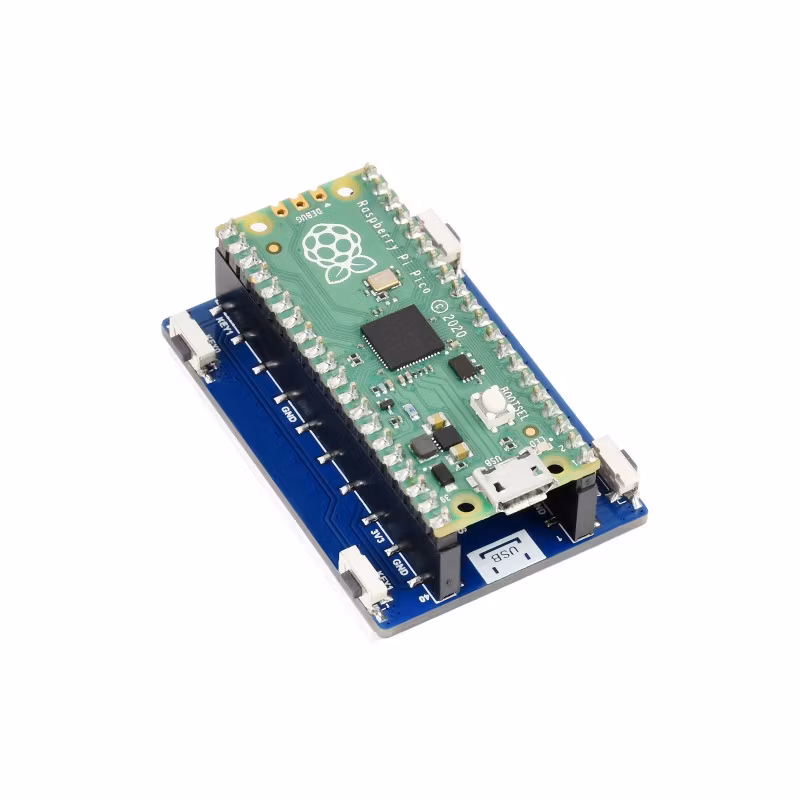

Raspberry Pi Pico Header Compatibility

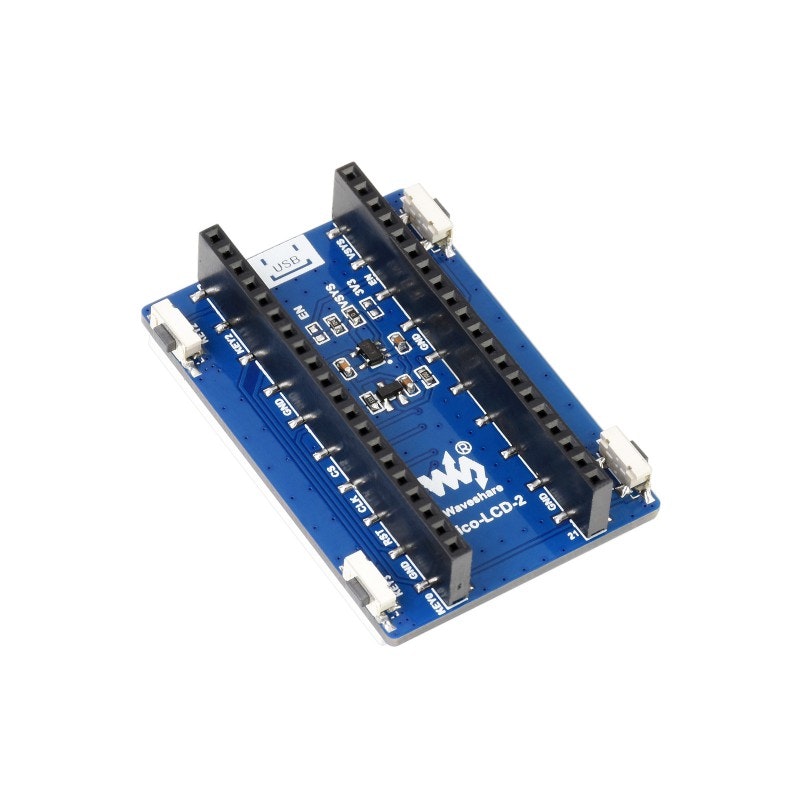

Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico
4x User Buttons For Easy Interacting

Raspberry Pi Pico is NOT included.

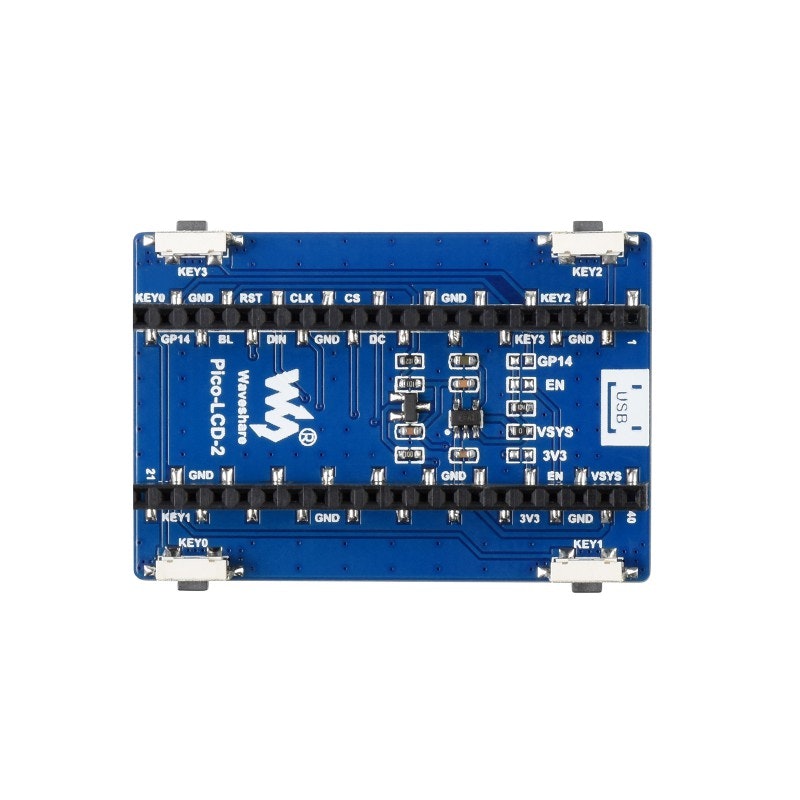

Pinout Definition

Outline Dimensions

WIKI: Pico-LCD-2

Shipping list

Weight: 0.017 kg

  1. Pico-LCD-2 x1
