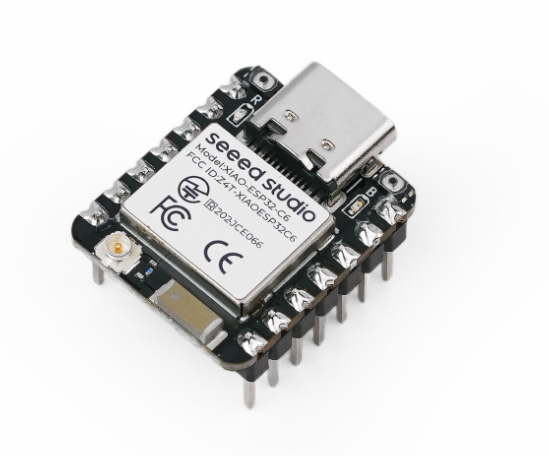

Seeed Studio XIAO ESP32C6 (Pre-Soldered)

The XIAO ESP32C6 is a pre-soldered, cost-effective microcontroller based on the powerful Espressif ESP32-C6 SoC. Designed with the compact XIAO Series footprint, it is ideal for space-constrained projects such as wearables and Matter-compliant smart home applications. Supporting multiple wireless protocols, including Wi-Fi 6, BLE 5.0, Zigbee, and Thread, this MCU offers unparalleled connectivity and security, making it perfect for modern IoT projects.

Key Features

1. Advanced Connectivity

   • Supports 2.4GHz Wi-Fi 6 (802.11ax), Bluetooth 5.0 (LE), and IEEE 802.15.4 for Thread and Zigbee.
   • Ideal for building Matter-compliant smart home solutions.

2. High Security

   • Encrypted on-chip with Secure Boot, Trusted Execution Environment (TEE), and data encryption.

3. Superior RF Performance

   • Features an onboard antenna with an 80m BLE/Wi-Fi range.
   • Includes a UFL connector for external antenna support.

4. Low Power Consumption

   • Four operating modes with a deep sleep mode as low as 15 μA.
   • Includes lithium battery charge management.

5. Dual RISC-V Processors

   • Equipped with two 32-bit RISC-V cores:
     • High-performance processor: 160 MHz
     • Low-power processor: 20 MHz

6. Classic XIAO Design

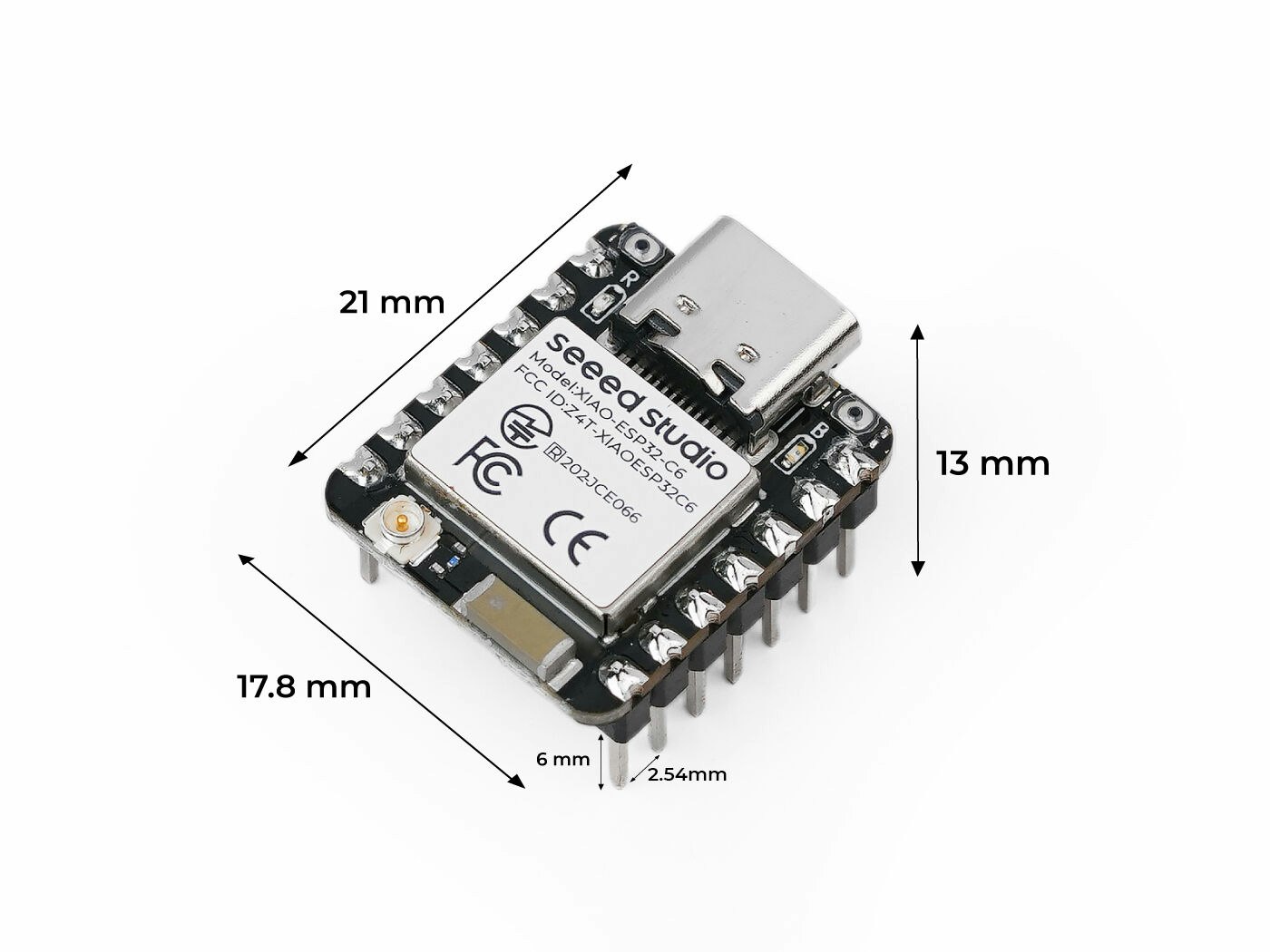

   • Compact form factor: 21 x 17.8mm.
   • Single-sided mount, optimized for space-constrained projects.

7. Seamless IoT Integration

   • Fully compatible with AWS IoT, Microsoft Azure, Google Cloud, and ESP Rain Maker.

Specifications

Applications

The XIAO ESP32C6 is perfect for projects that require:

• Compact design and multiple wireless connectivity options.
• Enhanced security for IoT devices.
• Integration with Matter-compliant smart home ecosystems.
• Low-power solutions for battery-driven applications.

Additional Resources

• Programming support for TinyML with visual programming tools like Codecraft.
• Active developer community available 24/7 on Discord (#tinyml channel).

The XIAO ESP32C6 is the 8th member of the Seeed Studio XIAO family, maintaining its classic thumb-size form factor while offering cutting-edge features for advanced IoT applications.

Hardware Overview

• Onboard

• PinOut

Application

Secure and Connected Smart Home, enhancing everyday life through automation, remote control, and more

Space-limited and Battery-Powered Wearables, thanks to their thumb-size and low-power consumption

Wireless IoT Scenarios, enabling rapid, reliable data transmission

ECCN/HTS

Part List
