Seeed Studio BeagleBone Green Wireless IOT Developer Prototyping Kit for Google Cloud Platform

1 999 kr


 1 999 kr

Built-in Wi-Fi and Bluetooth Low Energy(BLE)Built-in PRU real-time co-processorGrove connectors for agile prototyping No soldering or breadborading Onboard SD card slot Up to 65 digital I/Os and analog-to-digital converters

Since the advent of Internet of Things(IoT), developers all feel an urge to build a thing or two to introduce the IoT capabilities into their business or operating environment. Unfortunately, the lack of accessible hardware elements and reliable development platform has long been an issue.

Now none of these will come across your path as Seeed has worked with Google andBeagleBoard.org to bring you a perfect solution – an IoT developer prototyping kit for Google Cloud Platform. The kit collects various types of sensors and actuators that are seen being used in many internet-equipped devices. All the sensor and actuator modules feature in plug-and-play and are fully compatible with the new BeagbleBone Green Wireless Board, which is the fundamental element in this kit, it includes:

  • Built-in Wi-Fi and Bluetooth Low Energy(BLE) added on the original BeagleBone Green

  • A fully Open Hardware design as with previous

  • Two integrated Grove connectors for agile prototyping without any soldering or breadborading

  • Onboard SD card slot for storage extensions

  • Built-in PRU real-time co-processor that is well suited for certain industrial protocols

  • Up to 65 digital I/Os and analog-to-digital converters that are key for IoT prototyping situations

The kit also comes with a Grove base cape that can be attached directly onto the BeagleBone Board Green Wireless to provide you the real plug-and-play experiences with the Grove modules.

Technical details

Dimensions0mm x0mm x0mm
WeightG.W 251g
BatteryExclude

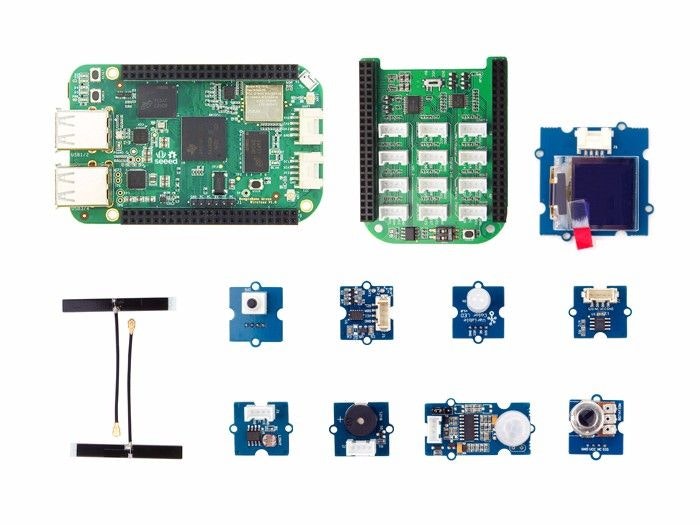

Part List

BeagleBone Green Wireless1
Grove Base Cape for Beaglebone v2.01
Grove –3 Axis Digital Acceleroeter(±16g) v1.21
Grove – Temperature Sensor v1.11
Grove – Rotary Angle Sensor(P)1
Grove – Light Sensor1
Grove – PIR Motion Sensor1
Grove – Button(P)1
Grove – Buzzer1
Grove – Variable Color LED1
Grove – OLED 96x96 v2.11
Grove Cables – 20cm9
Type A to Micro B USB Cable – 20cm (included in the BeagbleBone Green Wireless package)1
