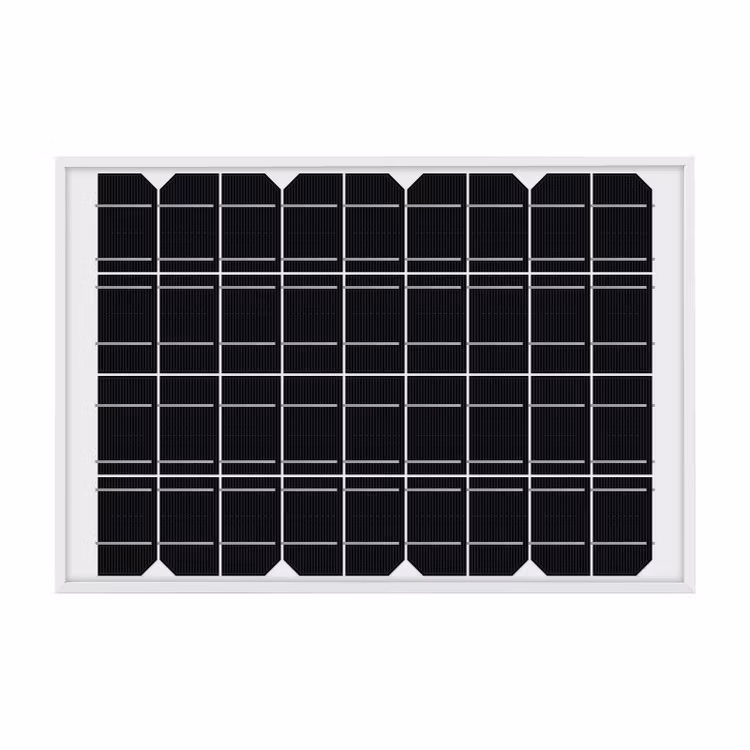

Polysilicon Solar Panel (18V 10W), High Conversion Efficiency

  • 299 kr
  • 269 kr

Polysilicon Solar Panel (18V 10W), 10Wp Power Photovoltaic Panel, High Conversion Efficiency.Click here to buy Power manager. SpecificationsOTHERSKEY SPECI

I lager.
Artikelnummer: 996
Dela
  • Information

Polysilicon Solar Panel (18V 10W), 10Wp Power Photovoltaic Panel, High Conversion Efficiency.

Click here to buy Power manager.



Specifications

OTHERS
KEY SPECIFICATIONS
Solar cell type
polysilicon
Power
10 Wp (Max)
Output power tolerance
±3%
Conversion efficiency
>20%
Operating voltage
17.6 V
Operating current
0.57 A
Open circuit voltage
21.6 V
Short circuit current
0.61 A
Cell quantity
36 (4×9)
Standard system voltage
1000 V (Max)
Operating temperature
-40℃ ～ +85℃
Pressure on panel
30m/s(200kg/sq.m) (Max)
Cable length
90 cm
Frame material
anodic oxidation aluminum alloy
Dimensions
340 × 232 × 17 mm
Weight
0.935 kg

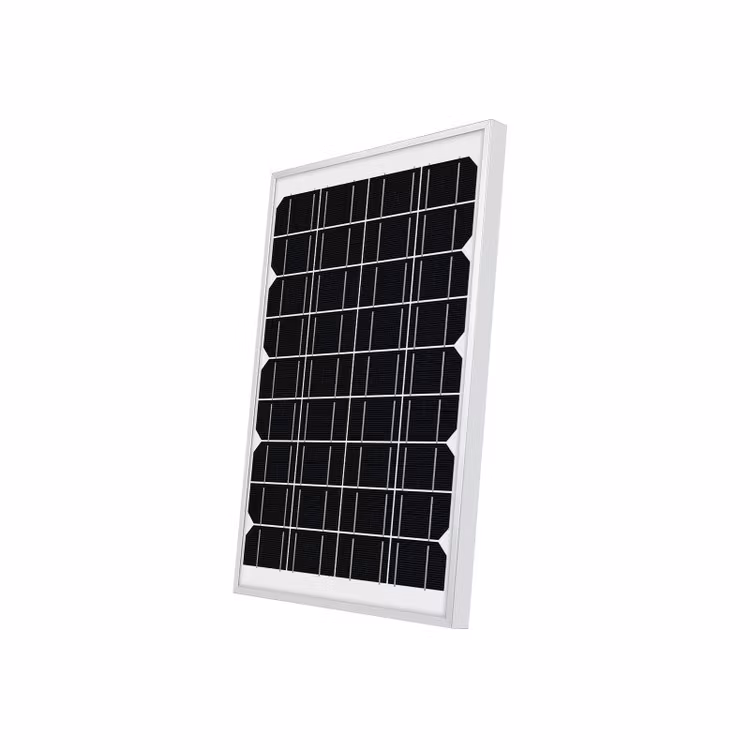

Conversion Efficiency > 20%

Polysilicon Solar Panel, Widened Chips, Larger Receiving Area, Capturing Trivial Source

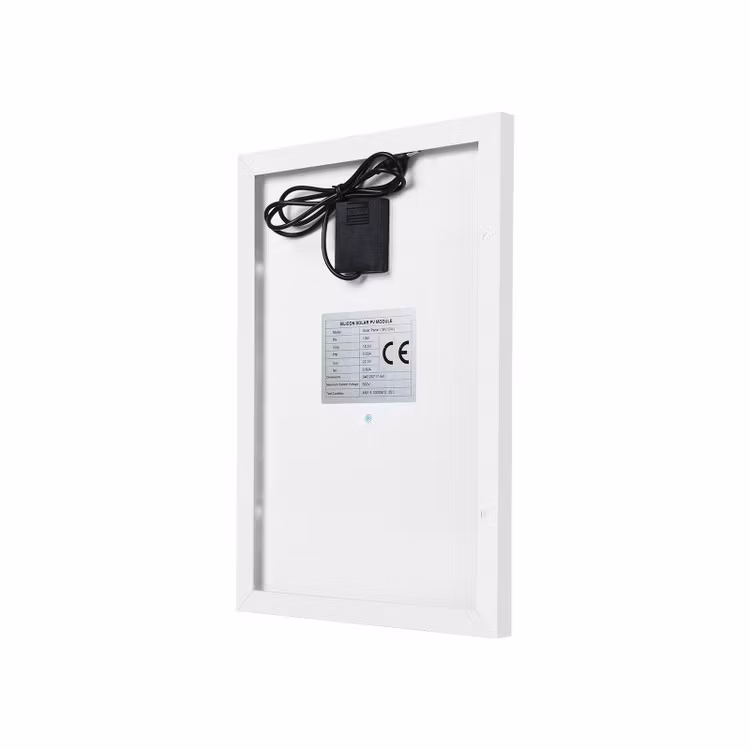

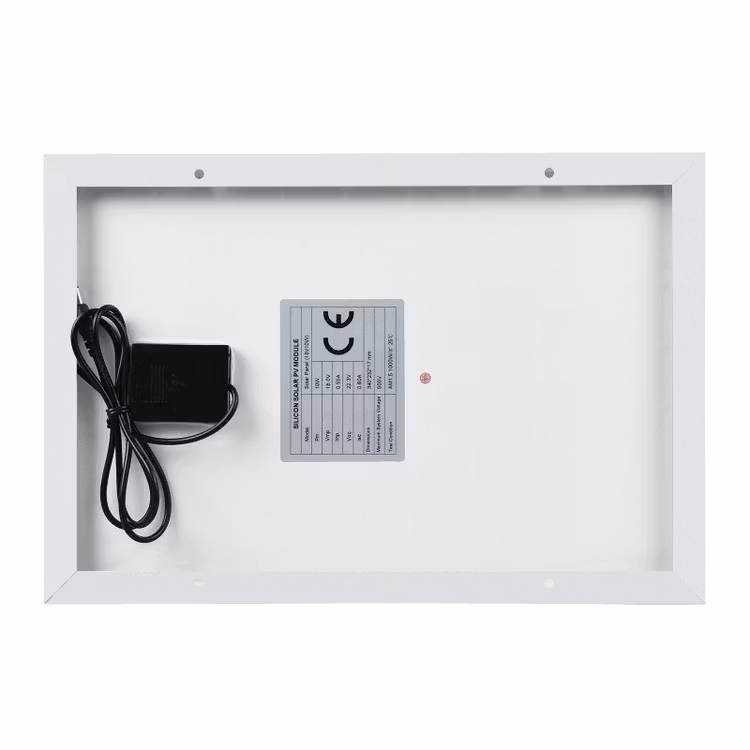

High Strength Frame

Anodic Oxidation Aluminum Alloy Material, Multi Layers Structure, Waterproof And Durable

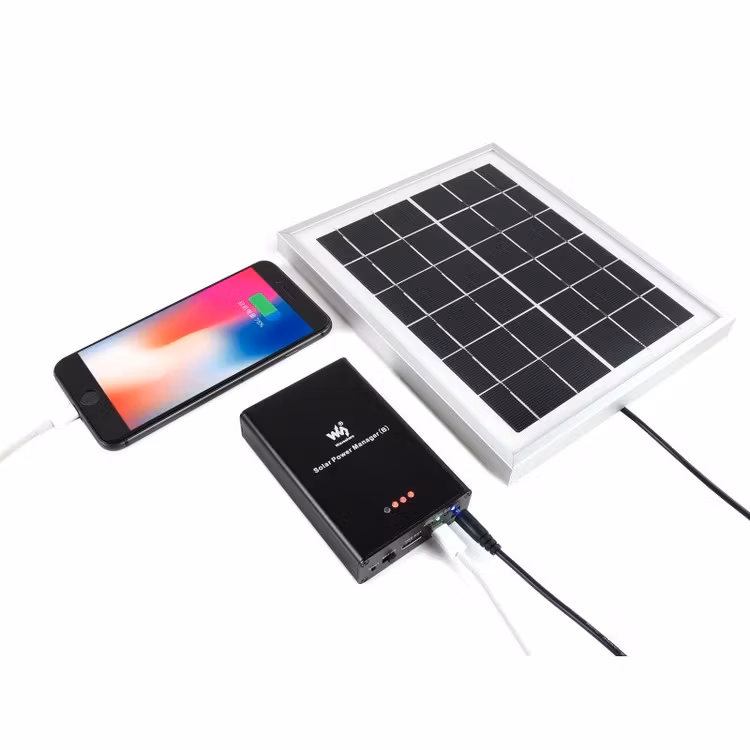

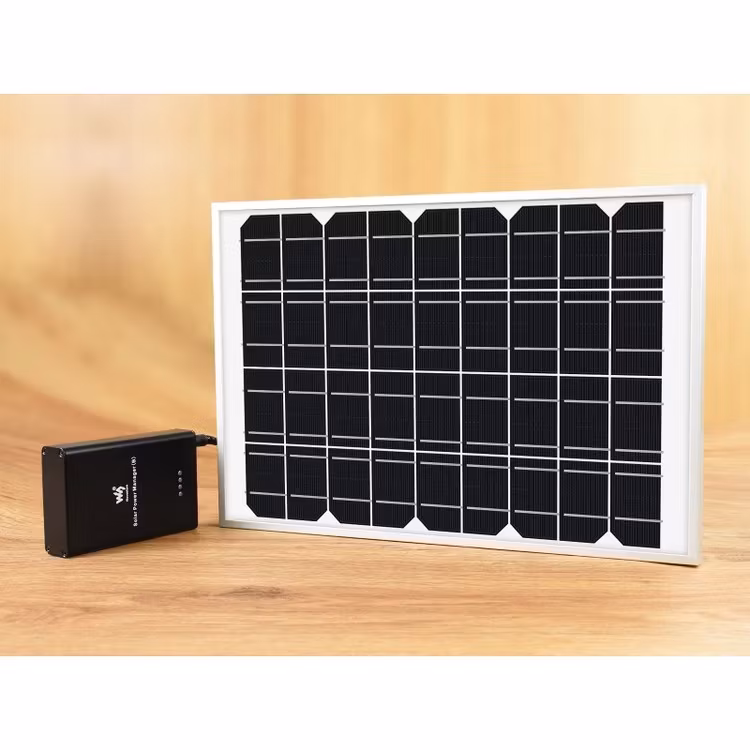

Application Example



for reference ONLY, the Raspberry Pi, display, solar power manager are NOT included.

Outline Dimensions

* measured manually, for reference ONLY

Resources & Services

Wiki: Solar_Panel_(18V_10W)

Shipping list

Alternative 1

Weight: 0.935 kg

  1. Solar Panel (18V 10W) x1

Alternative 2

Weight: 0.935 kg

  1. Solar Panel (18V 10W) x1

Weight: 0.29 kg

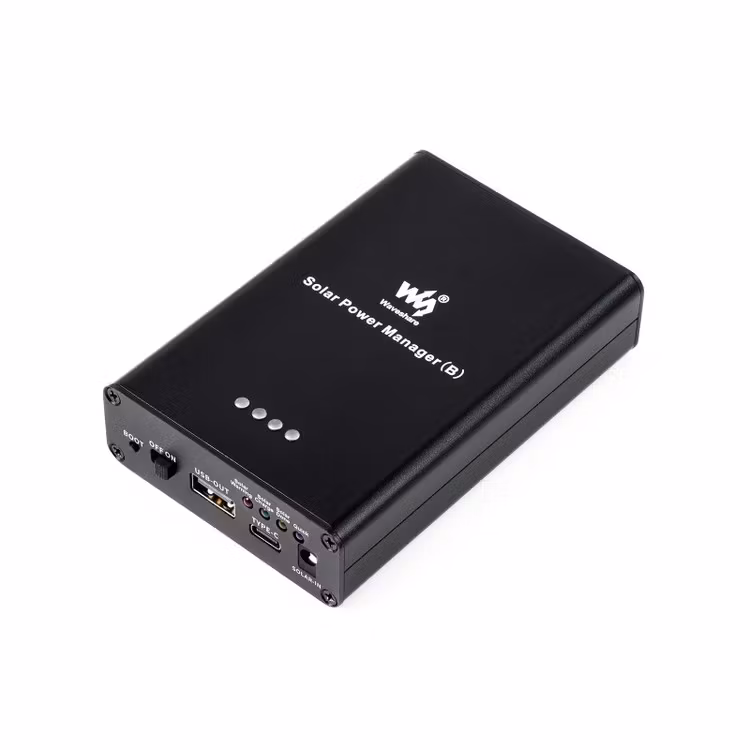

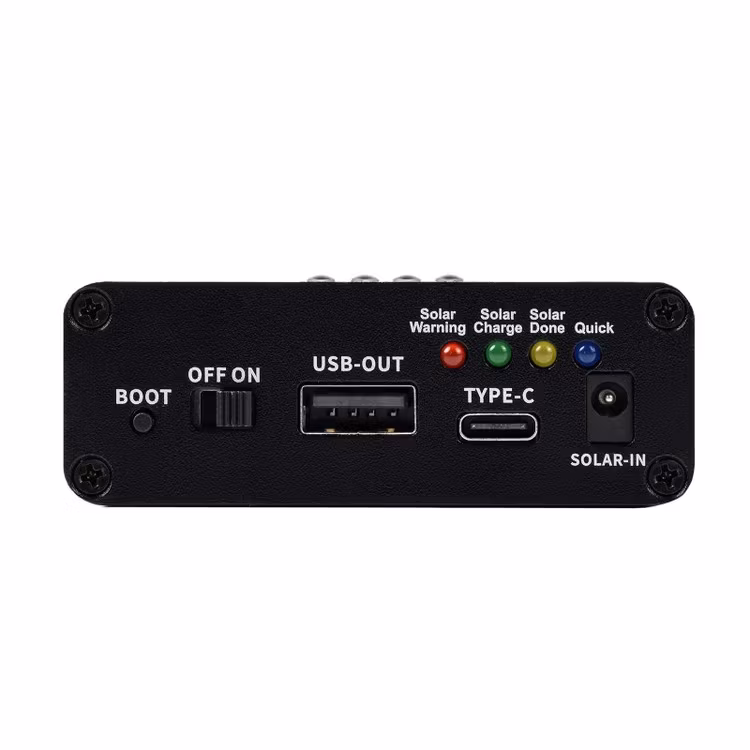

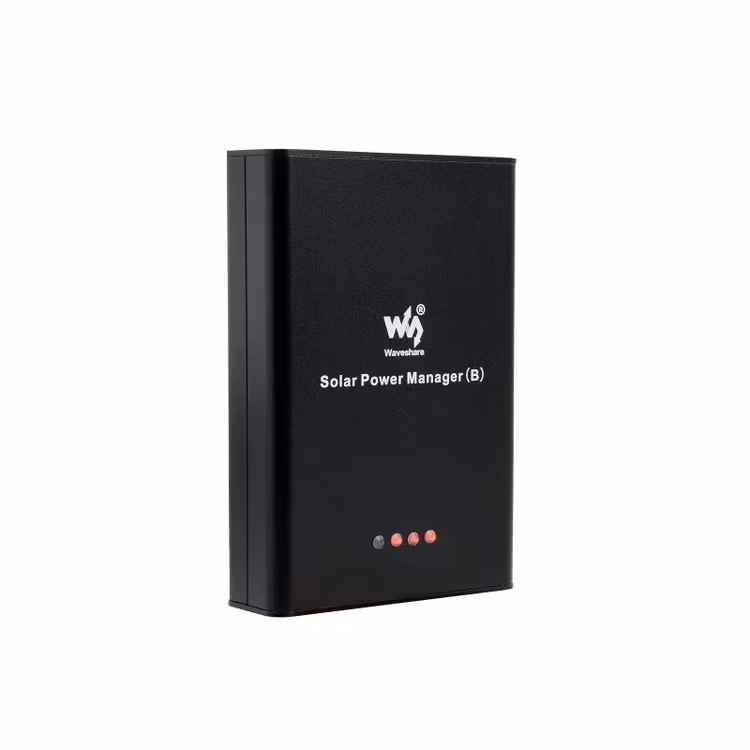

2. Solar Power Manager (B) x1

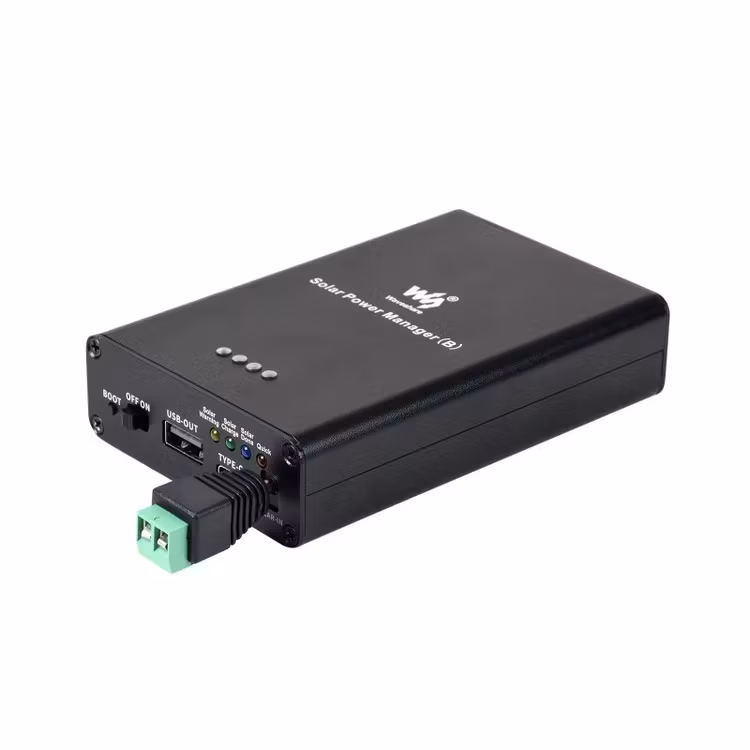

3. Adapter x1
