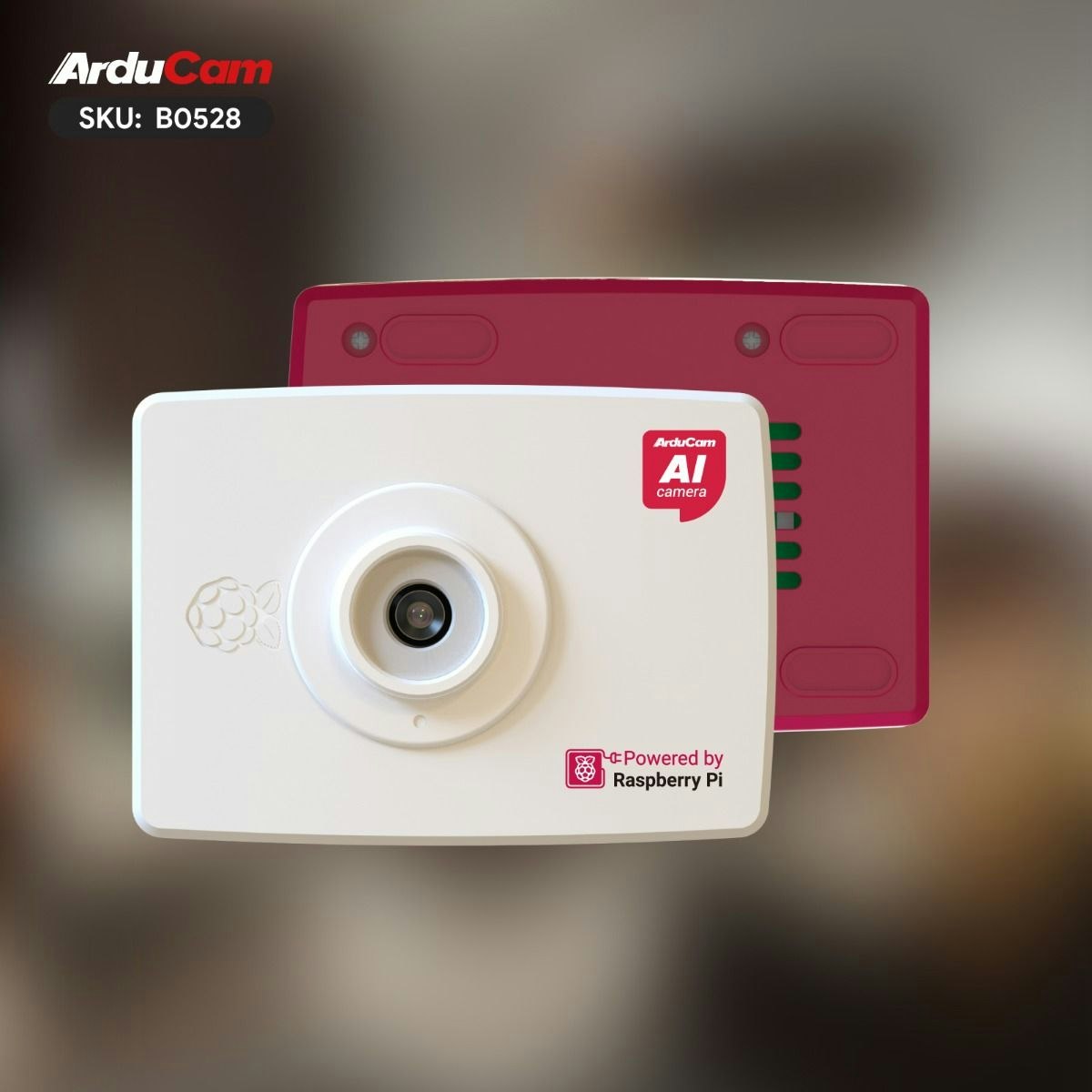

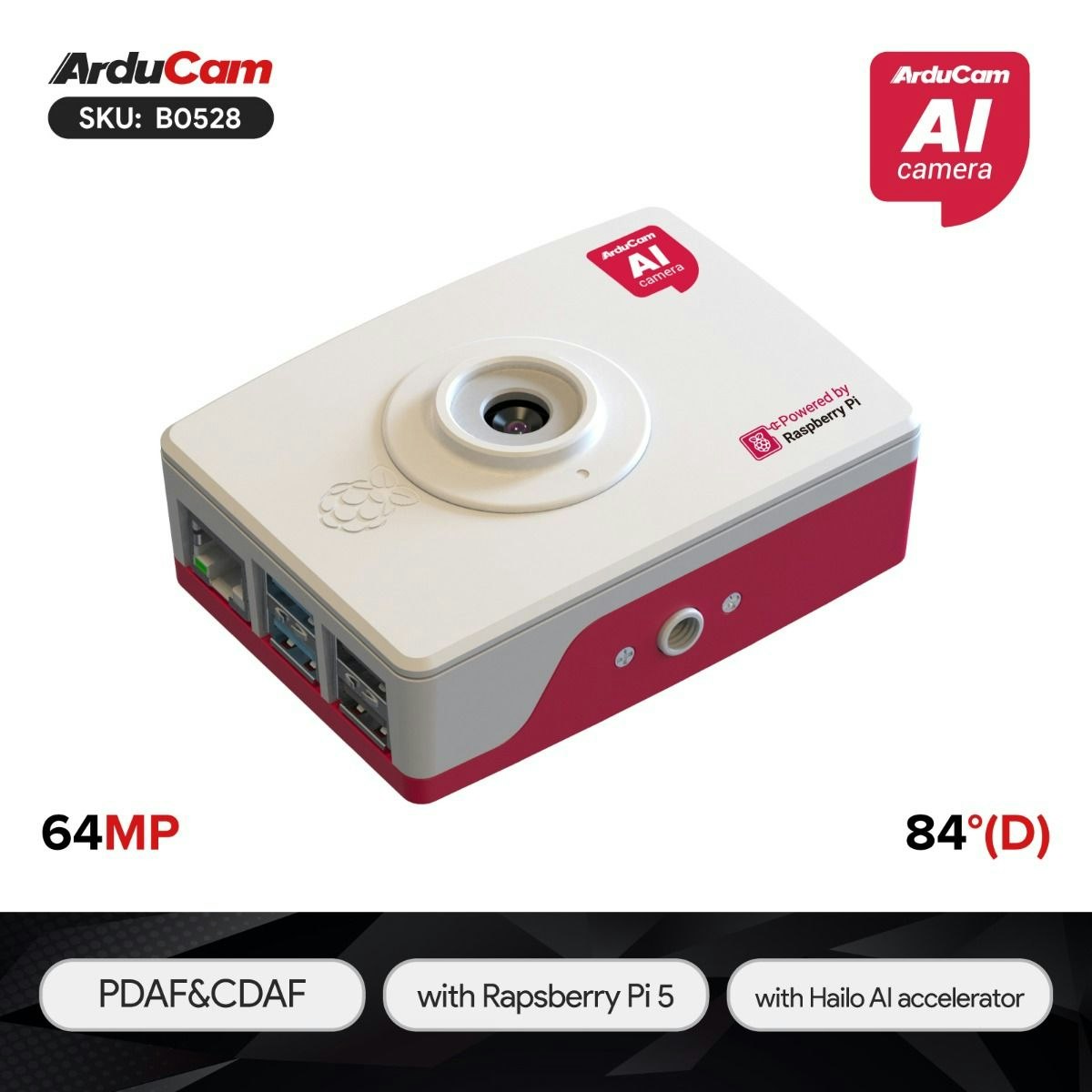

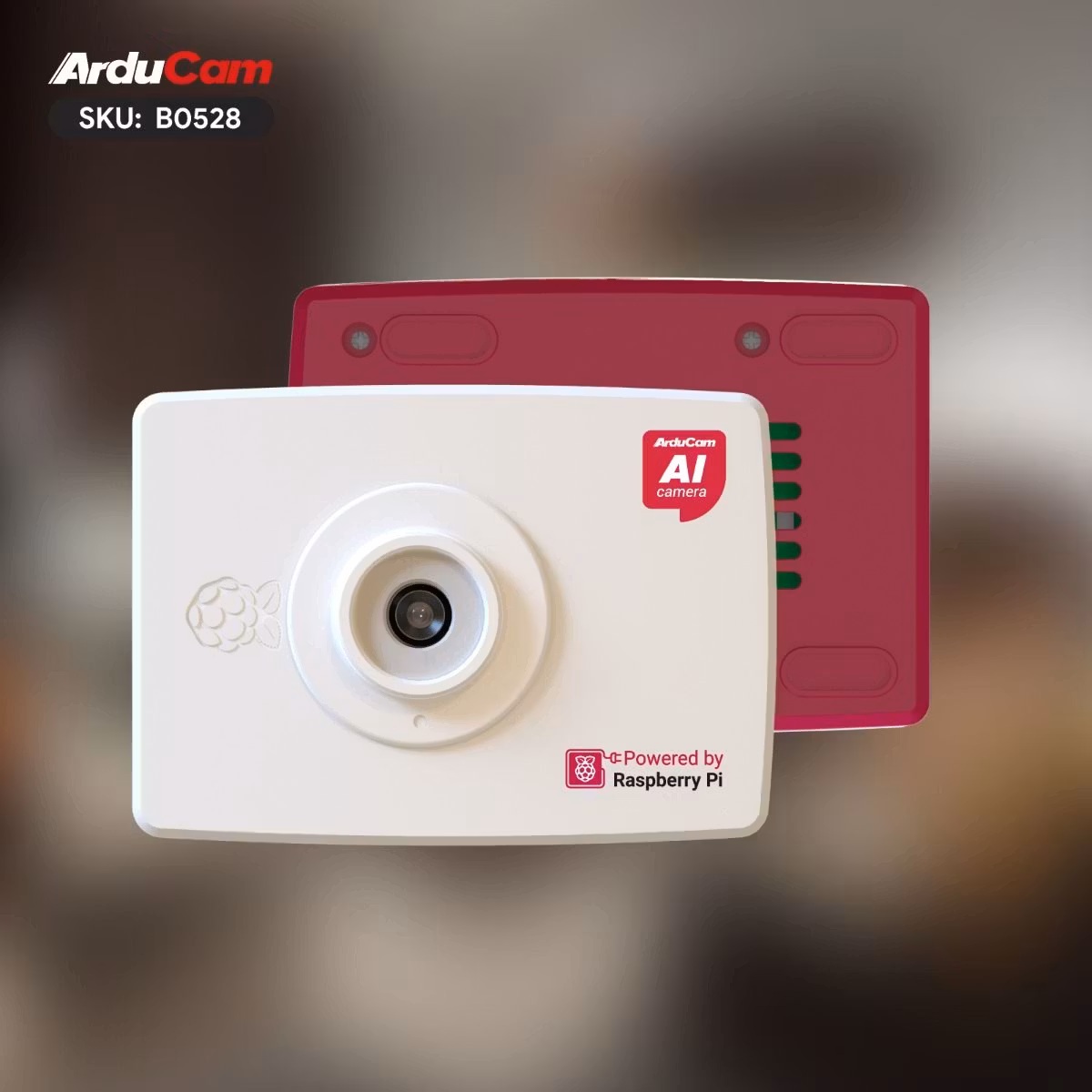

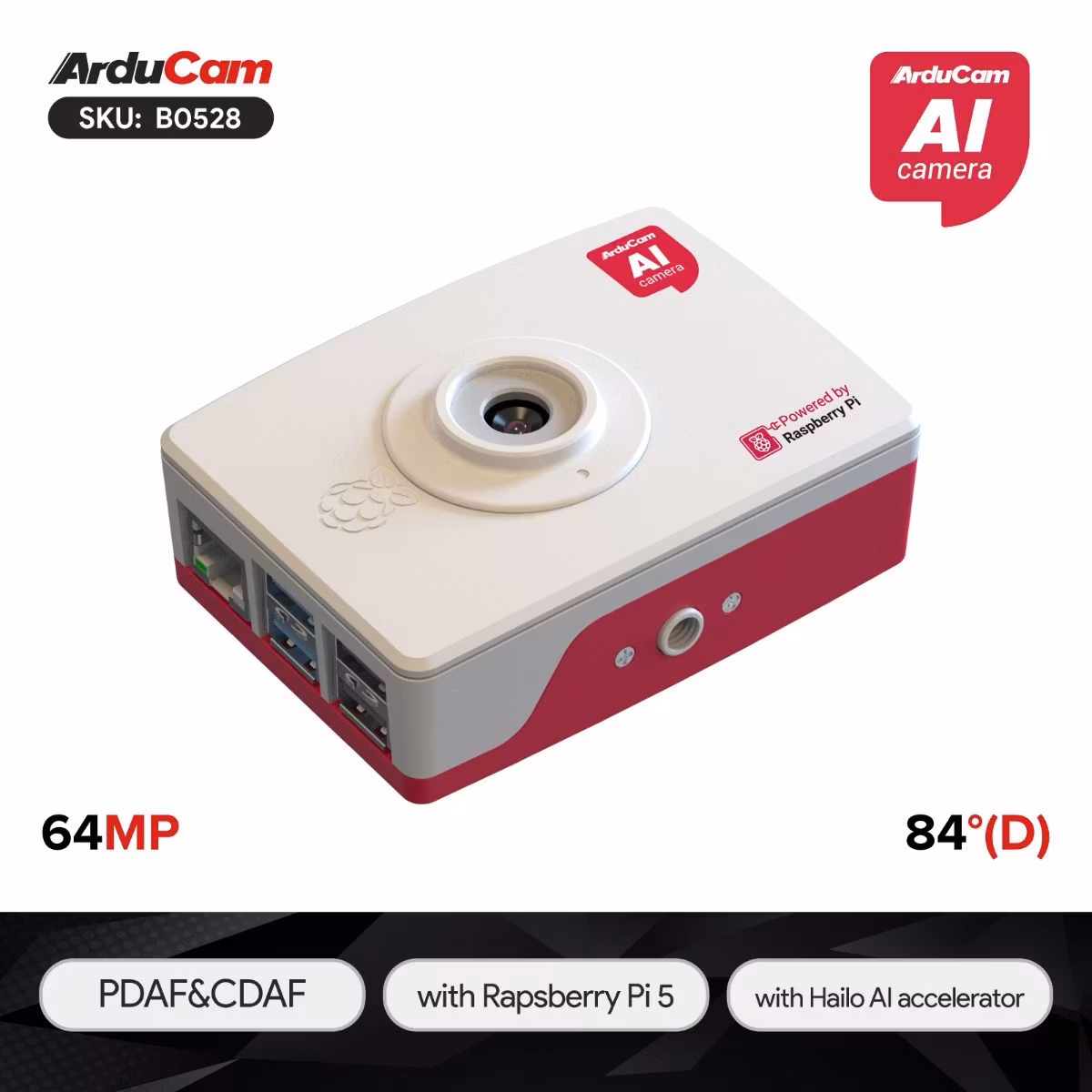

Arducam Pivistation 5 AI Camera 64MP Pro All-in-one Raspberry Pi 5 AI Camera Kit

  • 4 499 kr

The Arducam AI Camera Kit features a powerful combination of a Raspberry Pi 5, a 64MP Hawkeye camera, and the Hailo-8L AI accelerator. This all-in-one package i

I lager.
Artikelnummer: 1339
Dela
  • Information

The Arducam AI Camera Kit features a powerful combination of a Raspberry Pi 5, a 64MP Hawkeye camera, and the Hailo-8L AI accelerator. This all-in-one package includes a 32GB SD card, case, cooling fan, and tripod mount for easy setup and optimal performance.

  • Estimated shipping time: mid-October 2024

This kit provides exceptional performance with its 13 TOPS AI engine and 64MP camera equipped with PDAF & CDAF, ensuring fast and clear results. Pre-installed with TensorFlow, TensorFlow Lite, PyTorch, and ONNX, it includes comprehensive sample demos to get you started immediately.

Perfect for rapid Proof of Concept (PoC), research, and various embedded vision projects, the Arducam AI Camera Kit offers versatile applications. It's an ideal solution for developers and researchers looking to integrate high-performance AI into their projects.

Applications

  • Face Recognition
  • Fatigue Detection
  • Object Recognition
  • Anomaly Detection
  • Machine Vision

Features

  • Comprehensive AI Camera Solution: Includes Raspberry Pi 5, 64MP Hawkeye, and Hailo AI accelerator modules for high-performance AI and intelligent image processing.
  • Powerful AI Performance: 13 TOPS neural network inference engine with Hailo-8L chip for real-time, low-latency AI, integrated with Raspberry Pi's camera software stack.

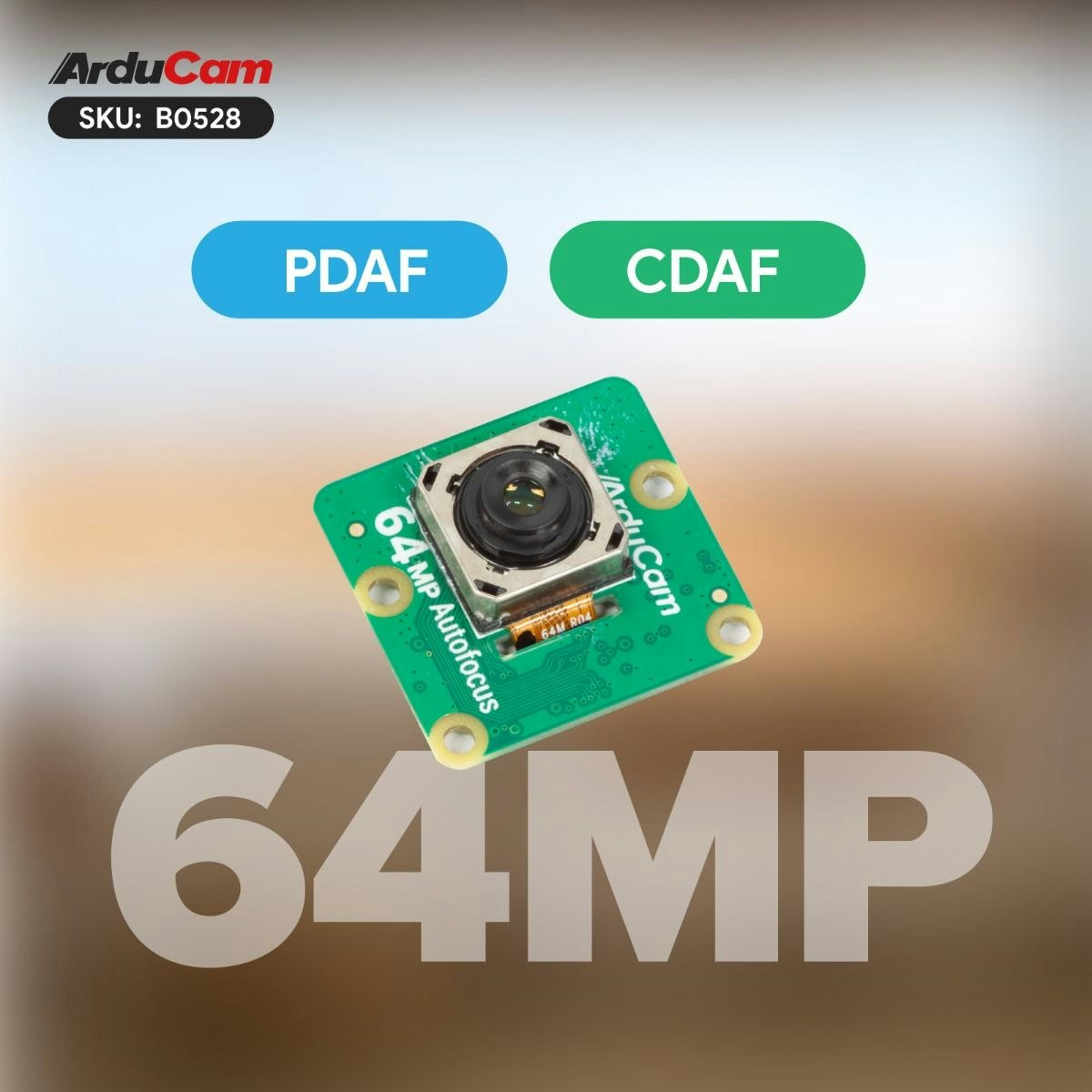

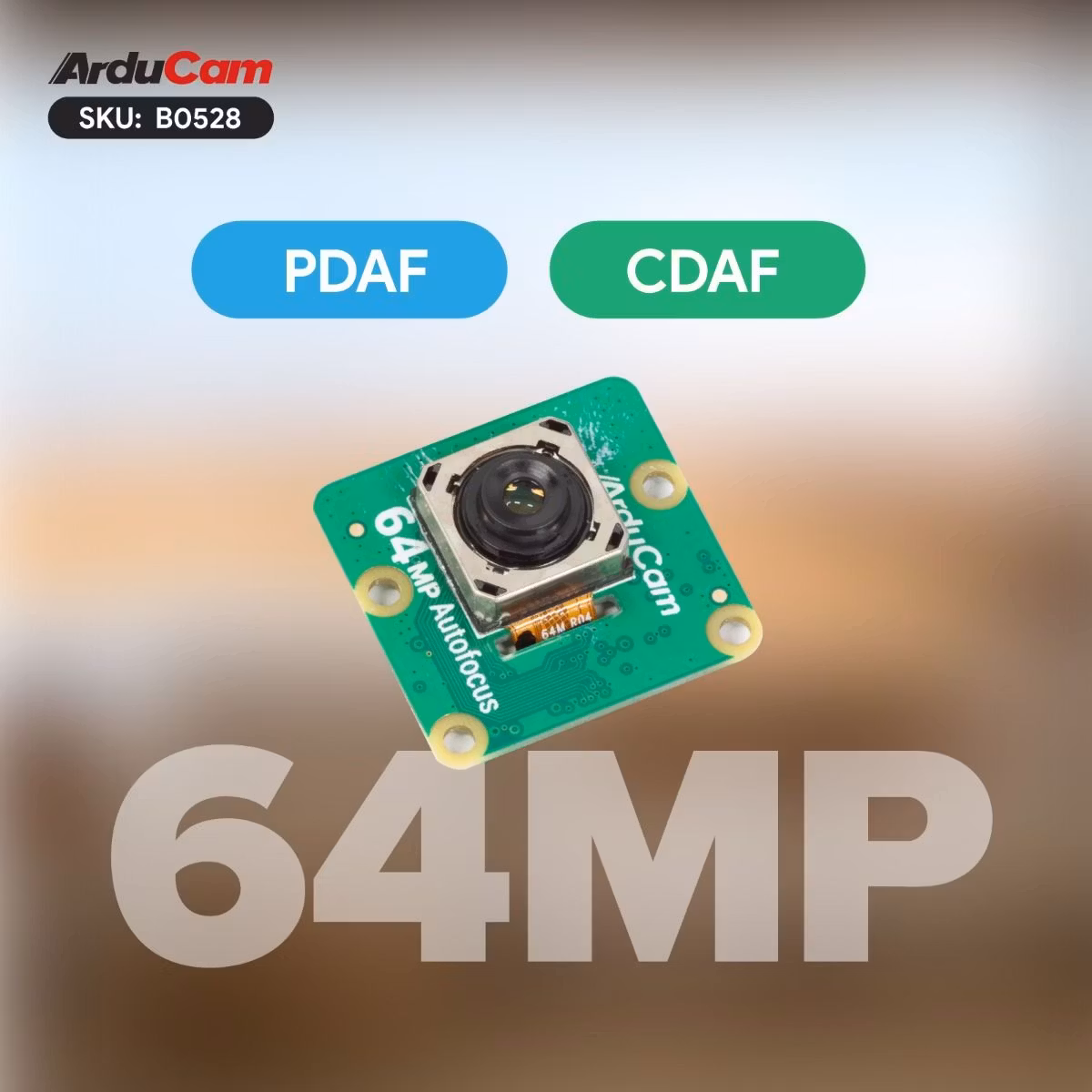

  • High-Resolution Imaging: 64MP Hawkeye sensor with PDAF and CDAF autofocus and 10x zoom for sharp, clear images.
  • Pre-installed software: OpenCV-Python, TensorFlow, PyTorch, with sample demos for object detection, image segmentation, and pose estimation.
  • Complete Setup: Includes Raspberry Pi 5 (4GB), 32GB SD card, case, and cooling fan, ideal for AI integration in various projects, especially in education and robotics.


Specifications

Image Sensor
Image SensorSONY 1/1.7"
Still Resolution64 MP
Color Filter TypeColor
Shutter TypeRolling shutter
Optical Size1/1.7 inch
Output FormatJPEG/YUV/RGB/RAW10
Pixel Size0.8 μm×0.8 μm
Sensor Active Area9152(H) × 6944(V)
Frame Rate1080p30,720p60 and 640×480p60/90
Video Modes (Camera Module)9152×6944@2fps, 8000×[email protected], 4624×[email protected], 3840×[email protected], 2312×[email protected], 1920×1080@45fps
Lens
Lens MountStock lens
Focus TypePDAF + CDAF

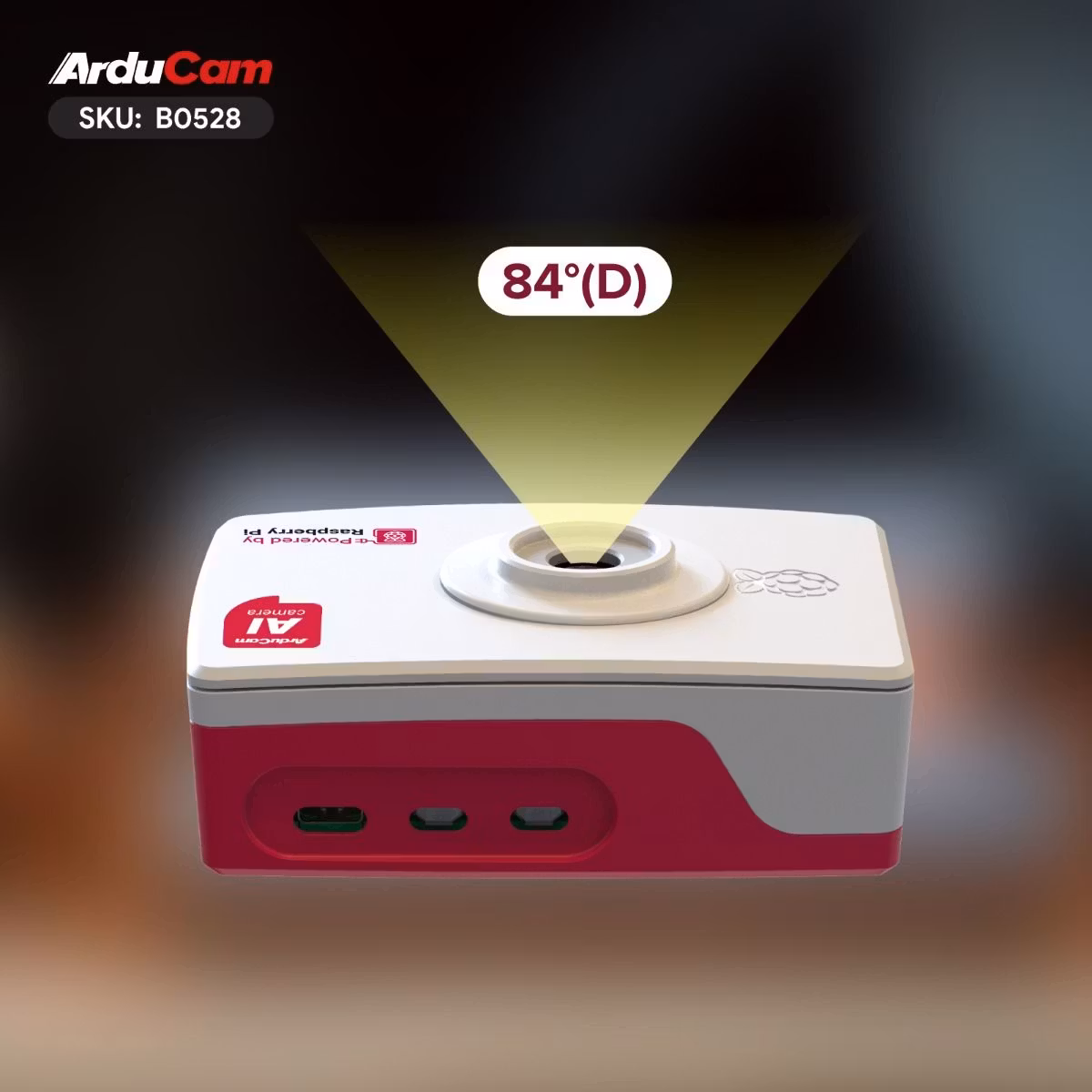

FOV84°(D)
F.NOF1.8
E.F.L5.1mm
Default Focus Range8cm-∞
IR SensitivityIntegral IR-cut Filter, visible light only
Electrical and Mechanical
Operating Voltage5 V +/- 5%
Operating Temp.32°F-158°F (0°C to 70°C)
Power Requirements7.5W
Camera Board Size24×25mm
Overall Size99×70×37 mm
Functionality and Compatibility
Supported OSBookworm
Pre-installed Softwarehailo-all rpicam-apps-hailo-postprocess opencv-python, libopencv-dev (C++ version) libcamera, rpicam-apps C++ essential tools (building environment) TensorFlow (Python)/ PyTorch camera-streamer, arducacm camera server
Supported PlatformRaspberry Pi 5

Package Including

  • 1 x Arducam Pivistation 5 AI Camera Kit

Notes

  • Tripod is not included in the package, please check UB0216 for additional purchase.
  • This product kit includes the Raspberry Pi 5 with 4GB of RAM and a 32GB SD card preloaded with OS and software. It is recommended to use only this platform.
  • For optimal performance, we suggest using the official Raspberry Pi 27W power supply.
