3.5inch RPi LCD,480x320

  • 325 kr

3.5inch HDMI LCD, 480x320, IPSTouch Screen IPS TFT LCD Designed for Raspberry Pi. Features480x320 hardware resolutionResistive touch controlSupports any re

Produkten är tyvärr slut i lager. :(

Artikelnummer: 69
Dela
  • Information

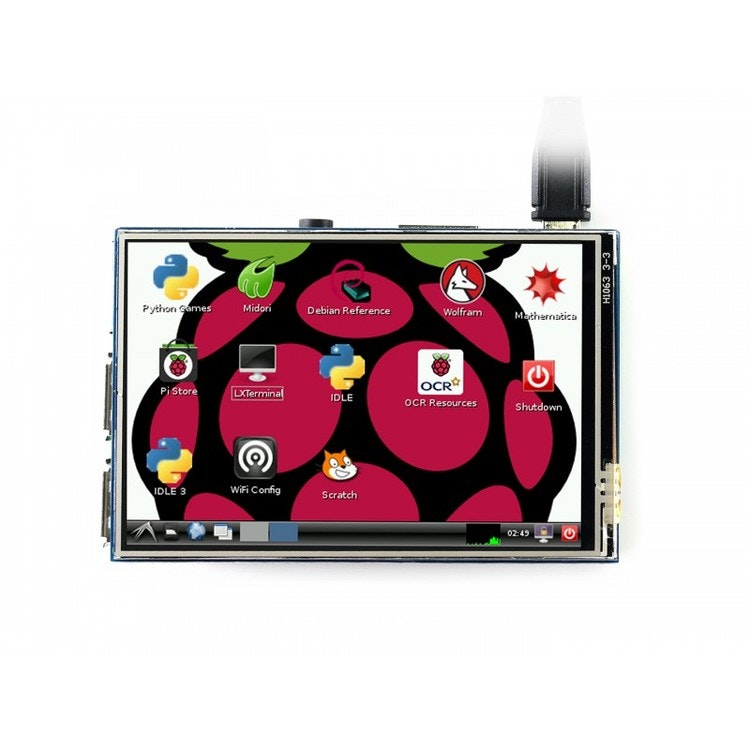

3.5inch HDMI LCD, 480x320, IPSTouch Screen IPS TFT LCD Designed for Raspberry Pi.

Features

  • 480x320 hardware resolution
  • Resistive touch control
  • Supports any revision of Raspberry Pi (directly-pluggable)
  • Drivers provided (works with your own Raspbian/Ubuntu/Kali)
  • Supports FBCP software driver as well, allows to config software resolution and set up dual-display
  • IPS technology, high quality and perfect displaying from very wide viewing angle
  • Size perfectly fits the Pi (Raspberry Pi B+/2B/3B/3B+)
  • High quality immersion gold surface plating
  • Combined with the Raspberry Pi, allows you to:
    • Take photos by touching (up to 17 camera modes)
    • Use a software keyboard (system interaction without keyboard/mouse)

    Key parameter

    LCD TYPE
    		IPS
    LCD INTERFACE
    		SPI
    TOUCH SCREEN TYPE
    		Resistive
    TOUCH SCREEN CONTROLLER
    		XPT2046
    COLORS
    		65536
    BACKLIGHT
    		LED
    RESOLUTION
    		320*480 (Pixel)
    ASPECT RATIO
    		0,336805556
    POWER CONSUMPTION
    		TBD
    BACKLIGHT CURRENT
    		TBD
    OPERATING TEMP. (℃)
    		TBD


Interface

PIN NO.
SYMBOL
DESCRIPTION
1, 17
3.3V
Power positive (3.3V power input)
2, 4
5V
Power positive (5V power input)
3, 5, 7, 8, 10, 12, 13, 15, 16
NC
NC
6, 9, 14, 20, 25
GND
Ground
11
TP_IRQ
Touch Panel interrupt, low level while the Touch Panel detects touching
18
LCD_RS
Instruction/Data Register selection
19
LCD_SI / TP_SI
SPI data input of LCD/Touch Panel
21
TP_SO
SPI data output of Touch Panel
22
RST
Reset
23
LCD_SCK / TP_SCK
SPI clock of LCD/Touch Panel
24
LCD_CS
LCD chip selection, low active
26
TP_CS
Touch Panel chip selection, low active


This is type C that is TFT display with 125MHz High-Speed SPI.

3.5inch Resistive Touch Display (C) for Raspberry Pi, 480×320, 125MHz High-Speed SPI

A type 480x320, 3.5 Inch Touch Screen TFT LCD Designed For Raspberry Pi

Features

  • 480x320 hardware resolution
  • Resistive touch control
  • Supports any revision of Raspberry Pi (directly-pluggable)
  • Drivers provided (works with your own Raspbian/Ubuntu/Kali)
  • Supports FBCP software driver as well, allows to config software resolution and set up dual-display
  • Size perfectly fits the Pi (Raspberry Pi B+/2B/3B/3B+)
  • High quality immersion gold surface plating
  • Combined with the Raspberry Pi, allows you to:
    • Take photos by touching (up to 17 camera modes)
    • Use software keyboard (system interaction without keyboard/mouse)

Key Parameters

LCD TYPE
TFT
LCD INTERFACE
SPI
TOUCH SCREEN TYPE
Resistive
TOUCH SCREEN CONTROLLER
XPT2046
COLORS
65536
BACKLIGHT
LED
RESOLUTION
320*480 (Pixel)
ASPECT RATIO
8:5
POWER CONSUMPTION
TBD
BACKLIGHT CURRENT
TBD
OPERATING TEMP. (℃)
TBD

Development Resources

Wiki: www.waveshare.com/wiki/3.5inch_RPi_LCD_(B)

Wiki: www.waveshare.com/wiki/3.5inch_RPi_LCD_(C)

Shipping list

Weight: 0.056 kg

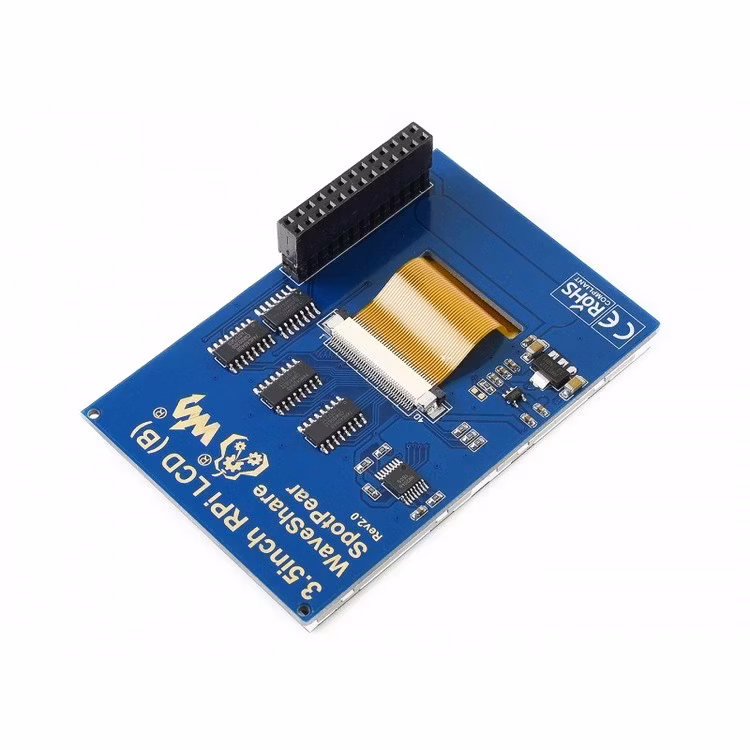

  1. 3.5inch RPi LCD (B) x1
  2. Touch pen x1
  3. RPi screws pack (2pcs) x1
  4. Quick start sheet x1

eller

Weight: 0.039 kg

  1. 3.5inch RPi LCD (C) x1
  2. Touch pen x1
  3. RPi screws pack (2pcs) x1
  4. Quick start sheet x1

Weight: 0.056 kg

  1. 3.5inch RPi LCD (A) x 1
  2. Touch pen x 1
  3. RPi screws pack (2pcs) x 1
  4. Quick start sheet x1

1

2

3

4

FAQ

Why the LCD doesn't work with my Raspbian?
To use the LCD with the Raspberry Pi official image, driver should be installed first. Please refer to the user manual.
However, for the first testing, you may want to use our provided image directly.
Why the LCD still doesn't work with the Waveshare provided image?
Make sure the hardware connection is correct and connects fine.
Make sure the image in TF card is burnt correctly.
The PWR will keep on and the ACT will keep blinking when the Raspberry Pi starts up successfully, in case both of the two LEDs keep on, it is possible that the image was burnt incorrectly OR the TF card was in bad contact.
Which power supply should I use?
It is recommended to use a 5V/3A power adapter for the Raspberry Pi other than USB connection, otherwise, the Pi may fail to start up because the PC's USB port might have not enough power.
For large size LCDs, say, 10inch diagonal or more, another stand-alone power adapter is also required to provide power to the LCD.

For more info, please check the wiki page.

3.5" Touch Display For Raspberry Pi

  • Size3.5"
  • Resolution480×320
  • Display PortSPI
  • Display PanelIPS
  • Viewing Angle160°
  • Touch TypeResistive
  • Touch PortSPI
  • ConsumptionLower Power

Device & System Support



Raspberry Pi

Supports Raspbian / Ubuntu MATE* / Kali / Retropie, driver provided
Supports FBCP software driver, allows setting software resolution and dual-display

Supports all versions of Raspberry Pi

* Ubuntu MATE on Pi 4B is not available now, until the official image is released

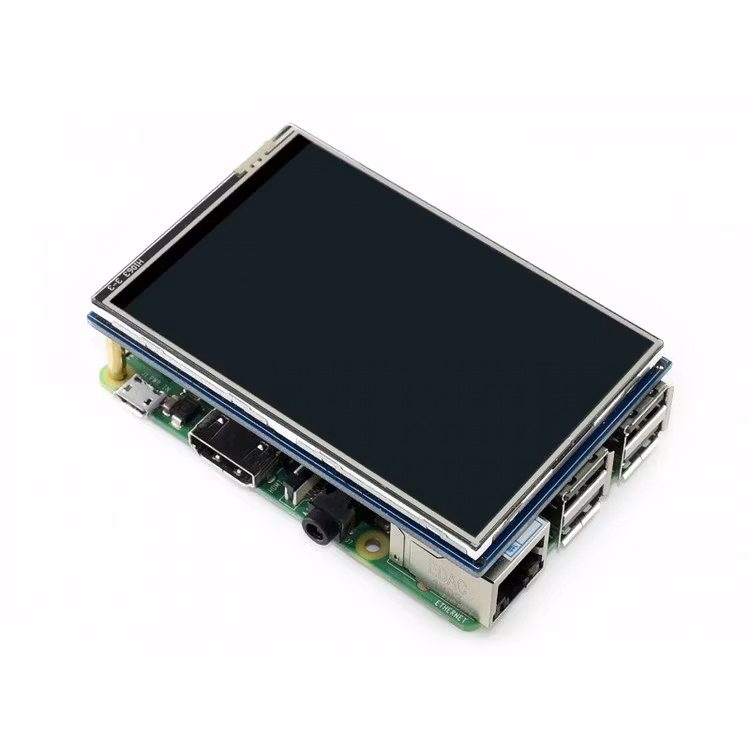

Connection Examples

Working With Raspberry Pi 4

Working With Raspberry Pi 3B+

Working With Raspberry Pi Zero W

Display

IPS Panel
FBCP Software Driver Support
Allows Setting Software Resolution And Dual-Display (About 50Hz Refresh Rate)

Touch Control

Comes With Stylus

Appearance And Dimensions
